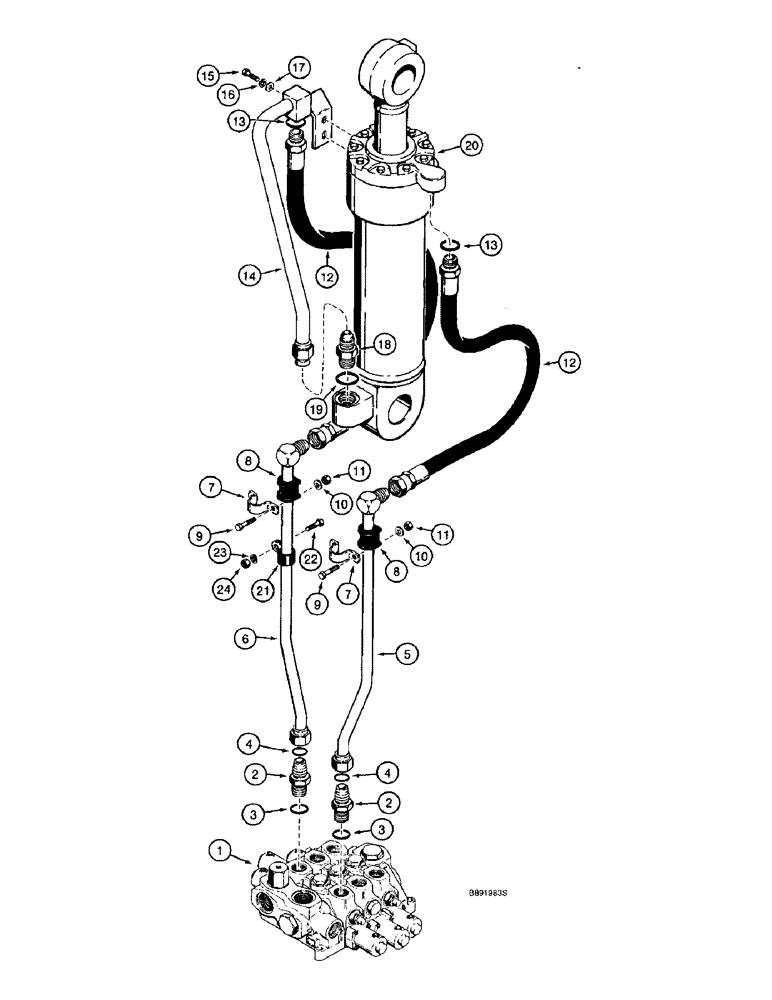

Запчасти Case 821B (8-14) - HYDRAULIC CIRCUIT, LOADER BUCKET (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, see Figs. 8-22 through 8-26 for correct valve assembly and components

1шт.

2

L124289

CONNECTOR, ELEC

ADAPTER - straight, special, includes: Ref. 3 and 4

2шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

Flare end -024, 90 Duro, 1.114" ID x .070" Thk

1шт.

5

L125373

TUBE,31.75 mm OD x 903, 86 mm L

- supply, right-hand

1шт.

6

L125371

TUBE,31.75 mm OD x 918, 152 mm L

- supply, left-hand

1шт.

7

L124293

MOUNTING CLIP

CLAMP - tilt cylinder

2шт.

8

D67298

INSULATOR

- rubber

2шт.

9

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

4шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

11

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

12

L125369

HOSE,25.4mm ID x 1360mm L, SAE 100R12

- 1360 mm (53-1/2 inch) long, cylinder, includes: Ref. 13

2шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

14

L125365

PIPE,31.75 mm OD x 751, 221 mm L

TUBE - bucket cylinder

1шт.

15

426-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 8

- hex, 1/2 NC x 1-1/8 inch, grade 8

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

17

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

18

218-5041

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-7/8-12 inch O-ring boss, includes: Ref. 19

1шт.

19

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

20

1980385C3

CYLINDER ASSY.

CYLINDER ASSEMBLY - 178 (7) ID x 579 mm (22-3/4 inch) stroke, parts list Fig. 8-48

1шт.

21

D34033

CLAMP

- P-type, 1-3/16 inch ID, lower left-hand

1шт.

22

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

425-106

NUT,3/8"-16, Cl 5

1шт.
