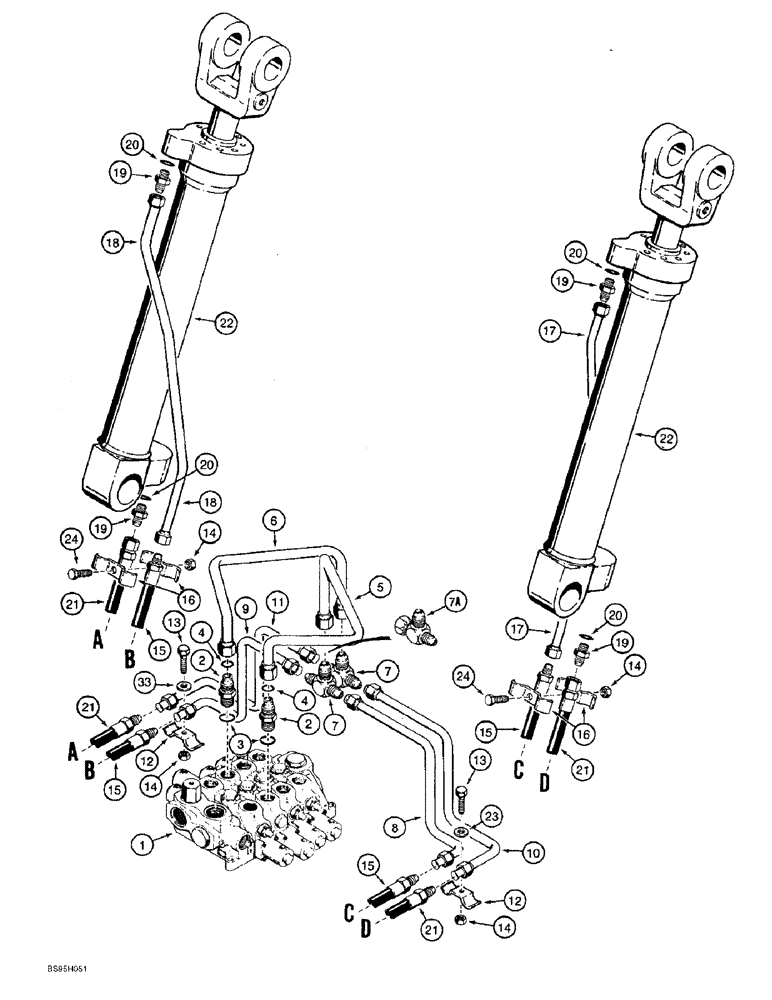

Запчасти Case 821B (8-12) - HYDRAULIC CIRCUIT, LOADER LIFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, see Figs. 8-22 through 8-26 for correct valve assembly and components

1шт.

2

L124289

CONNECTOR, ELEC

ADAPTER - straight, special, includes: Ref. 3 and 4

2шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

Flare end -024, 90 Duro, 1.114" ID x .070" Thk

1шт.

5

L125377

PIPE,31.75 mm OD x 422, 268 mm L

TUBE - supply, right-hand, valve

1шт.

6

L125375

PIPE,31.75 mm OD

TUBE - supply, left-hand, valve

1шт.

7

218-603

TEE,37 Degree, 1 5/16"-12 x 1 5/8"-12, Br

- 1-5/8-12 flare branch x 1-5/16-12 inch flare x flare

2шт.

7a

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

- 1-1/16-12 flare branch x 1-5/16-12 inch flare x swivel, models with ride control

2шт.

8

L125381

PIPE,25.4 mm OD

TUBE - lift, right-hand rod end

1шт.

9

L125385

PIPE,25.4 mm OD

TUBE - lift, left-hand rod end

1шт.

9a

108897A1

TUBE

- lift, left-hand rod end, not shown, models with ride control

1шт.

10

L125379

PIPE,25.4 mm OD

TUBE - lift, right-hand closed end

1шт.

11

L125383

PIPE,25.4 mm OD

TUBE - lift, left-hand closed end

1шт.

11a

108895A1

HYD TUBE

TUBE - lift, left-hand closed end, not shown, models with ride control

1шт.

12

R15257

CLAMP

- tube

2шт.

13

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

14

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

15

L125345

HOSE

- 1400 mm (55-1/8 inch) long

2шт.

16

D137643

SHIN

CLAMP - hose

4шт.

17

L125367

PIPE,25.4 mm OD

TUBE - right-hand, cylinder rod end

1шт.

18

L125387

PIPE,25.4 mm OD

TUBE - left-hand, cylinder rod end

1шт.

19

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 20

4шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

21

L125389

HOSE

- 1425 mm (56-1/8 inch) long, cylinder closed end

2шт.

22

1986601C1

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 806.5mm Stroke

CYLINDER ASSEMBLY - 152 (6) ID x 807 mm (31-3/4 inch) stroke, parts list Fig. 8-46

2шт.

23

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

24

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

2шт.
