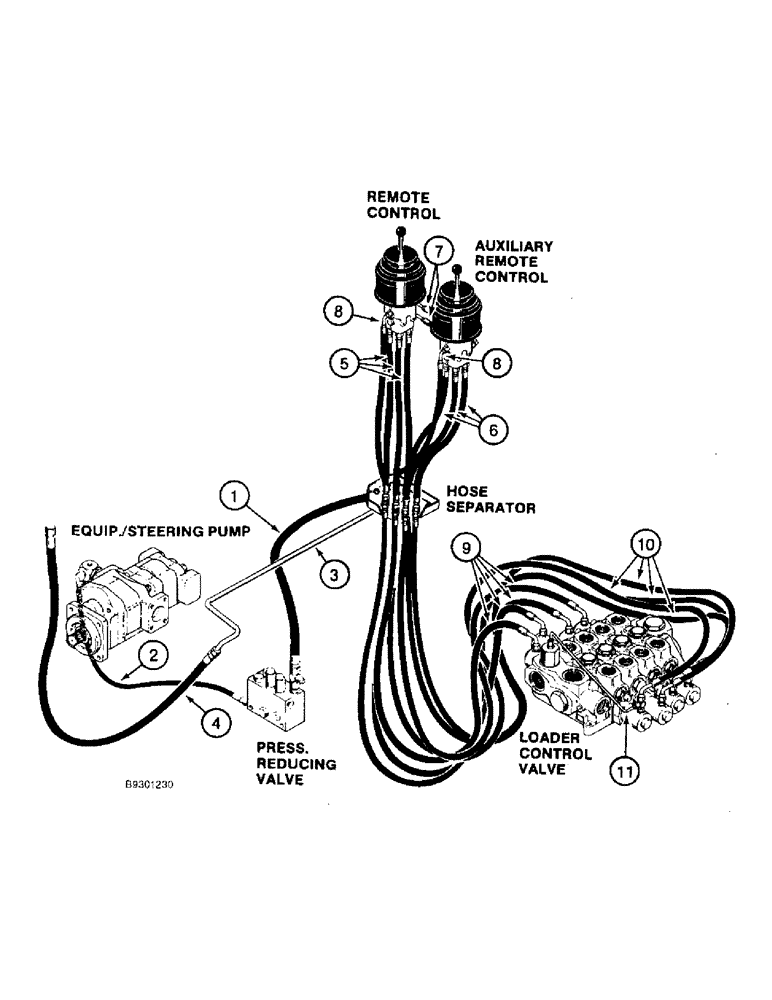

Запчасти Case 821B (1-24) - PICTORIAL INDEX, LOADER HYDRAULIC CIRCUIT, STEERING PUMP TO LOADER CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, hose separator to pressure Pg. 8-69

1шт.

reducing valve

1шт.

2

Hose, pressure reducing valve to Pg. 8-69

1шт.

elbow at steering pump

1шт.

3

Tube, hose separator to hose at Pg. 8-69

1шт.

hydraulic reservoir

1шт.

4

Hose, at hydraulic reservoir Pg. 8-69

1шт.

5

Hose, remote control to hose Pg. 8-65

1шт.

separator ports 1A, 1B, 2A, and 2B

1шт.

6

Hose, auxiliary remote control to Pg. 8-65

1шт.

hose separator port 3A, 3B, 4A, and

1шт.

4B

1шт.

7

Hose, auxiliary remote control to Pg. 8-65

1шт.

remote control

1шт.

8

Hose, remote control to hose Pg. 8-65

1шт.

separator, hydraulic reservoir and

1шт.

pressure reducing valve ports

1шт.

9

Hose, hose separator to ports 1B, Pg. 8-67

1шт.

2B, 3B, and 4B

1шт.

10

Hose, hose separator to ports 1A, Pg. 8-67

1шт.

2A, 3A, and 4A

1шт.

11

Tube, inlet and outlet section to Pg. 8-67

1шт.

tee at port 1A

1шт.
