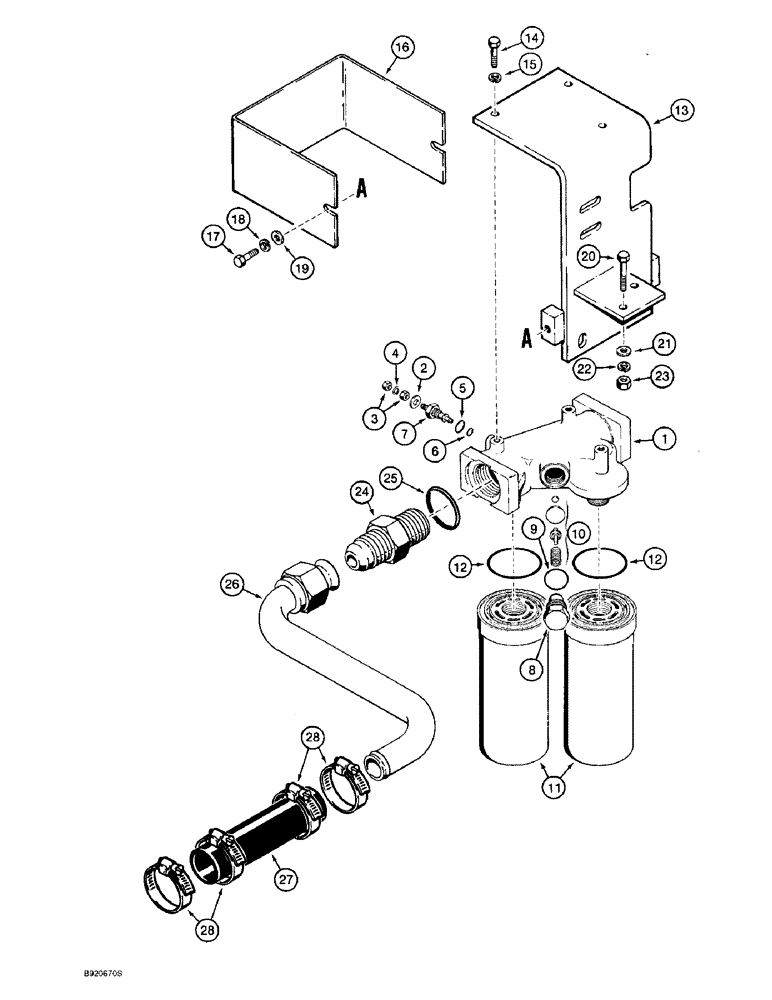

Запчасти Case 821B (8-10) - HYDRAULIC CIRCUIT, OIL FILTER TO HYDRAULIC RESERVOIR (08) - HYDRAULICS

L126373

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY - restriction, electrical, includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - identification

1шт.

3

129-667

NUT,#10-32, LH

2шт.

4

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

7

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, order N13268 assembly

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - hex, bypass valve retaining

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - bypass, 50 PSI, order L126373 filter assembly

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter, includes: Ref. 11 and 12

2шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - filter, order N9025 element assembly

1шт.

12

N9026

O-RING

- element

1шт.

13

L126230

BRACKET

- mounting, filter

1шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

3шт.

15

492-11038

LOCK WASHER,3/8"

3шт.

16

L126231

PROTECTOR

GUARD - filter

1шт.

17

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

19

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

20

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

2шт.

21

R24323

WASHER

- flat, special

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

24

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, 1-7/8-12 inch flare x O-ring boss, includes: Ref. 25

1шт.

25

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

26

L126401

PIPE,38.09 mm OD x 373, 262 mm L

TUBE - filter to hydraulic reservoir

1шт.

27

L127301

HOSE,38.1 mm ID x 230.00 mm

Cut From 1-4482 Bulk Hose 38.1 mm ID x 230.00 mm

1шт.

28

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - adj, 1-1/4 - 2-1/8 inch dia

4шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot.

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
