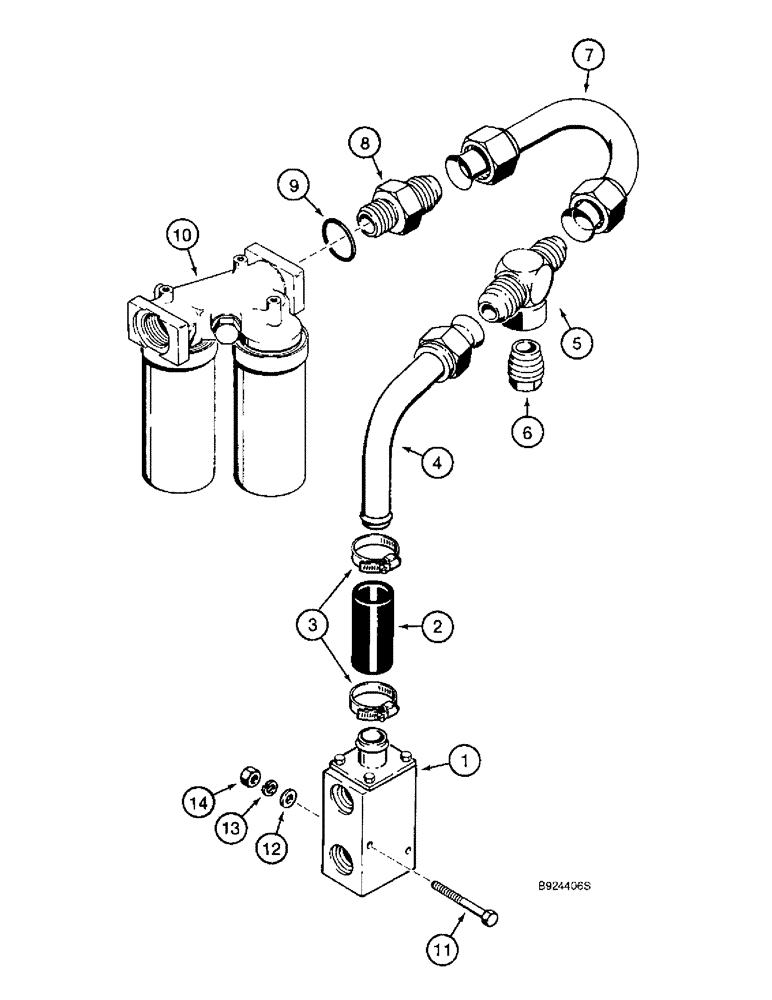

Запчасти Case 821B (8-08) - HYDRAULIC CIRCUIT, COOLER BYPASS VALVE TO FILTER (08) - HYDRAULICS

1

L110287

VALVE,1-7/8" - 12

ASSEMBLY - parts list Fig. 8-44

1шт.

2

BHBL125975

HOSE

- 110 mm (4 inch) long

1шт.

3

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - adj, 1-1/4 - 2-1/8 inch dia

4шт.

4

L125453

PIPE,38.09 mm OD x 151, 129 mm L

TUBE - return, by-pass valve to tube at filter

1шт.

5

218-580

TEE,1 7/8"-12, 37 Degree x 1 1/2"-11 1/2, NPTF Fem Br

- 1-1/2 female PT branch x 1-7/8-12 inch flare x flare

1шт.

6

221-73

REDUCER,Hex, 1 1/2" x 1/2" NPT

- pipe, 1-1/2 male x 1/2 inch female

1шт.

7

L125455

PIPE,38.09 mm OD x 753, 189 mm L

TUBE - return, at filter

1шт.

8

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, 1-7/8-12 inch flare x O-ring boss, includes: Ref. 9

1шт.

9

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

10

L126373

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, parts list Fig. 8-10

1шт.

11

426-664

BOLT,Hex, 3/8" - 16 x 4", Gr 8

- hex, 3/8 NC x 4 inch, grade 8

2шт.

12

D41740

WASHER

- flat, special, 3/8 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.
