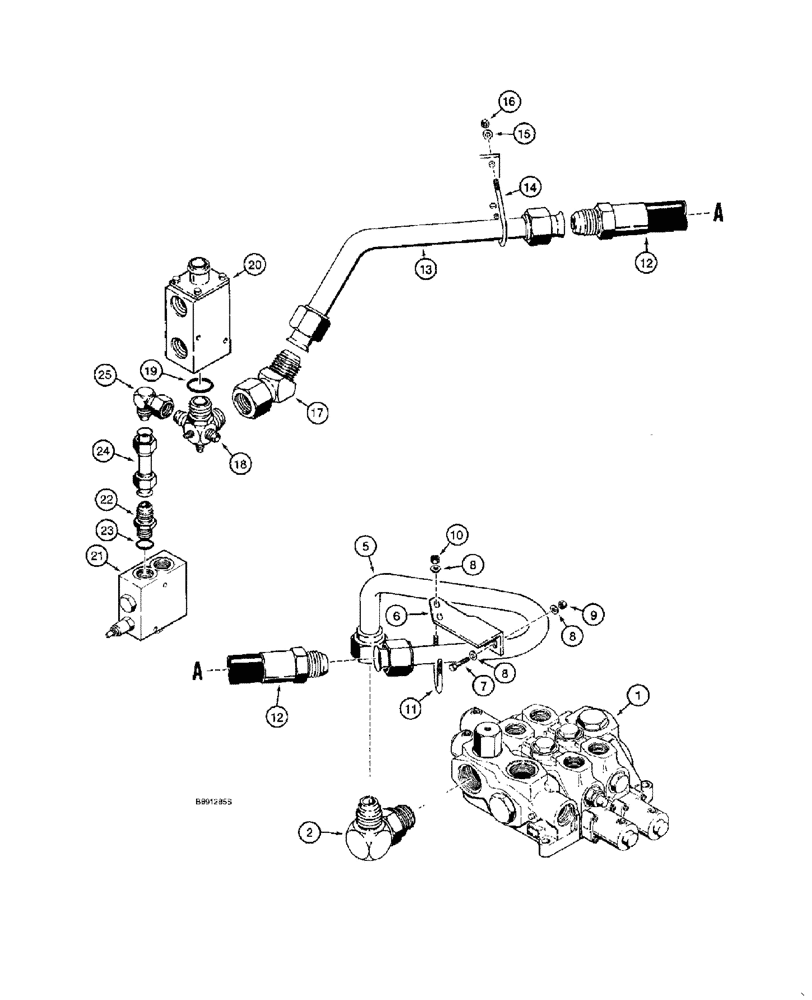

Запчасти Case 821B (8-06) - HYDRAULIC CIRCUIT, LOADER CONTROL AND UNLOADING VALVES, TO COOLER BYPASS VALVE (08) - HYDRAULICS

1

L126100

VALVE

ASSEMBLY - control, two spool, parts list Fig. 8-22

1шт.

1

L126101

VALVE

ASSEMBLY - control, three spool, not shown, parts list Fig. 8-24

1шт.

1

L126102

VALVE

ASSEMBLY - control, four spool, f not shown, parts list Fig. 8-26

1шт.

2

L125907

FITTING

ELBOW - 90 degree, special, control valve to return tube

1шт.

5

L125284

PIPE,38.09 mm OD

TUBE - return, control valve to hose

1шт.

6

L125941

SUPPORT

BRACKET - mounting, front chassis

1шт.

7

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

8

D41740

WASHER

- flat, special, 3/8 inch

6шт.

9

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

10

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

11

L105791

U-BOLT

- special

1шт.

12

L125353

HOSE

- 615 mm (24-1/4 inch) long, return, from control valve

1шт.

13

L125607

PIPE,38.09 mm OD x 295, 114 mm L

TUBE - return, hose to bypass valve

1шт.

14

L105791

U-BOLT

- special

1шт.

15

D41740

WASHER

- flat, special, 3/8 inch

2шт.

16

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

17

218-5178

ELBOW,45 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Female JIC

- 45 degree, 1-7/8-12 inch flare x swivel

1шт.

18

108748A1

FITTING

MANIFOLD - special, at cooler bypass valve, includes: Ref. 19

1шт.

19

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

20

L110287

VALVE,1-7/8" - 12

ASSEMBLY - cooler bypass, parts list Fig. 8-44

1шт.

21

122409A1

VALVE

ASSEMBLY - unloading, parts list Fig. 8-42

1шт.

22

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

24

L125902

PIPE,25.4 mm OD x 108 mm L

TUBE - return, unloading valve to bypass valve

1шт.

25

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel

1шт.
