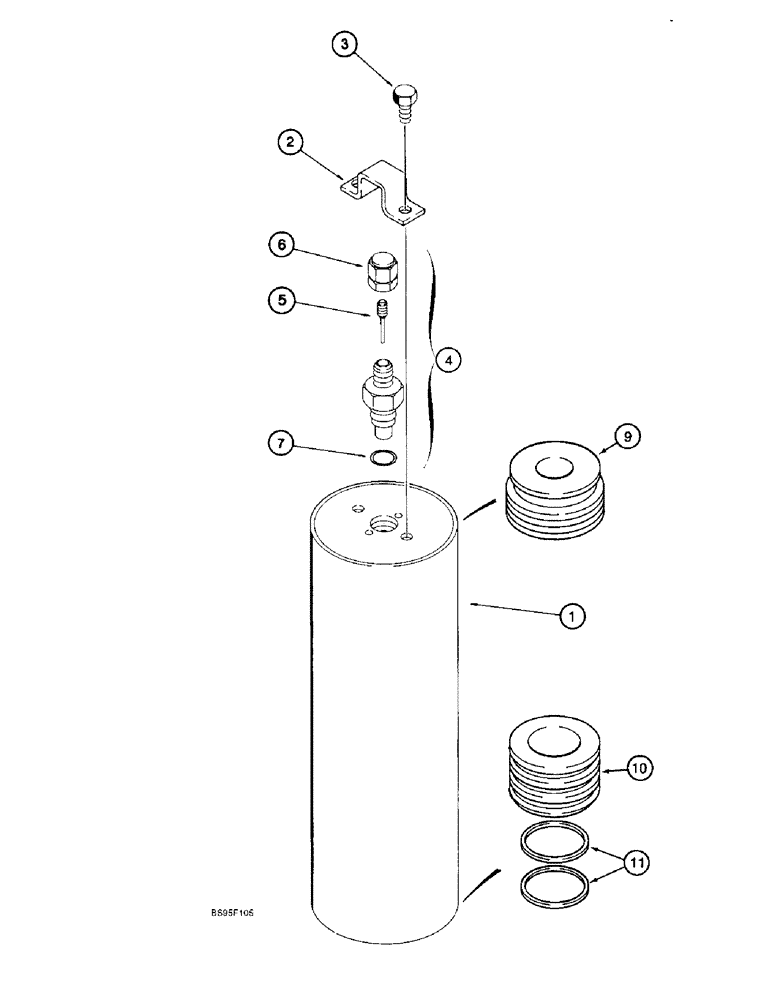

Запчасти Case 821B (7-26) - BRAKE ACCUMULATOR, ACCUMULATOR ASSEMBLY - 1978111C1 (07) - BRAKES

1978111C1

TANK

ACCUMULATOR ASSEMBLY - hydraulic, with welded ends, no longer available, order 128191A1 accumulator assembly, includes: Ref. 1 - 8

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - accumulator

1шт.

2

1341920C1

PROTECTOR

GUARD - valve, gas

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self-tapping, hex head, 3/8 NC x 3/4 inch

2шт.

4

1978142C1

VALVE

ASSEMBLY - charge, includes: Ref. 5 - 7

1шт.

5

1978143C1

PISTON

CORE - valve

1шт.

6

1978144C1

CAP

- valve

1шт.

7

1978158C1

O-RING

- valve, valve

1шт.

8

1341919C1

SEAL KIT

KIT - seal, accumulator, not shown

1шт.

128191A1

ACCUMULATOR,1.9L

ASSEMBLY - hydraulic, with threaded ends, replaces 1978111C1 accumulator assembly, includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - accumulator

1шт.

2

1341920C1

PROTECTOR

GUARD - valve

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self-tapping, hex head, 3/8 NC x 3/4 inch

2шт.

1978142C1

VALVE

ASSEMBLY - charge, includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - accumulator charging

1шт.

5

1978143C1

PISTON

CORE - valve

1шт.

6

1978144C1

CAP

- valve

1шт.

7

1978158C1

O-RING

- valve

1шт.

8

1341919C1

SEAL KIT

KIT - seal, accumulator

1шт.

9

S301363

GLAND

- accumulator

1шт.

10

S301364

PISTON

- accumulator

1шт.

11

S301365

RING

- wear, teflon, piston

2шт.
