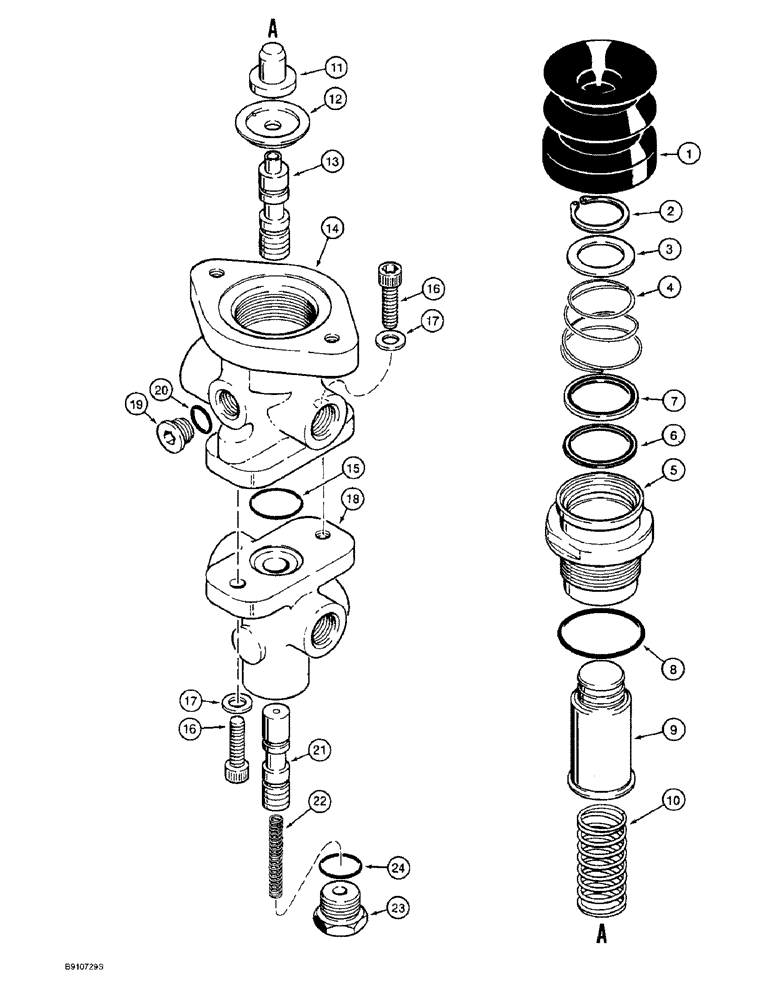

Запчасти Case 821B (7-24) - BRAKE VALVE (07) - BRAKES

L129699

VALVE

ASSEMBLT - brake, see Fig. 7-14 for mounting, includes: Ref. 1 - 24, Serial Range: -JEE0051723

1шт.

223437A1

VALVE

ASSEMBLY - brake, see Fig. 7-14 for mounting, includes: Ref. 1 - 24, Start Serial: JEE0051723

1шт.

1

100660A1

BOOT

- brake valve

1шт.

Part of Seal Kit, P/N 100659A1

1шт.

2

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

1шт.

3

100665A1

WASHER

- flat, special

1шт.

4

100666A1

SPRING

- gland

1шт.

5

100667A1

CENTERING RING

GLAND - valve

1шт.

6

100662A1

SEALING RING

- gland

1шт.

Part of Seal Kit, P/N 100659A1

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - gland

1шт.

Part of Seal Kit, P/N 100659A1

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit, P/N 100659A1

1шт.

9

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - large, upper

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET - spring

1шт.

12

100668A1

CUP WASHER

SEAT - plunger

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - upper

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - upper

1шт.

15

100664A1

O-RING,0.864" ID x 1.004" OD x 0.07"

- lower body

1шт.

Part of Seal Kit, P/N 100659A1

1шт.

16

100672A1

HEX SOC SCREW,5/16" - 18 x 1"

SCREW - hex socket, special

2шт.

17

100673A1

WASHER

- flat, special

2шт.

18

NSS

NOT SOLD SEPARAT

BODY - lower

1шт.

19

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 20 Hex Soc, 9/16"-18 ORB

2шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - lower

1шт.

22

100669A1

SPRING

- lower

1шт.

23

100670A1

PLUG

- lower body, includes: Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of Seal Kit, P/N 100659A1

1шт.

100659A1

SEAL KIT

KIT - seal, includes Refs. 1, 6, 7, 8, 15, and 24

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
