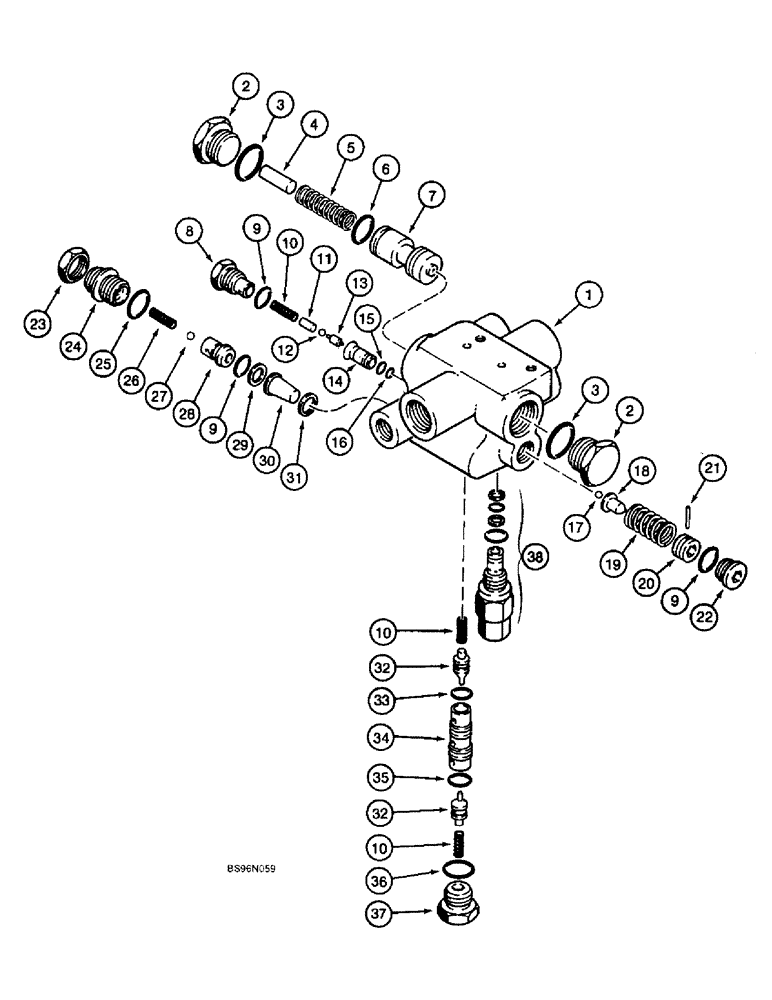

Запчасти Case 821B (7-21A) - BRAKE ACCUMULATOR VALVE - 232531A1 (07) - BRAKES

232531A1

VALVE

ASSY., accumulator brake, includes: Ref 1 - 38

1шт.

232531A1R

REMAN-HYD VALVE

821B

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, brake accumulator

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - large, includes: Ref. 3

2шт.

3

NSS

NOT SOLD SEPARAT

O-RING - plug; Part of 233562A1 Seal Repair Kit

1шт.

Part of Repair Kit P/N 233562A1

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - plunger

1шт.

5

S302035

SPRING

- rod

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - spool, small; Part of 233562A1 Seal Repair Kit

1шт.

Part of Repair Kit P/N 233562A1

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - special

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - plug; Part of 233562A1 Seal Repair Kit

3шт.

Part of Repair Kit P/N 233562A1

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - small

3шт.

11

NSS

NOT SOLD SEPARAT

ROD - plunger

1шт.

12

NSS

NOT SOLD SEPARAT

BALL - poppet

1шт.

13

NSS

NOT SOLD SEPARAT

POPPET - spool

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - spool, large

1шт.

Part of Repair Kit P/N 233562A1

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - spool, small; Part of 233562A1 Seal Repair Kit

1шт.

P/N 1344401C4 steering column now subs to P/N 195273 column. The new column does not have provisions in it for the horn like the old did. Under the new setup, the horn switch is integrated into the turn signal 1987555C1 shown on Figure 4-15A. The dealer could order the 1987555C1 to change to new style. They advise you could run the turn signal wires off the switch to the old pedastal harness, For the horn they would have to get some additional length of wire and run between the horn and the horn wires comin

1шт.

17

NSS

NOT SOLD SEPARAT

BALL - seat; Part of 233562A1 Seal Repair Kit

1шт.

18

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

19

S302034

SPRING

- large

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - hex, socket headless

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW - set

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - hex, socket

1шт.

23

NSS

NOT SOLD SEPARAT

NUT - hex

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW ASSEMBLY - adjusting, includes washer

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - screw; Part of 233562A1 Seal Repair Kit

1шт.

Part of Repair Kit P/N 233562A1

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

232532A1

SET OF PARTS

Steel Ball Check; Incl. Ref 27

1шт.

27

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

Included in Repair Kit P/N 232532A1

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - outer

1шт.

30

NSS

NOT SOLD SEPARAT

FILTER - valve

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER - inner

1шт.

32

NSS

NOT SOLD SEPARAT

POPPET - valve

2шт.

33

NSS

NOT SOLD SEPARAT

O-RING - small, spool; Part of 233562A1 Seal Repair Kit

1шт.

Part of Repair Kit P/N 233562A1

1шт.

34

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING - large, spool; Part of 233562A1 Seal Repair Kit

1шт.

Part of Repair Kit P/N 233562A1

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING - plug; Part of 233562A1 Seal Repair Kit

1шт.

Part of Repair Kit P/N 233562A1

1шт.

37

NSS

NOT SOLD SEPARAT

PLUG - end

1шт.

38

S302033

VALVE

- relief

1шт.

233562A1

SEAL KIT

KIT - repair, includes Refs. 3, 6, 9, 15, 16, 25, 33, 35, and 36

1шт.

232532A1

SET OF PARTS

KIT - repair, includes Ref. 27

1шт.
