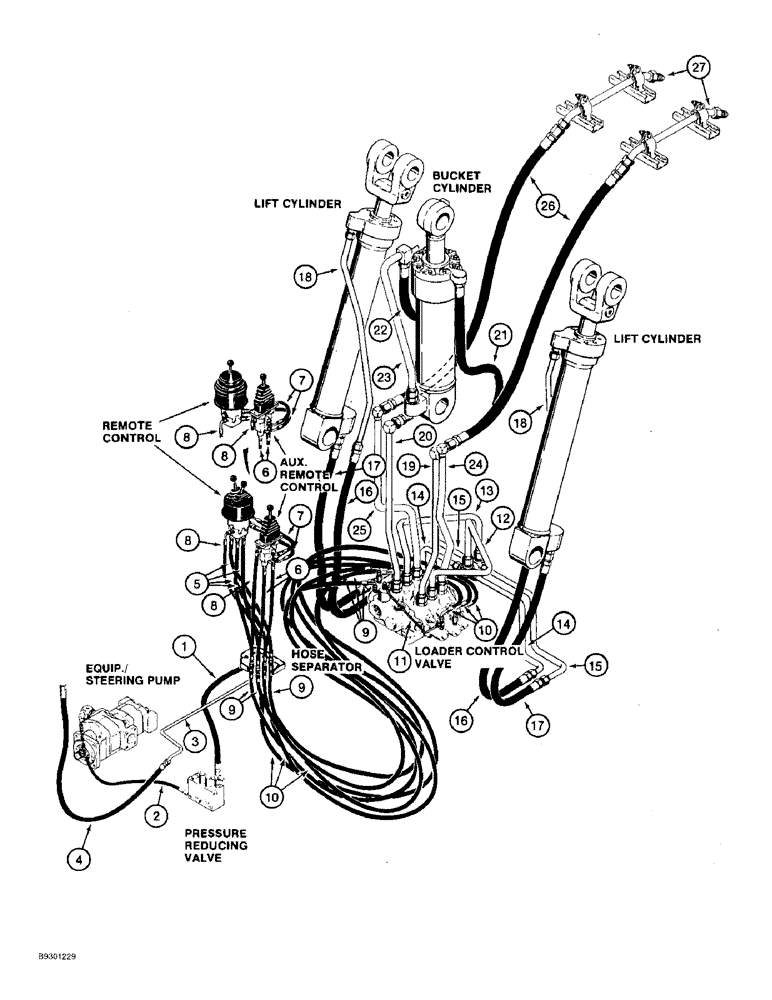

Запчасти Case 821B (1-22) - PICTORIAL INDEX, LOADER HYDRAULIC CIRCUIT, STEERING PUMP TO CYLINDERS, THREE SPOOL CONTROL VALVE (00) - PICTORIAL INDEX
№
Артикул
Название
Примечание
Количество
1
Hose, hose separator to pressure Pg. 8-69
1шт.
reducing valve
1шт.
2
Hose, pressure reducing valve to Pg. 8-69
1шт.
elbow at steering pump
1шт.
3
Tube, hose separator to hose at Pg. 8-69
1шт.
hydraulic reservoir
1шт.
4
Hose, tube to hydraulic reservoir Pg. 8-69
1шт.
5
Hose, remote control to hose Pg's. 8-59,8-61
1шт.
separator ports 1A, 1B, 2A, and 2B
1шт.
6
Hose, auxiliary remote control to Pg's. 8-59,8-61
1шт.
hose separator ports 3A and 3B
1шт.
7
Hose, auxiliary remote control to Pg's. 8-59,8-61
1шт.
remote control
1шт.
8
Hose, remote controls to hose Pg's. 8-59,8-61
1шт.
separator, hydraulic reservoir and
1шт.
pressure reducing valve ports
1шт.
9
Hose, hose separator to ports 1B, Pg. 8-63
1шт.
2B, and 3B
1шт.
10
Hose, hose separator to ports 1A, Pg. 8-63
1шт.
2A, and 3A
1шт.
11
Hose, inlet and outlet section to Pg. 8-63
1шт.
tee at port 1A
1шт.
12
Supply tube, right-hand, loader Pg. 8-13
1шт.
control valve to lift cylinders
1шт.
13
Supply tube, left-hand, loader Pg. 8-13
1шт.
control valve to lift cylinders
1шт.
14
Supply tube, to rod end of lift Pg. 8-13
1шт.
cylinder
1шт.
15
Supply tube, to closed end of lift Pg. 8-13
1шт.
cylinder
1шт.
16
Hose, to rod end of lift cylinder Pg. 8-13
1шт.
17
Hose, to closed end of lift Pg. 8-13
1шт.
cylinder
1шт.
18
Tube, to rod end of lift cylinder Pg. 8-13
1шт.
19
Supply tube, right-hand, to rod end Pg. 8-15
1шт.
of bucket cylinder
1шт.
20
Supply tube, left-hand, to closed Pg. 8-15
1шт.
end of bucket cylinder
1шт.
21
Hose, tube to rod end of bucket Pg. 8-15
1шт.
cylinder
1шт.
22
Hose, tube to closed end of bucket Pg. 8-15
1шт.
cylinder
1шт.
23
Tube, bucket cylinder, closed end Pg. 8-15
1шт.
24
Tube, right-hand, at loader control Pg. 8-17
1шт.
valve, auxiliary circuit
1шт.
25
Tube, left-hand, at loader control Pg. 8-17
1шт.
valve, auxiliary circuit
1шт.
26
Hose, auxiliary circuit Pg. 8-17
1шт.
27
Tube, at loader arm Pg. 8-17
1шт.
