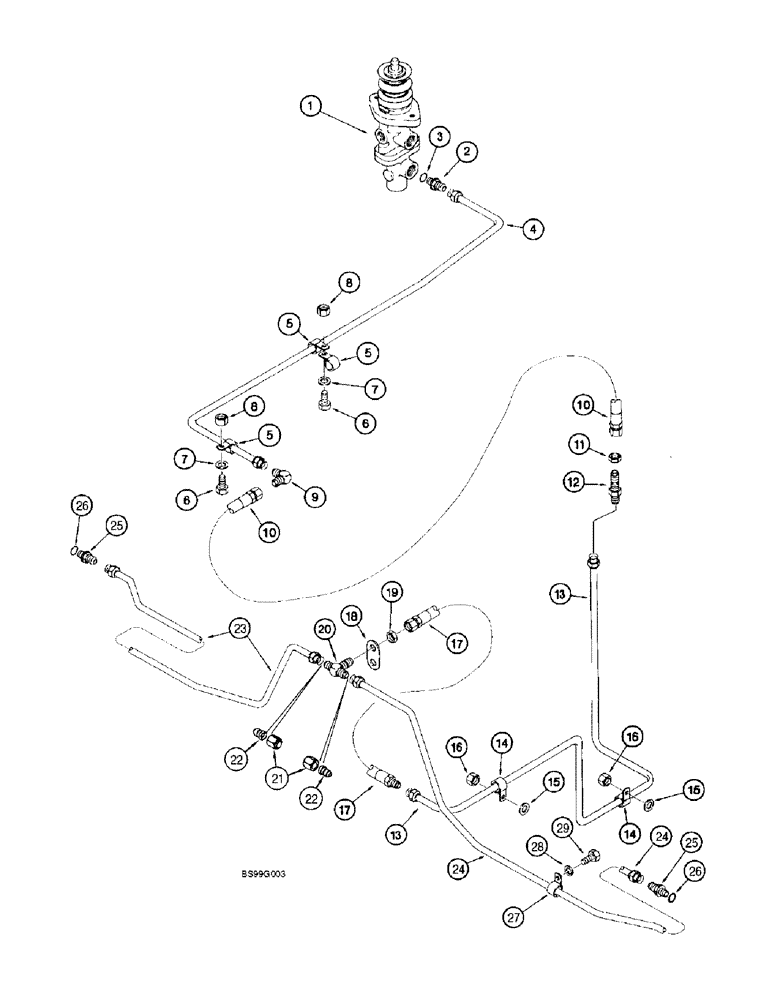

Запчасти Case 821B (7-19A) - MAIN BRAKE HYDRAULIC CIRCUIT, MAIN BRAKE VALVE TO REAR AXLE, P.I.N. JEE0051723 & AFTER (07) - BRAKES

1

223437A1

VALVE

ASSEMBLY - brake, main, parts list Fig. 7-24

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl.: Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

192178A1

TUBE,12.7 mm OD

- rear brakes, valve to hose

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Closed 1/2", Insul, 3/8" Bolt

3шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

9

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

10

193184A1

HOSE

- 280 mm (11 inch) long, Serial Range: tube-tube

1шт.

11

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

12

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

1шт.

13

192583A1

TUBE

- rear brake, hose to tee at axle

1шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Closed 1/2", Insul, 3/8" Bolt

2шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

17

192818A1

HOSE

- 630 mm (24-13/16 inch) long, tube to tee at rear axle

1шт.

18

189274A1

SPACER

BRACKET - tube mounting, use bolt from rear, Serial Range: axle-mount

1шт.

19

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

20

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch bulkhead flare branch x flare x flare

1шт.

21

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - hex, 1/2 inch NF

2шт.

22

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - reducing, 1/2 tube OD x 9/16-18 inch flare

2шт.

23

192814A1

TUBE

- rear axle, left-hand

1шт.

24

192813A1

TUBE

- rear axle, right-hand

1шт.

25

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 26

2шт.

27

S64985

CLAMP

- P-type, rear brake

4шт.

28

492-11038

LOCK WASHER,3/8"

4шт.

29

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

4шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
