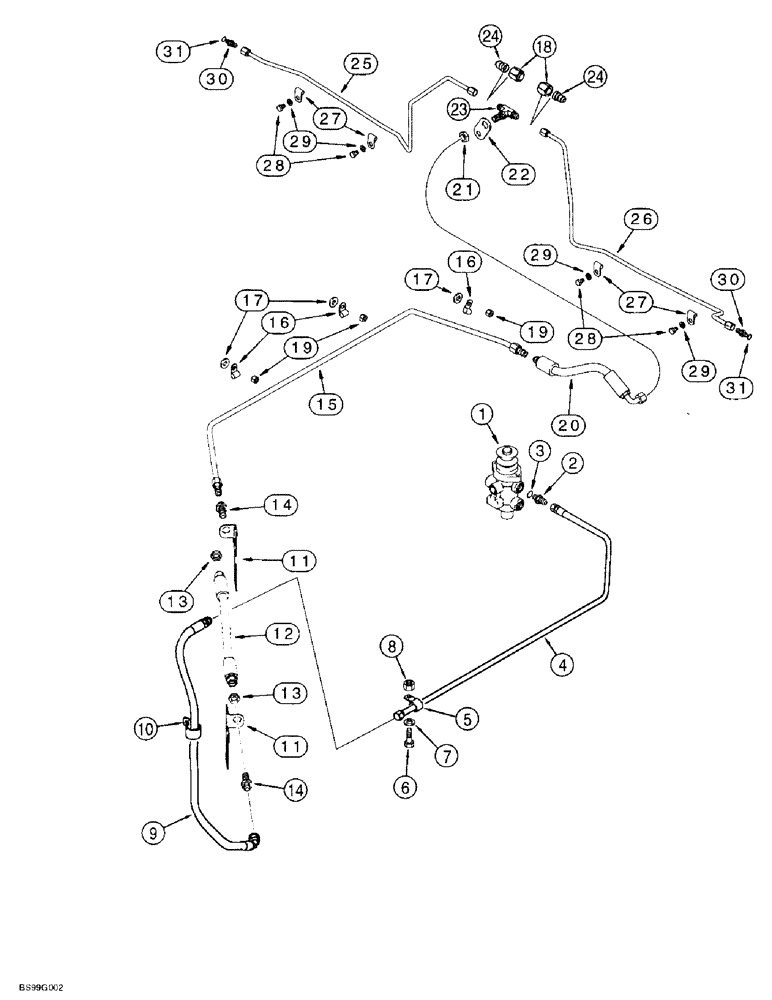

Запчасти Case 821B (7-17A) - MAIN BRAKE HYDRAULIC CIRCUIT, MAIN BRAKE VALVE TO FRONT AXLE, P.I.N. JEE0051723 & AFTER (07) - BRAKES

1

223437A1

VALVE

ASSEMBLY - brake, main, parts list Fig. 7-24

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl.: Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

192179A1

TUBE

- front brakes, Serial Range: valve-hose

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Closed 1/2", Insul, 3/8" Bolt

1шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

9

192817A1

HOSE

- 714 mm (28-1/8 inch) long, front brakes, Serial Range: tube-hose

1шт.

10

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Use steering tube clamp hardware 7/8", Insul, 3/8" Bolt

1шт.

11

192609A1

SUPPORT

BRACKET - mounting, brake hoses and tube mounting, use hose mounting clamp hardware

2шт.

12

192816A1

HOSE

- 492 mm (19-3/8 inch) long, Serial Range: hose-tube

1шт.

13

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

14

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

2шт.

15

192794A1

TUBE

- front brakes, to tee at front axle, if used

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Closed 1/2", Insul, 3/8" Bolt

3шт.

17

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

3шт.

18

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - hex, 1/2 inch NF

2шт.

19

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

3шт.

20

192819A1

HOSE

- 365 mm (14-3/8 inch) long, from tube to tee at front axle

1шт.

21

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

22

189274A1

SPACER

BRACKET - tube mounting, use bolt from front, Serial Range: axle-mount

1шт.

23

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch bulkhead flare branch x flare x flare

1шт.

24

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - reducing, 1/2 tube OD x 9/16-18 inch flare

2шт.

25

192812A1

TUBE

- front axle, left-hand

1шт.

26

192811A1

TUBE

- front axle, right-hand

1шт.

27

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

- P-type, 7/16 inch, front brake

4шт.

28

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

4шт.

29

492-11038

LOCK WASHER,3/8"

4шт.

30

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 31

2шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
