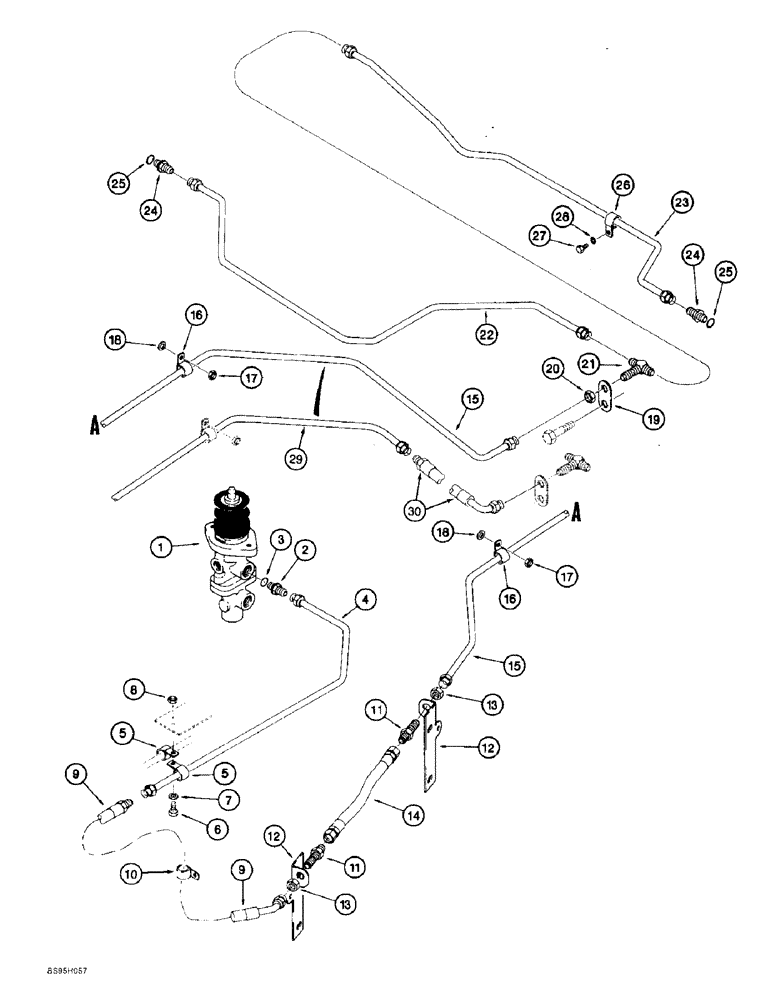

Запчасти Case 821B (7-16) - MAIN BRAKE HYDRAULIC CIRCUIT, MAIN BRAKE VALVE TO FRONT AXLE, PRIOR TO P.I.N. JEE0051723 (07) - BRAKES

1

L129699

VALVE

ASSEMBLY - brake, main, parts list Fig. 7-24

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, includes: Ref. 3

1шт.

4

107307A1

TUBE,9.53 mm OD, 569, 109 mm Length

- valve to hose

1шт.

5

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed 3/8", Insul, 3/8" Bolt

2шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

9

107302A1

HOSE ASSY.

HOSE - 714 mm (28-1/8 inch) long, front brakes, Serial Range: tube-hose

1шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Use steering tube clamp hardware 5/8", Insul, 3/8" Bolt

1шт.

11

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

2шт.

12

L125572

SUPPORT

BRACKET - mounting, brake hoses and tube mounting, use hose mounting clamp hardware

2шт.

13

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

14

107337A1

HOSE ASSY.

HOSE - 492 mm (19-3/8 inch) long, Serial Range: hose-tube

1шт.

15

107335A1

TUBE

- to tee at front axle, if used

1шт.

16

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed 3/8", Insul, 3/8" Bolt

3шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

3шт.

18

187563A1

SPACER

- 13 x 25 x 28 mm

3шт.

19

107334A1

BRACKET

- tube mounting, use bolt from front, Serial Range: axle-mount

1шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

21

218-804

TEE,9/16"-18, 37 Degree, Blkhd

- 9/16-18 inch bulkhead flare branch x flare x flare

1шт.

22

107332A1

TUBE

- front axle, left-hand

1шт.

23

107327A1

TUBE

- front axle, right-hand

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 25

2шт.

26

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

- P-type, 7/16 inch, front brake

4шт.

27

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

4шт.

28

492-11038

LOCK WASHER,3/8"

4шт.

29

128086A1

HYD TUBE,9.53 mm OD, 863, 840 mm Length

TUBE - to hose at front axle, if used

1шт.

30

128096A1

HOSE ASSY.

HOSE - 365 mm (14-3/8 inch) long, from tube to tee at front axle, if used

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
