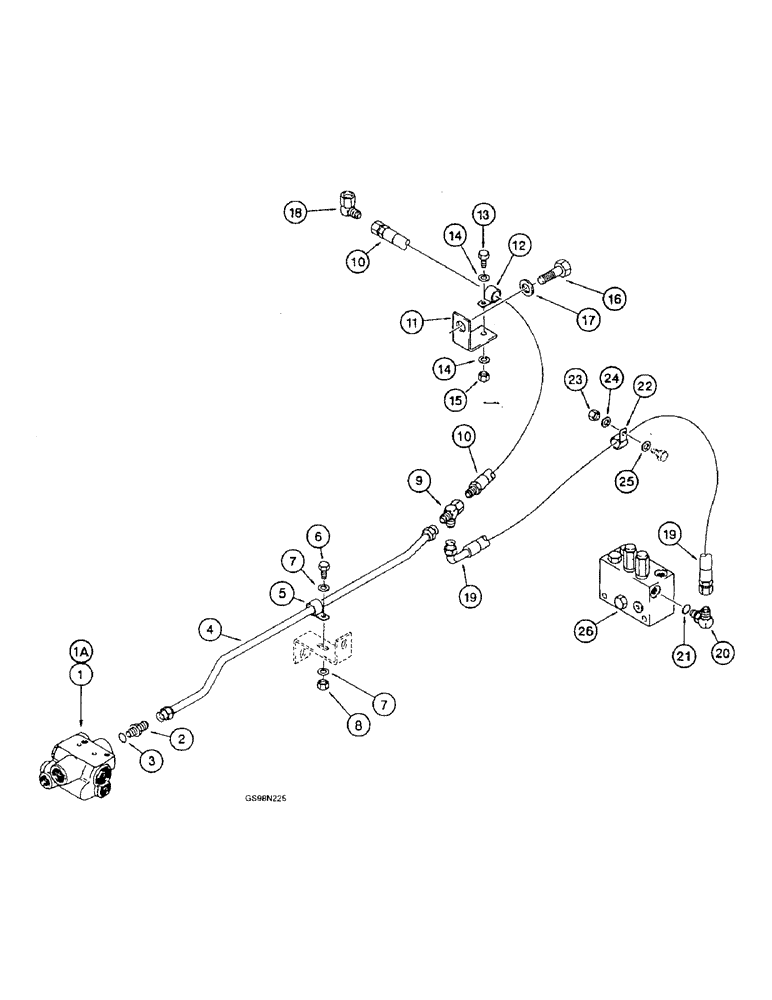

Запчасти Case 821B (7-12) - MAIN BRAKE HYDRAULIC CIRCUIT, ACCUMULATOR VALVE TO PRESSURE REDUCING VALVE (07) - BRAKES

1

L128116

VALVE

ASSEMBLY - accumulator, parts list Fig. 7-20, see Fig. 7-8 for mounting hardware, no longer available, order 232531A1 valve assembly, Ref. 1A

1шт.

232531A1R

REMAN-HYD VALVE

821B, Reman for New P/N L128116

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

1a

232531A1

VALVE

ASSEMBLY - accumulator, parts list Fig. 7-21A, see Fig. 7-8 for mounting hardware

1шт.

232531A1R

REMAN-HYD VALVE

821B

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

2

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss, includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

107352A1

TUBE

- valve to tee to pressure reducing valve

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Closed 1/2", Insul, 3/8" Bolt

1шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

9

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

10

L45337

HOSE ASSY.

HOSE - 864 mm (34 inch) long, tee to elbow at cooler bypass valve

1шт.

11

107359A1

BRACKET

- hose mounting

1шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

13

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

15

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

16

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 20 - 2.5 x 40 mm

1шт.

17

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

1шт.

18

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

19

109058A1

HOSE ASSY.

HOSE - 800 mm (31-1/2 inch) long, tee to pressure reducing valve

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

22

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

23

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

24

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

25

S95569

WASHER

- flat, special, 1/2 inch

1шт.

26

108525A2

VALVE

ASSEMBLY - pressure reducing, parts list Fig. 8-82

1шт.

REF #18 GOES TO THE BOTTOM OF PART NUMBER 108748A1 ON PAGE 5-10.

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Includes ref. 21

1шт.
