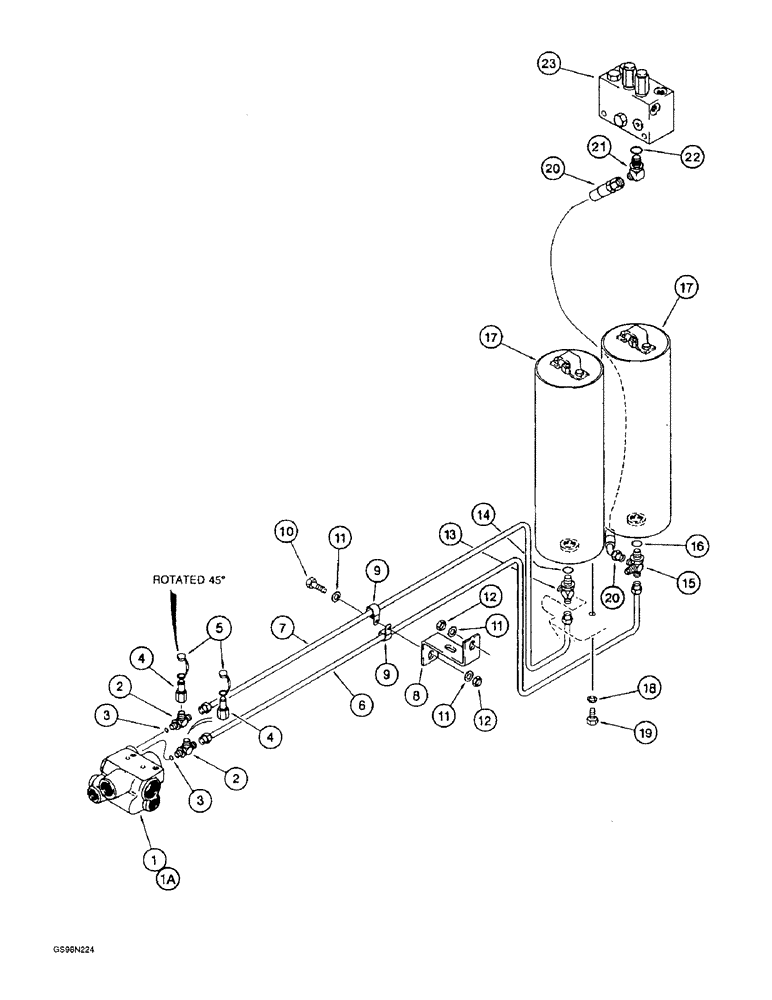

Запчасти Case 821B (7-10) - HYDRAULICS, MAIN BRAKE - ACCUMULATOR VALVE TO PRESS. REDUCING VALVE PRESS. PORT(PRIOR TO JEE0051723) (07) - BRAKES

PRIOR TO P.I.N. JEE0051723

1шт.

1

L128116

VALVE

ASSEMBLY - accumulator, parts list Fig. 7-20, see Fig. 7-8 for mounting hardware, no longer available, order 232531a1 valve assembly, item 1A

1шт.

232531A1R

REMAN-HYD VALVE

821B, Reman for New P/N L128116

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

1a

232531A1

VALVE

ASSEMBLY - accumulator, parts list Fig. 7-21A, see page 7-8 for mounting hardware

1шт.

232531A1R

REMAN-HYD VALVE

821B

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

2

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

- 9/16-18 flare branch x flare x 3/4-16 inch adj O-ring, includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

101792A1

COUPLING

- quick disconnect

2шт.

5

H434163

DUST CAP

CAP - dust

2шт.

6

185133A1

TUBE,9.5 mm OD, 1088, 319 mm Length

- accumulator charge, valve lower port to front accumulator, replaces 107354A1 tube

1шт.

7

185135A1

TUBE,9.5 mm OD, 913, 328 mm Length

- accumulator charge, valve upper port to rear accumulator, replaces 107357A1 tube

1шт.

8

107349A1

BRACKET

- tube mounting

1шт.

9

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed 3/8", Insul, 3/8" Bolt

2шт.

10

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

3шт.

12

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

13

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

- 9/16-18 flare branch x flare x 3/4-16 inch adj O-ring, includes: Ref. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

108750A1

FITTING

- special, accumulator, includes: Ref. 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

REF

INSTRUCTION

ACCUMULATOR ASSEMBLY - hydraulic, parts list Fig. 7-26

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

19

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

6шт.

20

110927A1

HOSE ASSY.

HOSE - 350 mm (13-3/4 inch) long, pressure reducing, Serial Range: valve-accumulator

1шт.

21

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, includes: Ref. 22

1шт.

23

108525A2

VALVE

ASSEMBLY - pressure reducing, parts list Fig. 8-82

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
