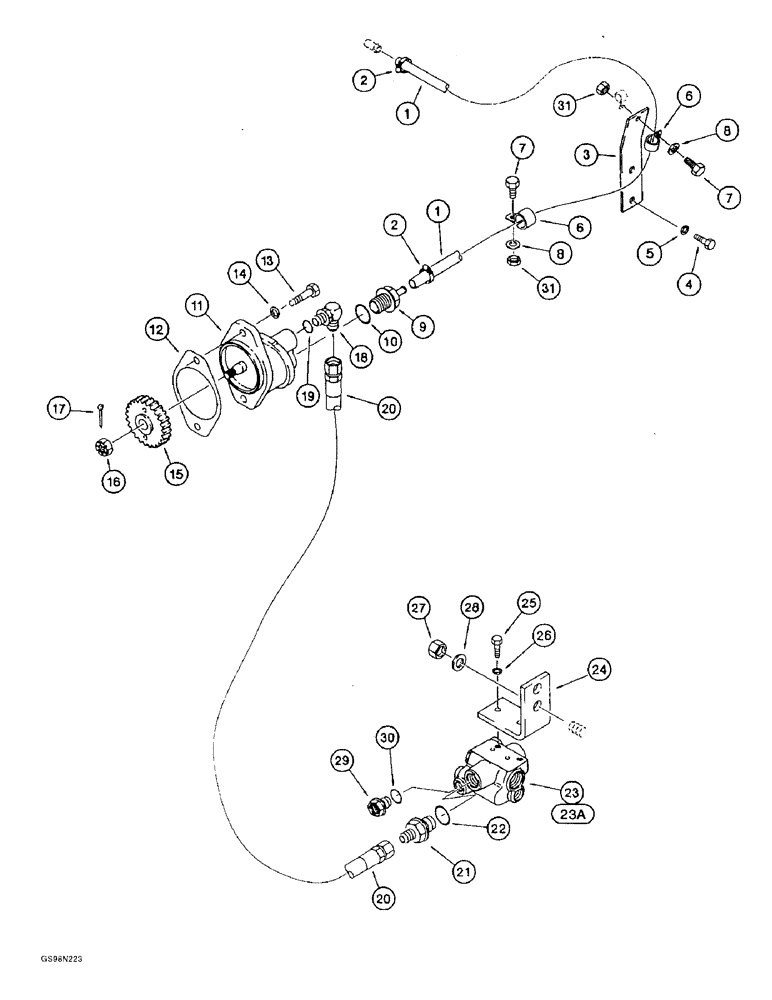

Запчасти Case 821B (7-08) - MAIN BRAKE HYDRAULIC CIRCUIT, RESERVOIR TO PUMP TO ACCUMULATOR VALVE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
107325A1
HOSE,19mm ID x 1400mm L, SAE 100R3
- brake motor supply at reservoir 19.00 mm ID x 1400.00 mm, SAE 100R3
1шт.
2
214-1416
HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm
CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm
2шт.
3
107350A1
BRACKET
- mounting
1шт.
4
614-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
- hex, full threads, 12 - 1.75 x 25 mm
2шт.
5
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
2шт.
6
515-23317
CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type
P-type 1 1/4", Insul, 3/8" Bolt
2шт.
7
426-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
2шт.
8
496-21041
WASHER,13/32" x 13/16" x .089", HDN
- flat, 13/32 x 13/16 x 3/32", hardened
2шт.
9
217-177
FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB
ADAPTER - straight, 3/4 stem end x 1-1/16-12 inch O-ring boss, includes: Ref. 10
1шт.
10
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
16-1, 90 Duro, 1.171" ID x .118" Thk, Boss end
1шт.
11
S515954
PUMP, HYDRAULIC
PUMP ASSEMBLY - brake, parts list Fig. 7-22, Serial Range: -JEE0054469
1шт.
This pump is replaced by 244573A1 pump as serial number JEE0054469 and after. There are 49 units that deviate from this pump. If the serial number falls between JEE0055086 to JEE0055150 check technical support book for information. Pump 244573A1 does not come with the gear mounting. Seal kit for pump 244573A1 is 257247A1.
1шт.
387411A2R
REMAN-HYD PUMP
821B Serial Range: -JEE0054469, Reman for New P/N S515954
1шт.
387411A2C
CORE-HYDRAULIC PUMP
Return Number
1шт.
11
284516A1
PUMP, HYDRAULIC
PUMP ASSEMBLY - brake, production only, for service order 244573A1, parts list Fig. 7-22, Start Serial: JEE0054469
1шт.
11
244573A1
PUMP, HYDRAULIC
PUMP ASSEMBLY - brake, parts list Fig. 7-22, Start Serial: JEE0054469
1шт.
11
87453065R
REMAN-HYD PUMP
821B CASE WHEEL LOADER (NORTH AMERICA), PUMP ASSEMBLY - brake, Start Serial: JEE0054469, Reman for New PN 244573A1
1шт.
11
87453065C
CORE-HYDRAULIC PUMP
Return Number
1шт.
12
J919601
GASKET
- access cover plate, replaces A77441 gasket
1шт.
13
614-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd
2шт.
14
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
2шт.
15
J924186
GEAR
- brake pump,replaces J905606 gear
1шт.
16
425-138
SLOTTED NUT,1/2"-20, G8
NUT, SLOTTED, 1/2"-20, G8
1шт.
17
432-616
COTTER PIN,3/32" x 1"
3/32" x 1"
1шт.
18
218-5121
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB
- 90 degree, 3/4-16 flare x 7/8-14 onch adj O-ring boss, includes: Ref. 19
1шт.
19
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
20
107323A1
HOSE ASSY.
HOSE - 410 mm (16-1/8 inch) long, pump to accumulator valve
1шт.
21
218-5070
HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss, includes: Ref. 22
1шт.
22
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
23
L128116
VALVE
ASSEMBLY - accumulator, parts list Fig. 7-20, no longer available, order 232531A1 valve assenbly, Ref. 23A
1шт.
232531A1R
REMAN-HYD VALVE
821B, Reman for New P/N L128116
1шт.
232531A1C
CORE-VALVE HYD
Return Number
1шт.
23a
232531A1
VALVE
ASSEMBLY - accumulator, parts list Fig. 7-21A
1шт.
232531A1R
REMAN-HYD VALVE
721B (3/93 - 12/98)
1шт.
232531A1C
CORE-VALVE HYD
Return Number
1шт.
24
L129987
BRACKET
- mounting
1шт.
25
426-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
2шт.
26
492-11038
LOCK WASHER,3/8"
2шт.
27
231-1448
NUT,1/2"-13, GB
- hex, self-locking, 1/2 inch NC
2шт.
28
496-41066
WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk
2шт.
29
218-5314
ADAPTER,1/2" NPT Male x 1/2" Fem ORB
- straight, 3/4-16 O-ring boss, see Fig. 4-28 for low pressure brake switch, includes: Ref. 30
1шт.
30
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
31
231-1446
NUT,3/8" - 16, Gr 5
NUT - hex, self-locking, 3/8 inch NC
2шт.
Выбрано товаров: 43
