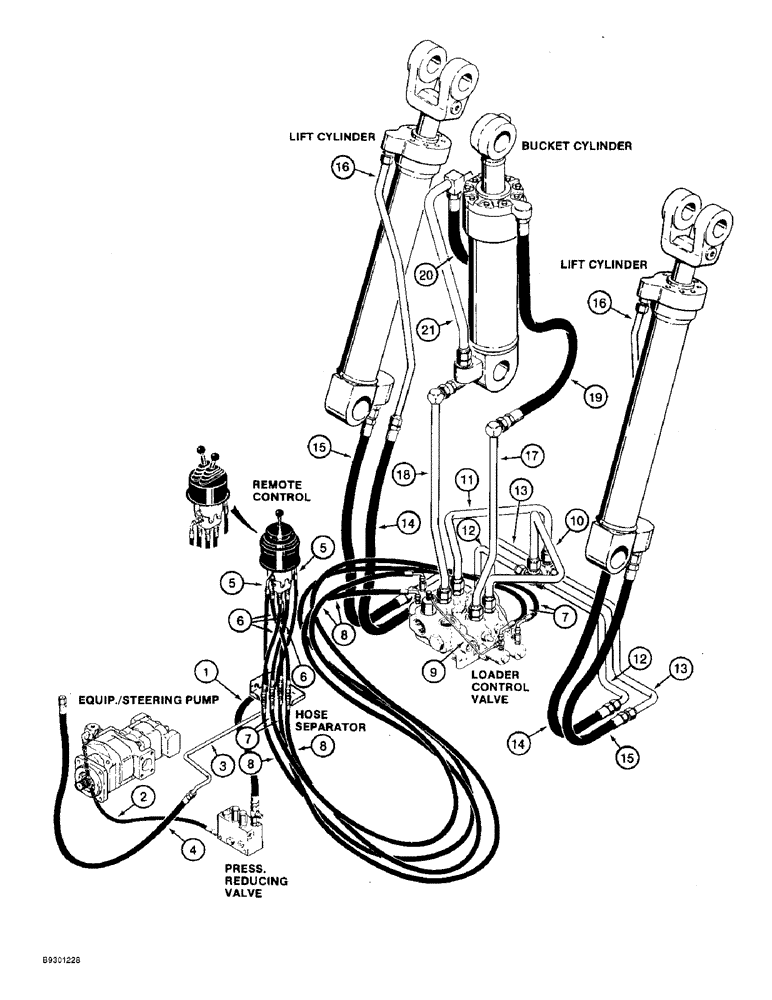

Запчасти Case 821B (1-20) - PICTORIAL INDEX, LOADER HYDRAULIC CIRCUIT, STEERING PUMP TO CYLINDERS, TWO SPOOL CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, hose separator to pressure Pg. 8-69

1шт.

reducing valve

1шт.

2

Hose, pressure reducing valve to Pg. 8-69

1шт.

elbow at steering pump

1шт.

3

Tube, hose separator to hose at Pg. 8-69

1шт.

hydraulic reservoir

1шт.

4

Hose, tube to hydraulic reservoir Pg. 8-69

1шт.

5

Hose, remote control to hose Pg's. 8-53,8-55

1шт.

separator, hydraulic reservoir and

1шт.

pressure reducing valve ports

1шт.

6

Hose, hose separator to remote Pg's. 8-53,8-55

1шт.

control

1шт.

7

Hose, hose separator to ports 1A Pg. 8-57

1шт.

and 2A

1шт.

8

Hose, hose separator to ports 1B Pg. 8-57

1шт.

and 2B

1шт.

9

Hose, inlet and outlet section to Pg. 8-57

1шт.

tee at port 1A

1шт.

10

Supply tube, right-hand, at valve Pg. 8-13

1шт.

to lift cylinders

1шт.

11

Supply tube, left-hand, at valve to Pg. 8-13

1шт.

lift cylinders

1шт.

12

Supply tube, to rod end of lift Pg. 8-13

1шт.

cylinder

1шт.

13

Supply tube, to closed end of lift Pg. 8-13

1шт.

cylinder

1шт.

14

Hose, to rod end of lift cylinder Pg. 8-13

1шт.

15

Hose, to closed end of lift Pg. 8-13

1шт.

cylinder

1шт.

16

Tube, to rod end of lift cylinder Pg. 8-13

1шт.

17

Supply tube, right-hand, to bucket Pg. 8-15

1шт.

cylinder

1шт.

18

Supply tube, left-hand, to bucket Pg. 8-15

1шт.

cylinder

1шт.

19

Hose, tube to rod end of bucket Pg. 8-15

1шт.

cylinder

1шт.

20

Hose, tube to closed end of bucket Pg. 8-15

1шт.

cylinder

1шт.

21

Tube, bucket cylinder, closed end Pg. 8-15

1шт.
