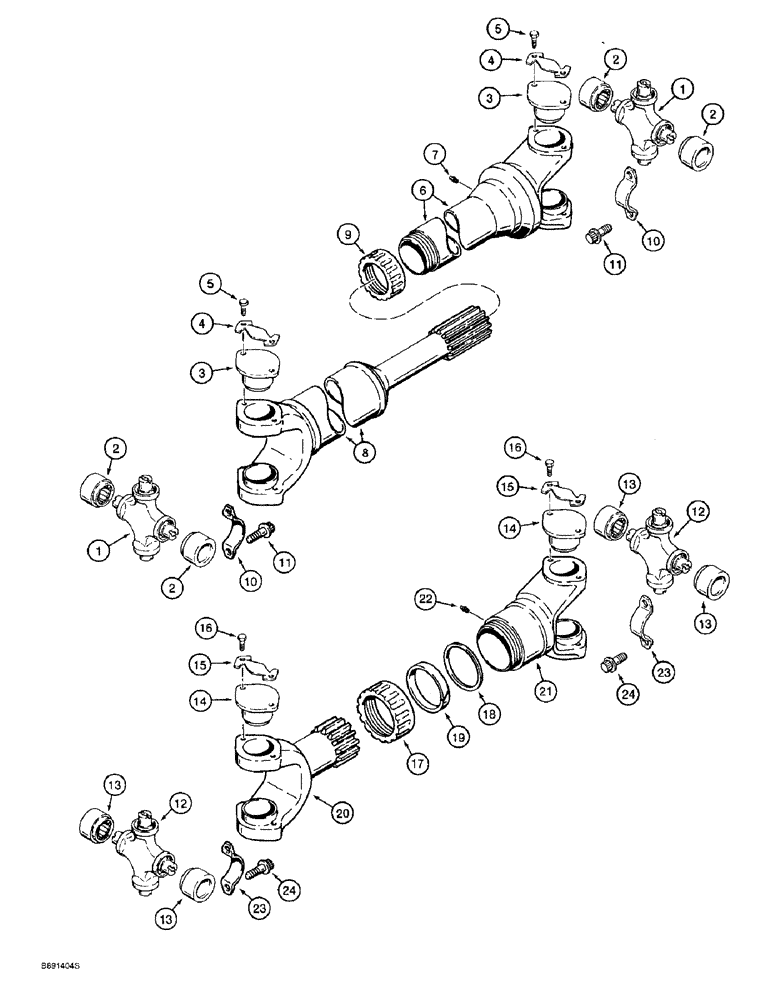

Запчасти Case 821B (6-62) - CENTER AND REAR DRIVE SHAFT, CENTER DRIVE SHAFT, REAR DRIVE (06) - POWER TRAIN

103711A1

STEERING SHAFT

SHAFT ASSEMBLY - drive, center, includes: Ref. 1 - 9

1шт.

120245A1

SPIDER

KIT - universal joint, journal and bearing, includes: Ref. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - cap, large

2шт.

3

NSS

NOT SOLD SEPARAT

BEARING - cap, small, with flange

2шт.

4

S300317

SUPPORT

STRAP - retaining, Serial Range: bearing-yoke

2шт.

5

S300316

BOLT

BOLT - special, bearing strap

4шт.

6

S300314

HALF SHAFT

YOKE - slip, transmission end

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

8

120252A1

COUPLING

YOKE - spline, axle end

1шт.

9

S300318

CAP

SEAL - dust, drive shaft

1шт.

10

L125187

SUPPORT

STRAP - retaining, bearing

4шт.

11

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Bearing strap 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.

103714A1

DRIVE SHAFT

SHAFT ASSEMBLY - drive, rear axle, includes: Ref. 12 - 22

1шт.

120245A1

SPIDER

KIT - universal joint, journal and bearing, includes: Ref. 12 - 16

2шт.

12

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - cap, large

2шт.

14

NSS

NOT SOLD SEPARAT

BEARING - cap, small, with flange

2шт.

15

S300317

SUPPORT

STRAP - retaining, Serial Range: bearing-yoke

2шт.

16

S300316

BOLT

BOLT - special, bearing strap

4шт.

17

S300345

CAP

- dust

1шт.

18

S300646

WASHER

WASHER - steel

1шт.

19

S300647

WASHER

- cork

1шт.

20

120246A1

COUPLING

YOKE - spline, axle end

1шт.

21

S300344

YOKE

- slip, transmission end

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

23

L125187

SUPPORT

STRAP - retaining, bearing

4шт.

24

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Bearing strap 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.
