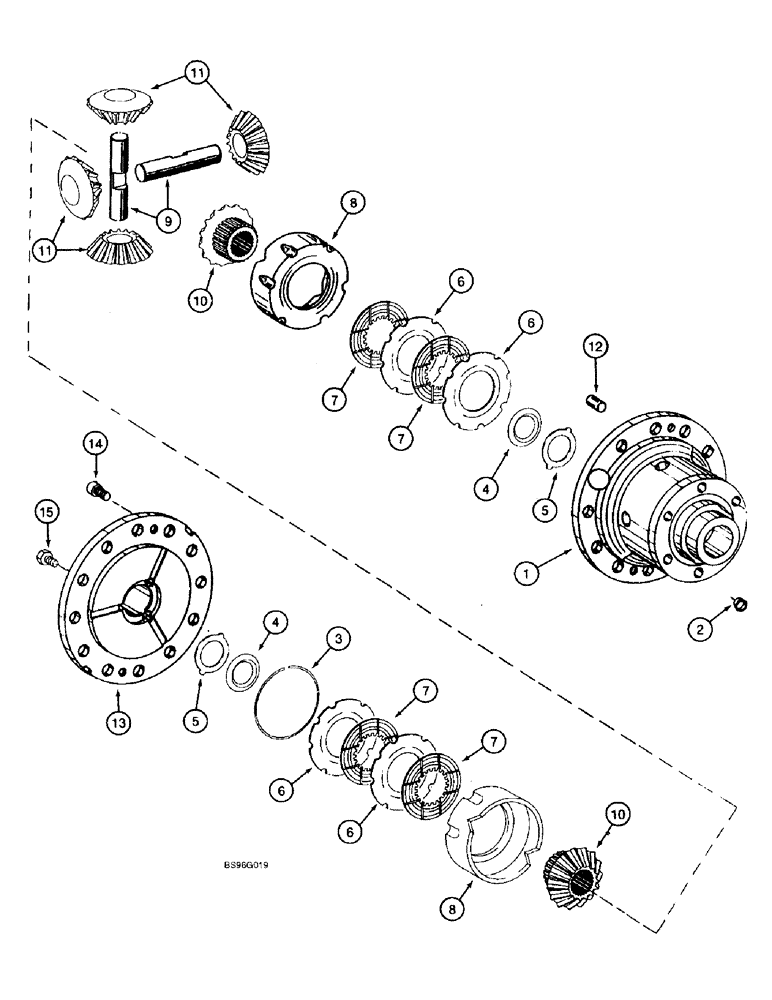

Запчасти Case 821B (6-59A) - REAR AXLE DIFFERENTIAL, 229848A1 AXLE (06) - POWER TRAIN

229848A1

AXLE

ASSEMBLY - rear, ZF No. 4474 005 184, parts list Figs. 6-50 - 6-59A, includes: Ref. 1 - 15

1шт.

232423A1

DIFFERENTIAL

CARRIER ASSEMBLY - includes limited slip differential, includes parts in this figure and Fig. 6-57A, includes: Ref. 1 - 15

1шт.

184721A1

DIFFERENTIAL

ASSEMBLY - limited slip, rear axle, includes: Ref. 1 - 15

1шт.

1

184722A1

HOUSING

- differential

1шт.

2

177715A1

SEAL

SEAL - housing

6шт.

3

119329A1

RING, SNAP

RING - retaining

1шт.

4

119330A1

THRUST WASHER

- thrust

2шт.

5

242180A1

THRUST WASHER

- tab

2шт.

6

230548A1

THRUST WASHER

WASHER - thrust, outer clutch

4шт.

6

230549A1

DISC

- 2.4 mm, outer clutch

4шт.

6

230550A1

DISC

- 2.3 mm, outer clutch

4шт.

6

230551A1

DISC

- 2.5 mm, outer clutch

4шт.

7

177732A1

DISC

- inner clutch

4шт.

8

119337A1

RING, SNAP

RING - pressure

2шт.

9

119338A1

SHAFT

- pinion

2шт.

10

119339A1

PINION

GEAR - side, 16 teeth

2шт.

11

119340A1

PINION

GEAR - pinion, 11 teeth

4шт.

12

119341A1

PIN

- drive

12шт.

13

184724A1

COVER

- housing

1шт.

14

193152A1

BOLT

- special, small

2шт.

15

184725A1

BOLT

BOLT - special, large

12шт.
