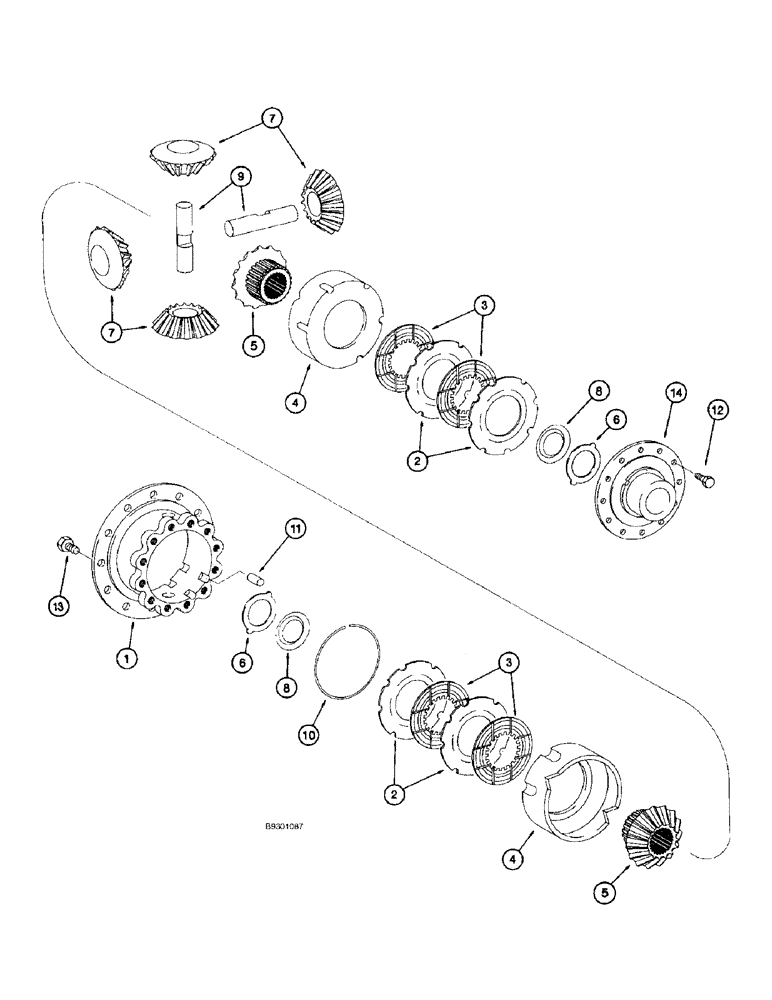

Запчасти Case 821B (6-58) - REAR AXLE DIFFERENTIAL, 107935A1 AND 231370A1 AXLES (06) - POWER TRAIN

107935A1

AXLE

ASSEMBLY - rear, ZF No. 4474 005 149, parts list Fig. 6-50 - 6-58, includes: Ref. 1 - 14

1шт.

231370A1

4WD AXLE ASSY

AXLE ASSEMBLY - rear, ZF No. 4474 005 186, parts list Fig. 6-50 - 6-58, includes: Ref. 1 - 14

1шт.

119219A1

HOUSING ASSY.

CARRIER ASSEMBLY - includes limited slip differential, includes parts in this figure and Fig. 6-56, includes: Ref. 1 - 14

1шт.

119326A1

DIFFERENTIAL

ASSEMBLY - limited slip, rear axle, includes: Ref. 1 - 14

1шт.

1

119327A1

HOUSING

- differential

1шт.

2

230548A1

THRUST WASHER

WASHER - thrust, outer clutch, replaces 119332A1 disc

1шт.

2

230549A1

DISC

- 2.4 mm, outer clutch, replaces 119333A1 disc

1шт.

2

230550A1

DISC

- 2.3 mm, outer clutch, replaces 119334A1 disc

1шт.

2

230551A1

DISC

- 2.5 mm, outer clutch, replaces 119335A1 disc

1шт.

3

177732A1

DISC

- replaces 119336A1 disc

4шт.

4

119337A1

RING, SNAP

RING - pressure

2шт.

5

119339A1

PINION

GEAR - side, 16 teeth

2шт.

6

119331A1

THRUST WASHER

- thrust, outer

2шт.

7

119340A1

PINION

GEAR - pinion, 11 teeth, pinion

4шт.

8

119330A1

THRUST WASHER

- thrust, inner

2шт.

9

119338A1

SHAFT

- pinion

2шт.

10

119329A1

RING, SNAP

RING - retaining

1шт.

11

119341A1

PIN

- drive

12шт.

12

119343A1

SCREW

BOLT - hex, self-locking, special, housing cover

12шт.

13

119344A1

SCREW

BOLT - hex, self-locking, special, housing

12шт.

14

119342A1

COVER

- housing

1шт.
