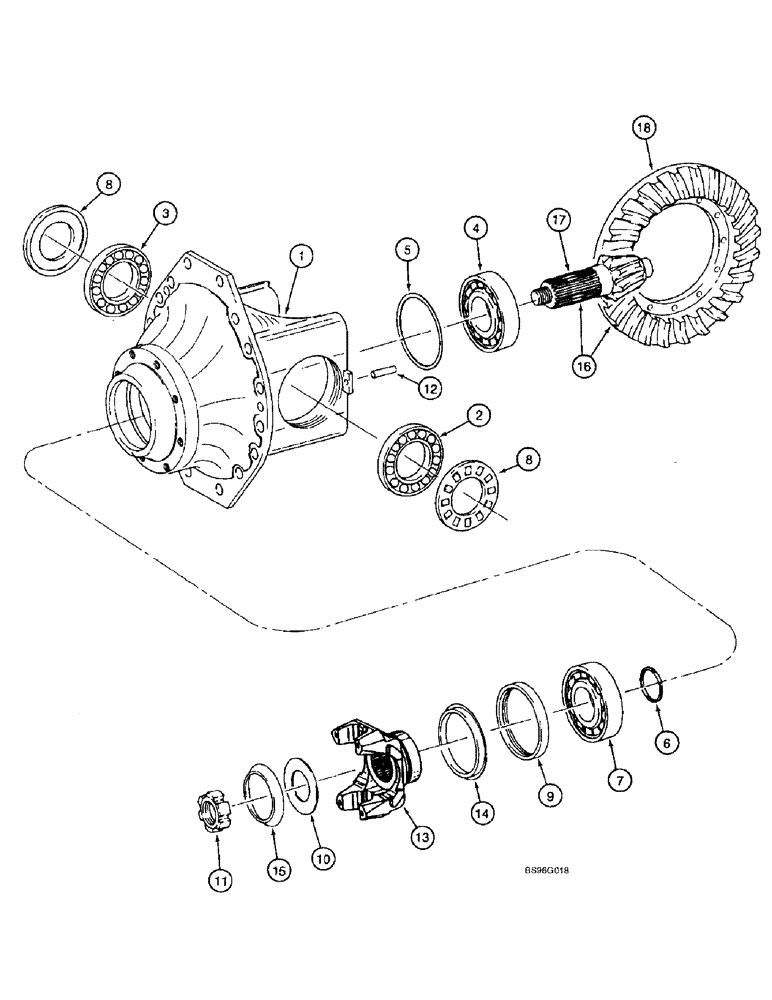

Запчасти Case 821B (6-57A) - REAR AXLE DIFFERENTIAL CARRIER, 229848A1 AXLE (06) - POWER TRAIN

229848A1

AXLE

ASSEMBLY - rear, ZF No. 4474 005 184, parts list Figs. 6-50 - 6-59A, includes: Ref. 1 - 17

1шт.

232423A1

DIFFERENTIAL

CARRIER ASSEMBLY - includes limited slip differential, parts list for differential, Fig. 6-59A, includes: Ref. 1 - 17

1шт.

1

242178A1

HOUSING

CASE - carrier

1шт.

2

119222A1

ROLLER BEARING

- tapered roller, right-hand

1шт.

3

119223A1

ROLLER BEARING

- tapered roller, left-hand

1шт.

4

119224A1

ROLLER BEARING

- tapered roller, front

1шт.

5

119225A1

SHIM

- 0.7 mm thick

1шт.

5

119226A1

BLOCK

SHIM - 0.8 mm thick

1шт.

5

119227A1

BLOCK

SHIM - 0.9 mm thick

1шт.

5

119228A1

BLOCK

SHIM - 1.0 mm thick

1шт.

5

119229A1

BLOCK

SHIM - 1.1 mm thick

1шт.

5

119230A1

BLOCK

SHIM - 1.2 mm thick

1шт.

5

119231A1

BLOCK

SHIM - 1.3 mm thick

1шт.

5

119233A1

BLOCK

SHIM - 1.4 mm thick

1шт.

5

119293A1

BLOCK

SHIM - 1.5 mm thick

1шт.

5

119294A1

BLOCK

SHIM - 0.2 mm thick

1шт.

5

119295A1

BLOCK

SHIM - 0.1 mm thick

1шт.

6

119296A1

BLOCK

SPACER - 8.8 mm

1шт.

6

898117H1

RING, SNAP

SPACER - 8.7 mm

1шт.

6

898456H1

RING, SNAP

SPACER - 8.6 mm

1шт.

6

898451H1

SNAP RING

SPACER - 8.5 mm

1шт.

6

898446H1

RING, SNAP

SPACER - 8.4 mm

1шт.

6

119296A1

BLOCK

SPACER - 8.8 mm, replaces 898441H1 spacer

1шт.

6

119301A1

BLOCK

SPACER - 8.9 mm

1шт.

6

119305A1

BLOCK

SPACER - 9.1 mm

1шт.

6

119309A1

BLOCK

SPACER - 9.2 mm

1шт.

6

119310A1

BLOCK

SPACER - 9.3 mm

1шт.

6

119311A1

BLOCK

SPACER - 9.4 mm

1шт.

7

119312A1

ROLLER BEARING

- tapered roller, rear

1шт.

8

119313A1

NUT

- adjusting

2шт.

9

119315A1

SEAL

- shaft

1шт.

10

119316A1

WASHER

- flat

1шт.

11

119317A1

NUT

- hex slotted, pinion

1шт.

12

838-5636

LOCK PIN,M6 x 36, Slotted

PIN - roll, 6 x 36 mm

2шт.

13

119321A1

FLANGE

- input

1шт.

14

119322A1

PROTECTOR

SPACER - flange

1шт.

15

119323A1

WASHER

- thrust

1шт.

242179A1

BEVEL GEAR

GEAR AND PINION ASSEMBLY - differential

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - pinion, differential

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.
