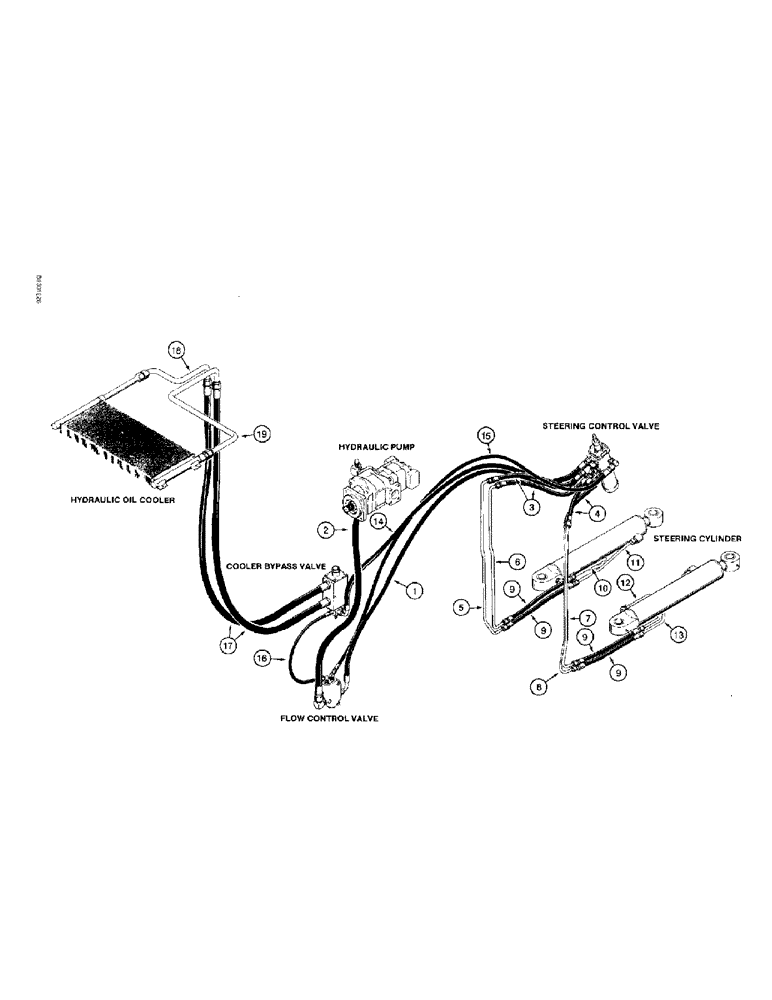

Запчасти Case 821B (1-18) - PICTORIAL INDEX, BASIC HYDRAULIC CIRCUIT, LOADER CONTROL VALVE SUPPLY AND RETURN LINES (00) - PICTORIAL INDEX

1

Suction hose, hydraulic reservoir Pg. 8-5

1шт.

to tube at pump

1шт.

2

Tube, from suction hose at Pg. 8-5

1шт.

hydraulic reservoir to steering and

1шт.

equipment pump

1шт.

3

Supply hose, elbow at pump to elbow Pg. 8-5

1шт.

at upper front port of unloading

1шт.

valve

1шт.

4

Tube, from tee at front port of Pg. 8-5

1шт.

unloading valve to elbow at front

1шт.

port of flow control valve

1шт.

5

Supply tube, from tee at unloading Pg. 8-5

1шт.

valve to hose to loader control

1шт.

valve

1шт.

6

Supply hose, from tube at unloading Pg. 8-5

1шт.

valve to tube at loader control

1шт.

valve

1шт.

7

Supply tube, from hose to elbow at Pg. 8-5

1шт.

upper inlet port of loader control

1шт.

valve

1шт.

8

Return tube, from elbow at rear Pg. 8-7

1шт.

outlet port of loader control valve

1шт.

, Serial Range: -hose

1шт.

9

Return hose, tube at loader control Pg. 8-7

1шт.

valve to tube at cooler bypass

1шт.

valve

1шт.

10

Return tube, hose from loader Pg. 8-7

1шт.

control valve to elbow at manifold

1шт.

to cooler bypass valve

1шт.

11

Tube, from elbow at manifold to Pg. 8-7

1шт.

cooler bypass valve to adapter at

1шт.

unloading valve

1шт.

12

Hose, cooler bypass valve to formed Pg. 8-9

1шт.

tube at tee

1шт.

13

Tube, hose at cooler bypass valve Pg. 8-9

1шт.

to tee tube to oil filter

1шт.

14

Tube, tee at tube from cooler Pg. 8-9

1шт.

bypass valve to adapter at oil

1шт.

filter

1шт.

15

Tube, adapter at oil filter to hose Pg. 8-11

1шт.

at hydraulic reservoir

1шт.

16

Hose, tube at oil filter to Pg. 8-11

1шт.

hydraulic reservoir

1шт.
