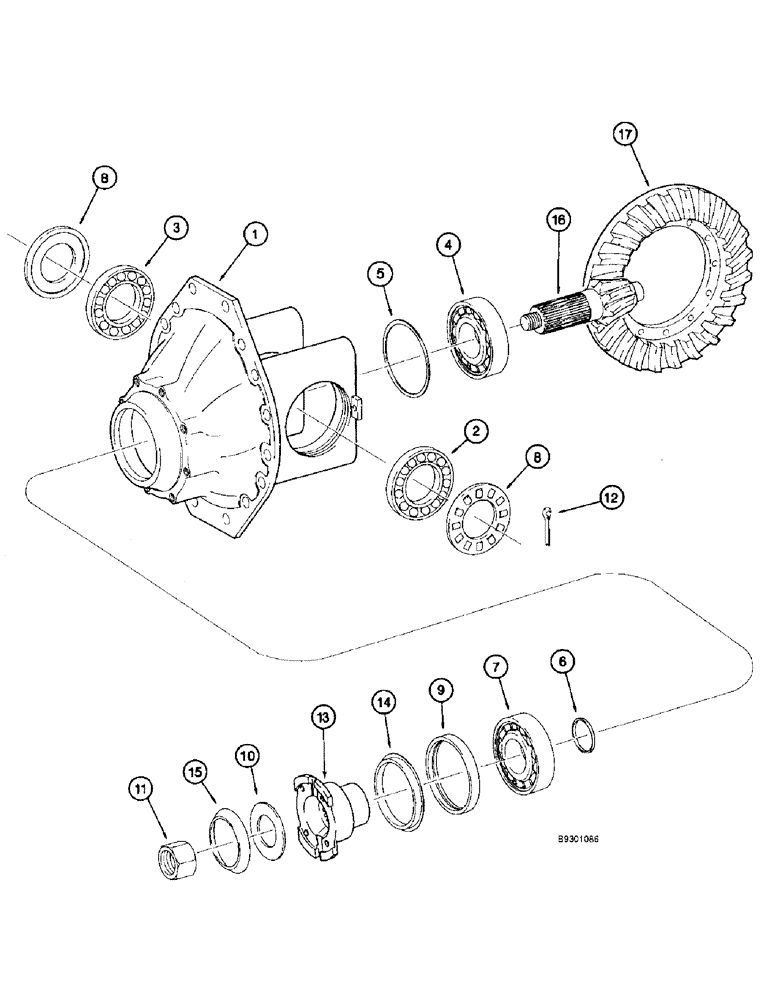

Запчасти Case 821B (6-56) - REAR AXLE DIFFERENTIAL CARRIER, 107935A1 AND 231370A1 AXLES (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
107935A1
AXLE
ASSEMBLY - rear, ZF No. 4474 005 149, parts list Figs. 6-50 - 6-58, includes: Ref. 1 - 17
1шт.
231370A1
4WD AXLE ASSY
AXLE ASSEMBLY - rear, ZF No. 4474 005 186, parts list pages 6-50 - 6-58, includes: Ref. 1 - 17
1шт.
119219A1
HOUSING ASSY.
CARRIER ASSEMBLY - includes limited slip differential, rear axle, parts list Fig. 6-58, includes: Ref. 1 - 17
1шт.
1
119221A1
HOUSING ASSY.
CASE - carrier
1шт.
2
119222A1
ROLLER BEARING
- tapered roller, right-hand
1шт.
3
119223A1
ROLLER BEARING
- tapered roller, left-hand
1шт.
4
119224A1
ROLLER BEARING
- tapered roller, front
1шт.
5
119225A1
SHIM
- 0.7 mm thick
1шт.
5
119226A1
BLOCK
SHIM - 0.8 mm thick
1шт.
5
119227A1
BLOCK
SHIM - 0.9 mm thick
1шт.
5
119228A1
BLOCK
SHIM - 1.0 mm thick
1шт.
5
119229A1
BLOCK
SHIM - 1.1 mm thick
1шт.
5
119230A1
BLOCK
SHIM - 1.2 mm thick
1шт.
5
119231A1
BLOCK
SHIM - 1.3 mm thick
1шт.
5
119233A1
BLOCK
SHIM - 1.4 mm thick
1шт.
5
119293A1
BLOCK
SHIM - 1.5 mm thick
1шт.
5
119294A1
BLOCK
SHIM - 0.2 mm thick
1шт.
5
119295A1
BLOCK
SHIM - 0.1 mm thick
1шт.
6
119296A1
BLOCK
SPACER - 8.8 mm
1шт.
6
898117H1
RING, SNAP
SPACER - 8.7 mm
1шт.
6
898456H1
RING, SNAP
SPACER - 8.6 mm
1шт.
6
898451H1
SNAP RING
SPACER - 8.5 mm
1шт.
6
898446H1
RING, SNAP
SPACER - 8.4 mm
1шт.
6
119296A1
BLOCK
SPACER - 8.8 mm, replaces 898441H1 spacer
1шт.
6
119301A1
BLOCK
SPACER - 8.9 mm
1шт.
6
119305A1
BLOCK
SPACER - 9.1 mm
1шт.
6
119309A1
BLOCK
SPACER - 9.2 mm
1шт.
6
119310A1
BLOCK
SPACER - 9.3 mm
1шт.
6
119311A1
BLOCK
SPACER - 9.4 mm
1шт.
7
119312A1
ROLLER BEARING
- tapered roller, rear
1шт.
8
119313A1
NUT
- adjusting
2шт.
9
119315A1
SEAL
- shaft
1шт.
10
119316A1
WASHER
- flat
1шт.
11
119317A1
NUT
- hex slotted, pinion
1шт.
12
119318A1
SPLIT PIN/SAFETY PIN
PIN - cotter
2шт.
13
119321A1
FLANGE
- input
1шт.
14
119322A1
PROTECTOR
SPACER - flange
1шт.
15
119323A1
WASHER
- thrust
1шт.
119325A1
GEAR-SET
GEAR AND PINION ASSEMBLY - differential
1шт.
16
NSS
NOT SOLD SEPARAT
SHAFT - pinion, differential
1шт.
17
NSS
NOT SOLD SEPARAT
GEAR - ring, differential
1шт.
Выбрано товаров: 41
