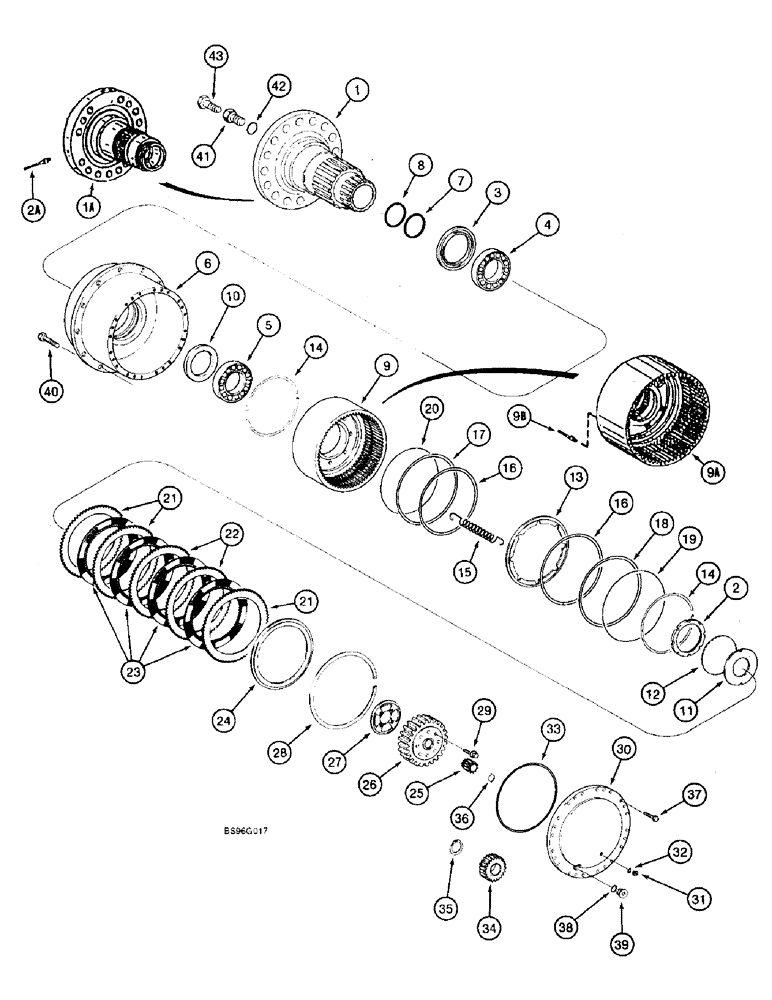

Запчасти Case 821B (6-52) - REAR AXLE HUB, DISC BRAKES AND PLANETARY (06) - POWER TRAIN

107935A1

AXLE

ASSEMBLY - rear, ZF No. 4474 005 149, parts list Figs. 6-50 - 6-58, includes: Ref. 1-14

1шт.

231370A1

4WD AXLE ASSY

AXLE ASSEMBLY - rear, ZF No. 4474 005 186, parts list Figs. 6-50 - 6-58, includes: Ref. 1-14

1шт.

229848A1

AXLE

ASSEMBLY - rear, ZF No. 4474 005 184, parts list Figs. 6-50 - 6-59A, includes: Ref. 1-14

1шт.

119530A1

HUB

SPINDLE ASSEMBLY - axle, consists of Ref. 1 and 2, 107935A1 and 231370A1 axles

2шт.

242194A1

HUB

SPINDLE ASSEMBLY - axle, consists of Ref. 1 and 2, 229848A1 axle, includes: Ref. 1, 1A and 2

2шт.

1

NSS

NOT SOLD SEPARAT

SPINDLE - 119530A1 spindle assembly, 107935A1 and 231370A1 axles

1шт.

1a

NSS

NOT SOLD SEPARAT

SPINDLE - 242194A1 spindle assembly, 229848A1 axle

1шт.

2

119386A1

SLOTTED NUT

- slotted

1шт.

2a

242196A1

PLUG

- 242194A1 spindle, 229848A1 axle

8шт.

3

1964236C1

SEAL,136.8mm ID x 141.3mm OD x 13mm Thk

SEAL - shaft

2шт.

4

119390A1

ROLLER BEARING,105mm ID x 160mm OD x 35mm W

BEARING - tapered roller, inner

2шт.

5

119388A1

ROLLER BEARING,130mm ID x 230mm OD x 43.75mm W

BEARING - tapered roller, outer

2шт.

6

119545A1

HUB

- wheel

2шт.

7

119392A1

O-RING,94.4mm ID x 3.1mm Width

- small, spindle

2шт.

8

119393A1

O-RING,100mm ID x 4mm Width

- large, spindle

2шт.

9

119548A1

GEAR WHEEL

GEAR - ring, planetary, 107935A1 and 231370A1 axles

2шт.

9a

242198A1

HOUSING

GEAR - ring, planetary, 229848A1 axle

2шт.

9b

242167A1

PLUG

- special

4шт.

10

119401A1

WASHER

RING - 4.70 mm thick

1шт.

10

119402A1

WASHER

RING - 5.00 mm thick, no longer available

1шт.

10

242205A1

WASHER

RING - 5.05 mm thick

1шт.

10

242207A1

WASHER

RING - 5.10 mm thick

1шт.

10

242209A1

WASHER

RING - 5.15 mm thick

1шт.

10

242212A1

WASHER

RING - 5.20 mm thick

1шт.

10

242214A1

WASHER

RING - 5.25 mm thick

1шт.

10

119403A1

WASHER

RING - 5.30 mm thick

1шт.

10

119404A1

WASHER

RING - 5.35 mm thick

1шт.

10

119405A1

WASHER

RING - 5.40 mm thick

1шт.

10

119406A1

WASHER

RING - 5.45 mm thick

1шт.

10

119407A1

WASHER

RING - 5.50 mm thick

1шт.

10

119408A1

WASHER

RING - 5.55 mm thick

1шт.

10

119410A1

WASHER

RING - 5.60 mm thick

1шт.

10

119412A1

WASHER

RING - 5.65 mm thick

1шт.

10

119413A1

WASHER

RING - 5.70 mm thick

1шт.

10

119414A1

WASHER

RING - 5.75 mm thick

1шт.

10

119415A1

WASHER

RING - 5.80 mm thick

1шт.

10

119416A1

WASHER

RING - 5.85 mm thick, no longer available

1шт.

10

119417A1

WASHER

RING - 6.06 mm thick

1шт.

11

119418A1

THRUST WASHER

PLATE - thrust

2шт.

12

119419A1

WASHER

- tab, 107935A1 and 231370A1 axles

2шт.

12

242216A1

WASHER

- tab, 229848A1 axle

2шт.

13

119421A1

PISTON

- hub

2шт.

14

119422A1

CIRCLIP

RING - retaining, 107935A1 and 231370A1 axles

4шт.

14

242171A1

CIRCLIP

RING - retaining, 229848A1 axle

4шт.

REF

INSTRUCTION

AXLE ASSEMBLY - rear, continued from previous figure, includes: Ref. 15 - 43

1шт.

15

119424A1

TENSION SPRING

SPRING - tension, axles 107935A1 and 231370A1, replaces 123601A1 spring

16шт.

15

123735A1

TENSION SPRING

SPRING - tension, 229848A1 axle

16шт.

16

119425A1

WIPER SEAL

SEAL, HYD-CYLINDER, U-ring

4шт.

119425A1 IS 247.5MM O.D., 240.9MM I.D. PER INFO FROM ZF

1шт.

17

119426A1

BACK-UP RING

RING - backup, inner

2шт.

18

119427A1

BACK-UP RING

RING - backup, outer

2шт.

119427A1 BACK UP RINGS. THEY ADVISE THAT DUE TO THE ELASTICITY

1шт.

19

119428A1

GUIDE RING

RING - piston, outer

2шт.

20

119429A1

GUIDE RING

RING - piston, inner

2шт.

21

119430A1

NOTCHED DISK

DISC - outer clutch, 4.5 mm

4шт.

22

119431A1

NOTCHED DISK

DISC - wavy, 4.0 mm, outer clutch, 10 used on 229848A1 axle

4-10шт.

22

119430A1

NOTCHED DISK

DISC - outer clutch, 4.5 mm

4шт.

23

119433A1

DISC

- flat, inner clutch

8шт.

24

119434A1

BLOCK

SHIM - end

2шт.

25

119551A1

SHAFT

- sun gear, 27 teeth

2шт.

26

242221A1

GEAR

CARRIER - disc, replaces 119436A1 carrier

2шт.

27

242222A1

RING

PLATE - carrier, 107935A1 and 231370A1 axles replaces 119437A1 plate

2шт.

28

119438A1

CIRCLIP

RING - snap, used with carrier 119436A1 and plate 119437A1

2шт.

29

626-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9, used with carrier 119436A1 and plate 119437A1

8шт.

30

119440A1

CYLINDER END CAP

CARRIER - planetary

2шт.

31

119559A1

PLUG

- 16 x 1.5 mm, 107935A1 and 231370A1 axles

2шт.

31

S301913

PLUG

- special, 229848A1 axle

2шт.

32

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

- plug

2шт.

32

S301617

O-RING,2mm Thk x 13mm ID

O-RING - plug, 229848A1 axle

2шт.

33

119443A1

O-RING,312mm ID x 2.5mm Width

SEAL - carrier

2шт.

34

123775A1

PINION

GEAR - pinion, planetary

8шт.

35

A52147

RING

- retaining

8шт.

36

119453A1

THRUST WASHER

- thrust, 5.0 mm

1шт.

36

119456A1

THRUST WASHER

- thrust, 6.0 mm

1шт.

36

119459A1

THRUST WASHER

- thrust, 6.3 mm

1шт.

36

119461A1

THRUST WASHER

- thrust, 6.5 mm

1шт.

36

119463A1

THRUST WASHER

- thrust, 3.3 mm

1шт.

36

119464A1

THRUST WASHER

- thrust, 2.9 mm

1шт.

36

119465A1

THRUST WASHER

- thrust, 3.5 mm

1шт.

36

119467A1

THRUST WASHER

- thrust, 3.7 mm

1шт.

36

119468A1

THRUST WASHER

- thrust, 3.9 mm

1шт.

36

119470A1

THRUST WASHER

- thrust, 4.1 mm

1шт.

37

A52314

BOLT

- hex, 14 x 40 mm, class 10.9

48шт.

38

A52372

O-RING,2.5mm Thk x 38mm ID

- plug

2шт.

39

119471A1

PLUG

- hex

2шт.

40

119563A1

WHEEL BOLT

BOLT - special, wheel

32шт.

41

123622A1

ADAPTER

- bolt, valve

2шт.

42

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

- adapter

2шт.

43

3222214R1

VALVE

- bleeder

2шт.

IT IS CORRECT TO USE THIS PART WITH BOTH 119426A1 AND

1шт.

OF THE SEAL RING, IT CAN BE USED FOR BOTH DIAMETERS OF THE

1шт.
