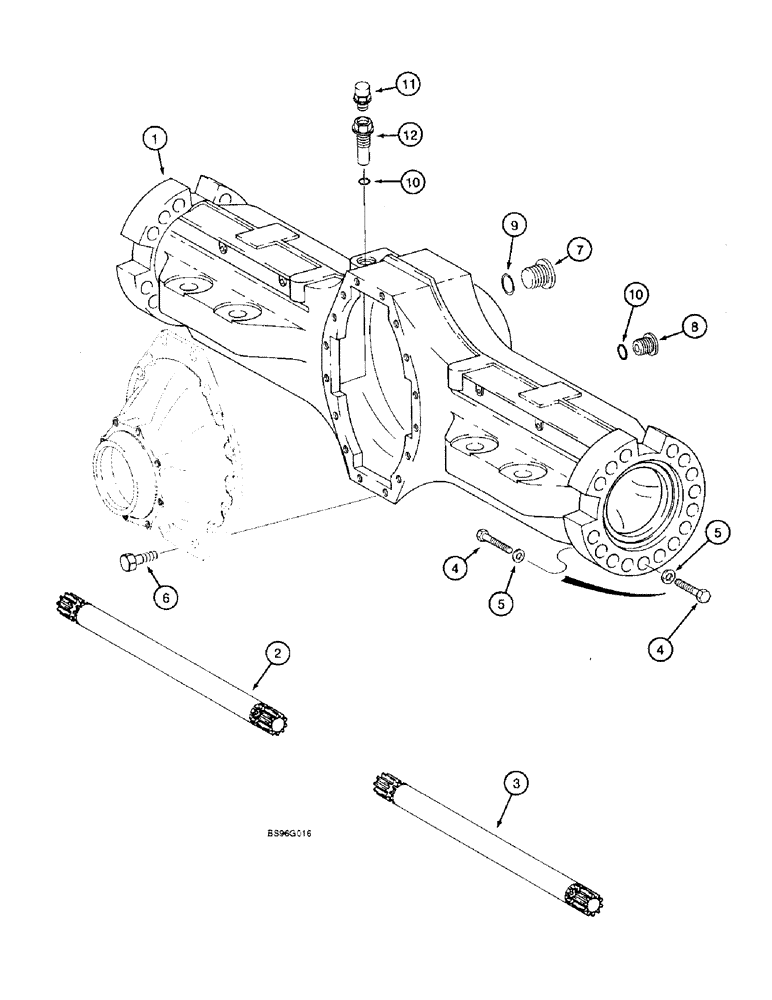

Запчасти Case 821B (6-50) - REAR AXLE HOUSING (06) - POWER TRAIN

107935A1

AXLE

ASSEMBLY - rear, ZF No. 4474 005 149, parts list Figs. 6-50 - 6-58, includes: Ref. 1-12

1шт.

On 107935A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231370A1 and 229848A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

231370A1

4WD AXLE ASSY

AXLE ASSEMBLY - rear, ZF No. 4474 005 186, parts list Figs. 6-50 - 6-58, includes: Ref. 1-12

1шт.

On 107935A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231370A1 and 229848A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

229848A1

AXLE

ASSEMBLY - rear, ZF No. 4474 005 184, parts list Figs. 6-50 - 6-59A, includes: Ref. 1-12

1шт.

On 107935A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231370A1 and 229848A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

1

119376A1

HOUSING

- axle, 107935A1 and 231370A1 axles

1шт.

1

242187A1

HOUSING

- axle, 229848A1 axle

1шт.

2

119377A1

SHAFT

- axle, 1033 mm long

1шт.

3

119378A1

SHAFT

- axle, 1103 mm long

1шт.

4

119379A1

SCREW

BOLT - hex, special, 20 x 2 x 85 mm, class 10.9, 107935A1 and 231370A1 axles

32шт.

On 107935A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231370A1 and 229848A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

4

242189A1

SCREW

BOLT - hex, special, 229848A1 axle, 20 x 2.5 x 85

32шт.

On 107935A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231370A1 and 229848A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

5

119381A1

BEARING WASHER

WASHER - bearing cap

32шт.

On 107935A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231370A1 and 229848A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

6

A52094

FLANGE BOLT

BOLT - hex flange, special, differential to axle housing

16шт.

7

A48791

PLUG

- hex socket, 42 mm thread

1шт.

8

119349A1

PLUG

- axle housing, special

1шт.

9

A52372

O-RING,2.5mm Thk x 38mm ID

- plug, large

1шт.

10

A52097

O-RING,2mm Thk x 21mm ID

- plug, small

2шт.

11

A48855

VALVE

- breather

1шт.

12

8603256

PLUG

- axle housing, special

1шт.
