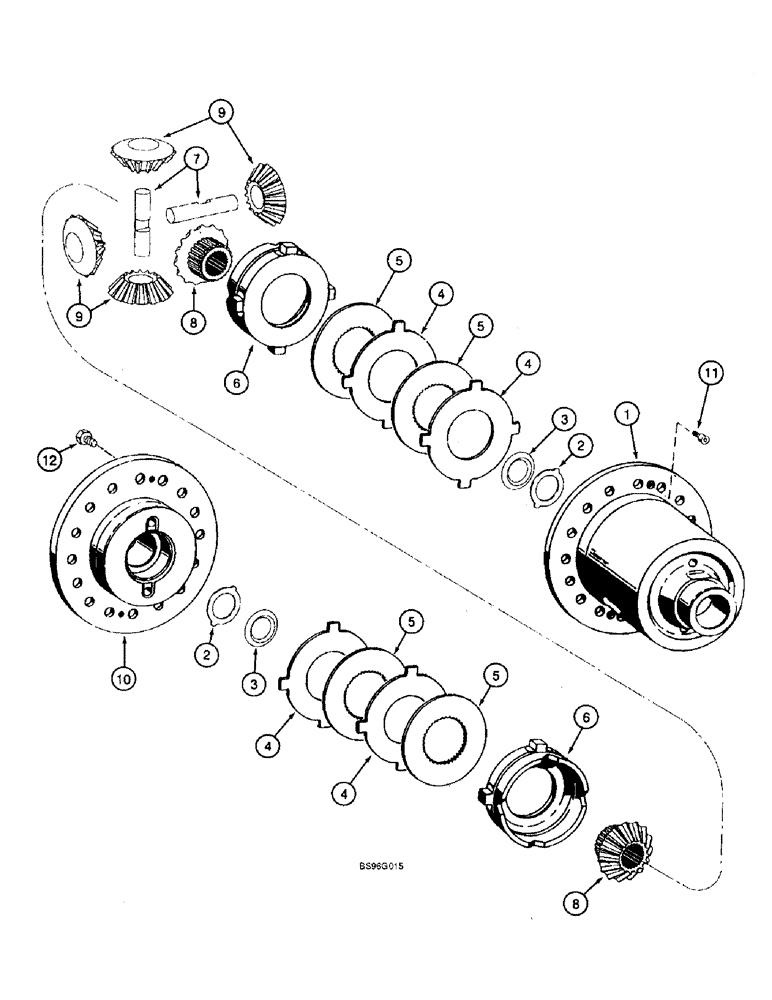

Запчасти Case 821B (6-49A) - FRONT AXLE DIFFERENTIAL, 229849A1 AXLE (06) - POWER TRAIN

229849A1

AXLE

ASSEMBLY - front, ZF No. 4474 006 111, parts list Figs. 6-40 - 6-49A, includes: Ref. 1 - 12

1шт.

232422A1

DIFFERENTIAL

CARRIER ASSEMBLY - includes differential, includes parts in this figure and Figs. 6-46 and 6-47A, includes: Ref. 1 - 12

1шт.

1

243353A1

HOUSING

- differential

1шт.

2

120017A1

THRUST WASHER

- thrust, outer

2шт.

3

120019A1

THRUST WASHER

- thrust, inner

2шт.

4

242154A1

CLUTCH DISC

DISC - 3.0mm

4шт.

4

242155A1

CLUTCH DISC

DISC - 2.9 mm

4шт.

4

242156A1

CLUTCH DISC

DISC - 3.1 mm

4шт.

4

242157A1

CLUTCH PLATE

DISC - 2.7 mm

4шт.

4

242158A1

CLUTCH PLATE

DISC - 3.3 mm

4шт.

5

242159A1

CLUTCH PLATE

DISC - inner clutch

4шт.

6

243354A1

THRUST RING

RING - pressure

2шт.

7

120020A1

PIN

- pinion

2шт.

8

242160A1

PINION

GEAR - side, 16 teeth

2шт.

9

120018A1

PINION

GEAR - pinion

4шт.

10

242161A1

COVER

- housing

1шт.

11

193152A1

BOLT

- special, housing

2шт.

12

184716A1

SCREW

BOLT - special, cover

20шт.
