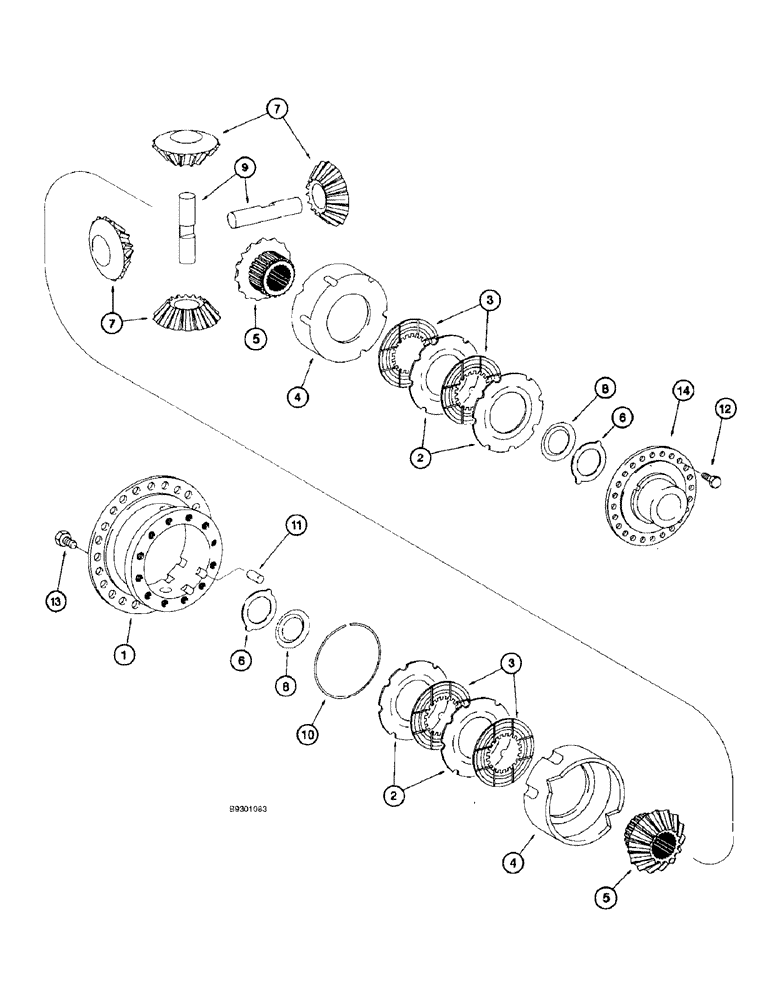

Запчасти Case 821B (6-48) - FRONT AXLE DIFFERENTIAL, 107934A1 AND 231369A1 AXLES (06) - POWER TRAIN

107934A1

4WD AXLE ASSY

AXLE ASSEMBLY - front, ZF No. 4474 006 086, parts list Figs. 6-40 - 6-48, includes: Ref. 1 - 14

1шт.

231369A1

4WD AXLE ASSY

AXLE ASSEMBLY - front, ZF No. 4474 006 112, parts list Figs. 6-40 - 6-48, includes: Ref. 1 - 14

1шт.

123598A1

DIFFERENTIAL

CARRIER ASSEMBLY - includes differential, includes parts in this figure and Fig. 6-46, includes: Ref. 1 - 14

1шт.

120000A1

DIFFERENTIAL

ASSEMBLY - limited slip, front axle, front axle, includes: Ref. 1 - 14

1шт.

1

120003A1

HOUSING

- differential

1шт.

2

120008A1

CLUTCH DISC

DISC - 3.5 mm

1шт.

2

120009A1

CLUTCH DISC

DISC - 3.0 mm

1шт.

2

120010A1

CLUTCH DISC

DISC - 2.9 mm

1шт.

2

120011A1

CLUTCH DISC

DISC - 2.8 mm

1шт.

2

120012A1

CLUTCH DISC

DISC - 2.7 mm

1шт.

3

120013A1

BLOCK

DISC - inner clutch

4шт.

4

120014A1

RING, SNAP

RING - pressure

2шт.

5

120016A1

PINION

GEAR - side, 16 teeth

2шт.

6

120017A1

THRUST WASHER

- thrust, outer

2шт.

7

120018A1

PINION

GEAR - pinion

4шт.

8

120019A1

THRUST WASHER

- thrust, inner

2шт.

9

120020A1

PIN

- pinion

2шт.

10

120021A1

RING, SNAP

RING - retaining

1шт.

11

120022A1

PIN

- drive

16шт.

12

120023A1

SCREW

BOLT - hex, self-locking, special, housing cover

16шт.

13

120024A1

SCREW

BOLT - hex, self-locking, special, housing

16шт.

14

120025A1

COVER

- housing

1шт.
