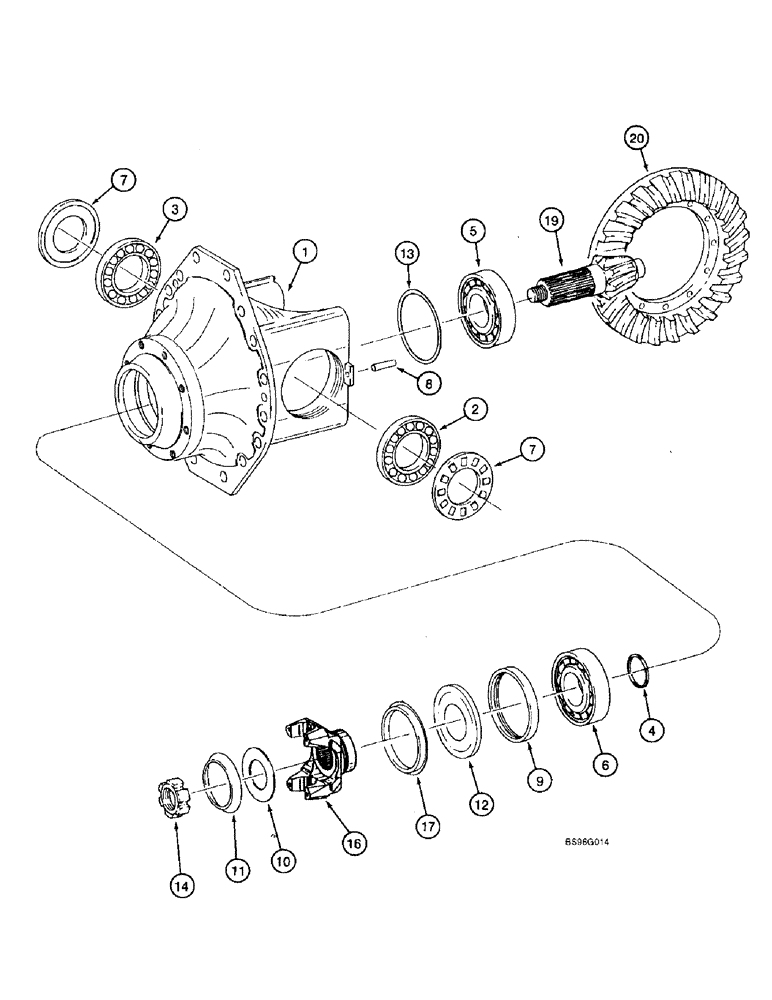

Запчасти Case 821B (6-47A) - FRONT AXLE DIFFERENTIAL CARRIER, 229849A1 AXLE (06) - POWER TRAIN

229849A1

AXLE

ASSEMBLY - front, ZF No. 4474 006 111 parts list Figs. 6-40 - 6-49A, includes: Ref. 1 - 20

1шт.

232422A1

DIFFERENTIAL

CARRIER ASSEMBLY - includes differential, front axle, parts list for differential page 6-49A, includes: Ref. 1 - 20

1шт.

1

123599A1

HOUSING

CASE - carrier

1шт.

2

119960A1

BEARING, ROLLER

BEARING - tapered roller, right-hand

1шт.

3

119961A1

BEARING, ROLLER,82.55mm ID x 133.35mm OD x 33.69mm W

BEARING - tapered roller, left-hand

1шт.

4

119962A1

RING

SPACER - 7.3 mm

1шт.

4

119963A1

SPACER

- 7.4 mm

1шт.

4

119964A1

SPACER

- 7.5 mm

1шт.

4

119965A1

SPACER

- 7.6 mm

1шт.

4

119966A1

SPACER

- 7.7 mm

1шт.

4

119967A1

SPACER

- 7.9 mm

1шт.

4

119968A1

SPACER

- 8.0 mm

1шт.

4

119969A1

SNAP RING

SPACER - 8.1 mm

1шт.

4

119970A1

SPACER

- 8.2 mm

1шт.

4

119971A1

RING, SNAP

SPACER - 8.3 mm

1шт.

4

119972A1

SPACER

- 8.4 mm

1шт.

4

119973A1

SPACER

- 8.5 mm

1шт.

4

119974A1

SPACER

- 8.6 mm

1шт.

4

119975A1

SPACER

- 8.7 mm

1шт.

4

119976A1

SPACER

- 8.8 mm

1шт.

4

119977A1

SHIM

SPACER - 8.9 mm

1шт.

4

119978A1

SPACER

- 9.0 mm

1шт.

5

81970C1

ROLLER BEARING

BEARING - tapered roller, front

1шт.

6

119979A1

ROLLER BEARING,60mm ID x 125mm OD x 37mm W

BEARING - tapered roller, rear

1шт.

6a

NSS

NOT SOLD SEPARAT

BEARING - cap bolts, not shown

2шт.

7

A48725

NUT

- adjusting

2шт.

8

838-5845

LOCK PIN,M8 x 45, Slotted

PIN - roll, 8 x 45 mm

2шт.

9

119980A1

SEAL,85mm ID x 140mm OD x 13mm Thk

- shaft

1шт.

REF. #9 - 119980A1 CONTINUE TO USE FOR ALL AXLES BEFORE AXLE SER #7038. USE NEW 373828A1 FOR AXLES BUILT 7038 AND AFTER

1шт.

10

119981A1

THRUST WASHER,51mm ID x 76.5mm OD x 5mm Thk

- flat, special

1шт.

11

119982A1

WASHER

- thrust, special

1шт.

12

119983A1

BAFFLE

RETAINER - oil seal

1шт.

13

119225A1

SHIM

- 0.7 mm thick

1шт.

13

119226A1

BLOCK

SHIM - 0.8 mm thick

1шт.

13

119227A1

BLOCK

SHIM - 0.9 mm thick

1шт.

13

119228A1

BLOCK

SHIM - 1.0 mm thick

1шт.

13

119229A1

BLOCK

SHIM - 1.1 mm thick

1шт.

13

119230A1

BLOCK

SHIM - 1.2 mm thick

1шт.

13

119231A1

BLOCK

SHIM - 1.3 mm thick

1шт.

13

119233A1

BLOCK

SHIM - 1.4 mm thick

1шт.

13

119293A1

BLOCK

SHIM - 1.5 mm thick

1шт.

14

119984A1

SLOTTED NUT

- hex, slotted, pinion

1шт.

16

119996A1

SHIN

FLANGE - coupling

1шт.

REF. #16 - 119996A1 CONTINUE TO USE FOR ALL AXLES BEFORE AXLE #7038. USE NEW 373829A1 FOR AXLES BUILT AFTER 7038 INCLUSIVE. 8 AUG 99.

1шт.

17

119998A1

BAFFLE

SPACER - flange

1шт.

REF. #17 - 119998A1 CONTINUE TO USE FOR ALL AXLES BEFORE AXLE #7038. USE NEW 373830A1 FOR AXLES BUILT AFTER 7038 INCLUSIVE. 8 AUG 99.

1шт.

242153A1

PINION

GEAR AND PINION ASSEMBLY - differential, includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

SHAFT - pinion, differential

1шт.

20

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.
