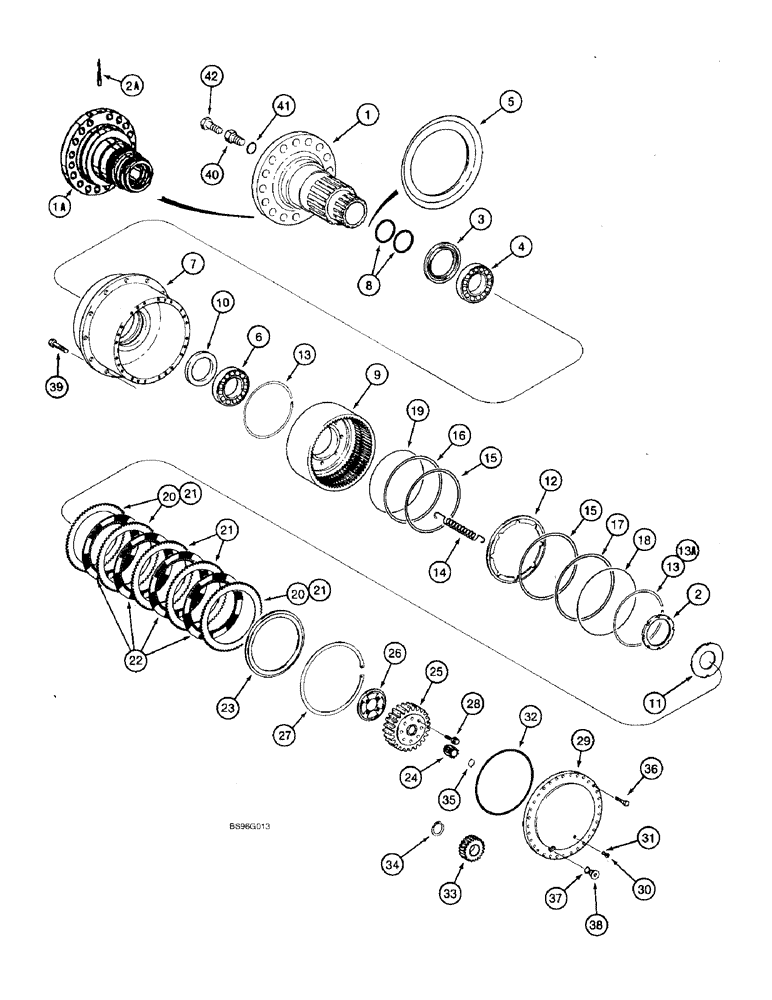

Запчасти Case 821B (6-42) - FRONT AXLE HUB, DISC BRAKES AND PLANETARY (06) - POWER TRAIN

107934A1

4WD AXLE ASSY

AXLE ASSEMBLY - front, ZF No. 4474 006 086, parts list Figs. 6-40 - 6-48, includes: Ref. 1 - 10

1шт.

231369A1

4WD AXLE ASSY

AXLE ASSEMBLY - front, ZF No. 4474 006 112, parts list Figs. 6-40 - 6-48, includes: Ref. 1 - 10

1шт.

229849A1

AXLE

ASSEMBLY - front, ZF No. 4474 006 111, parts list Figs. 6-40 - 6-49A, includes: Ref. 1 - 10

1шт.

120035A1

COIL ASSY.

SPINDLE ASSEMBLY - axle, 107934A1 and 231369A1 axles, includes: Ref. 1 - 10

2шт.

242166A1

HUB

SPINDLE ASSEMBLY - axle, 229849A1 axle, includes: Ref. 1, 1A and 2

2шт.

1

NSS

NOT SOLD SEPARAT

SPINDLE - 120035A1 spindle assembly, 107934A1 and 231369A1 axles

1шт.

1a

NSS

NOT SOLD SEPARAT

SPINDLE - 242166A1 spindle assembly, 229849A1 axle

1шт.

2

123625A1

SLOTTED NUT

- slotted

1шт.

2a

242167A1

PLUG

- special, 242166A1 spindle assembly

1шт.

3

120036A1

SEAL

SEAL - shaft

2шт.

4

120037A1

TAPERED BEARING

BEARING - tapered roller, inner

2шт.

5

120038A1

BAFFLE

SCREEN - spindle

2шт.

6

120039A1

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

BEARING - roller, outer

2шт.

7

120040A1

HUB

- wheel

2шт.

8

120041A1

O-RING,112mm ID x 32mm Width

- spindle

4шт.

9

120042A1

PINION

GEAR - ring, planetary, 107934A1 and 231369A1 axles

2шт.

9

242168A1

HUB

GEAR - ring, planetary, 229849A1 axle

2шт.

10

120043A1

RING

- 23.65 mm

1шт.

10

120044A1

RING

- 23.60 mm

1шт.

10

120045A1

SNAP RING

RING - 23.55 mm

1шт.

10

120047A1

RING

- 23.50 mm

1шт.

10

120049A1

SNAP RING

RING - 23.45 mm

1шт.

10

120051A1

RING

- 23.40 mm

1шт.

10

120052A1

SNAP RING

RING - 23.35 mm

1шт.

10

120055A1

RING

- 23.30 mm

1шт.

10

120058A1

SNAP RING

RING - 23.25 mm

1шт.

10

120059A1

RING

- 23.20 mm

1шт.

10

120060A1

SNAP RING

RING - 23.15 mm

1шт.

10

120062A1

RING

- 23.10 mm

1шт.

10

120067A1

SHIM

RING - 22.00 mm

1шт.

10

120068A1

SHIM

RING - 22.05 mm

1шт.

10

120069A1

SHIM

RING - 22.10 mm

1шт.

10

120070A1

SHIM

RING - 22.15 mm

1шт.

10

120071A1

SHIM

RING - 22.20 mm

1шт.

10

120072A1

SHIM

RING - 22.25 mm

1шт.

10

120073A1

RING

- 22.30 mm

1шт.

10

120074A1

SNAP RING

RING - 22.35 mm

1шт.

10

120075A1

RING

- 22.40 mm

1шт.

10

120076A1

SNAP RING

RING - 22.45 mm

1шт.

10

120077A1

RING

- 22.50 mm

1шт.

10

120078A1

SNAP RING

RING - 22.55 mm

1шт.

10

120079A1

RING

- 22.60 mm

1шт.

10

120080A1

SNAP RING

RING - 22.65 mm

1шт.

10

120081A1

RING

- 22.70 mm

1шт.

10

120082A1

SNAP RING

RING - 22.75 mm

1шт.

10

120083A1

RING

- 23.05 mm

1шт.

10

120084A1

RING

- 23.00 mm

1шт.

10

120085A1

RING

- 22.95 mm

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - front, continued from previous figure, includes: Ref. 10 - 43

1шт.

10

120086A1

RING

- 22.90 mm

1шт.

10

120087A1

SNAP RING

RING - 22.85 mm

1шт.

10

120088A1

RING

- 22.80 mm

1шт.

11

120089A1

LARGE PLATE

PLATE - thrust

2шт.

12

120090A1

PISTON

- hub

2шт.

13

119422A1

CIRCLIP

RING - retaining, 107934A1 and 231369A1 axles

2-4шт.

13a

242171A1

CIRCLIP

RING - retaining, 229849A1 axle

2шт.

14

119424A1

TENSION SPRING

SPRING - tension, axles 107934A1 and 231369A1

16шт.

14

242172A1

TENSION SPRING

SPRING - tension, 229849A1 axle

16шт.

15

119425A1

WIPER SEAL

SEAL, HYD-CYLINDER, U-ring

4шт.

16

119426A1

BACK-UP RING

RING - backup, inner

2шт.

PISTON GROOVE. 119426A1 B/U RING IS 247.6MM O.D., 241MM I.D.

1шт.

17

119427A1

BACK-UP RING

RING - backup, outer

2шт.

119427A1 BACK UP RINGS. THEY ADVISE THAT DUE TO THE ELASTICITY

1шт.

18

119428A1

GUIDE RING

RING - piston, outer

2шт.

19

119429A1

GUIDE RING

RING - piston, inner

2шт.

20

119431A1

NOTCHED DISK

DISC - wavy, 4.0 mm, outer clutch

6шт.

21

119431A1

NOTCHED DISK

DISC - wavy, 4.0 mm, outer clutch

4шт.

21

119430A1

NOTCHED DISK

DISC - outer clutch, 4.5 mm, 10 used with 229849A1 axle

4-10шт.

22

119433A1

DISC

- flat, inner clutch

8шт.

23

119434A1

BLOCK

SHIM - end

2шт.

24

120091A1

SHAFT

- sun gear, 38 teeth

2шт.

25

120092A1

HOUSING

CARRIER - disc

2шт.

26

120093A1

RING

PLATE - carrier

2шт.

27

119438A1

CIRCLIP

RING - snap, used with carrier 120092A1 and plate 120093A1, Ref. 25 and 26

2шт.

28

626-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9, used with carrier 120092A1 and plate 120093A1, Ref. 25 and 26

8шт.

29

120094A1

HOUSING

CARRIER - planetary

2шт.

30

119559A1

PLUG

- 16 x 1.5 mm, 107934A1 and 231369A1 axles

2шт.

30

S301913

PLUG

- special, 229849A1 axle

2шт.

31

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

- plug, 107934A1 and 231369A1 axles

2шт.

31

S301617

O-RING,2mm Thk x 13mm ID

O-RING - plug, 229849A1 axle

2шт.

32

119443A1

O-RING,312mm ID x 2.5mm Width

SEAL - carrier

2шт.

33

120095A1

PINION

GEAR - pinion, planetary

8шт.

34

120096A1

RING, SNAP

RING - retaining

8шт.

35

119453A1

THRUST WASHER

- thrust, 5.0 mm

1шт.

35

119456A1

THRUST WASHER

- thrust, 6.0 mm

1шт.

35

119459A1

THRUST WASHER

- thrust, 6.3 mm

1шт.

35

119461A1

THRUST WASHER

- thrust, 6.5 mm

1шт.

35

119463A1

THRUST WASHER

- thrust, 3.3 mm

1шт.

35

119464A1

THRUST WASHER

- thrust, 2.9 mm

1шт.

35

119465A1

THRUST WASHER

- thrust, 3.5 mm

1шт.

35

119467A1

THRUST WASHER

- thrust, 3.7 mm

1шт.

35

119468A1

THRUST WASHER

- thrust, 3.9 mm

1шт.

35

119470A1

THRUST WASHER

- thrust, 4.1 mm

1шт.

36

120097A1

SCREW

BOLT - hex, 14 - 1.5 x 40 mm

64шт.

37

A52372

O-RING,2.5mm Thk x 38mm ID

- plug, 107934A1 and 231369A1 axles

2шт.

37

3217762R1

O-RING

- plug, 229849A1 axle

2шт.

38

119471A1

PLUG

- hex

2шт.

39

120098A1

WHEEL BOLT

BOLT - special

32шт.

40

123622A1

ADAPTER

- bolt

2шт.

41

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

- adapter

2шт.

42

3222214R1

VALVE

- bleeder

2шт.

43

242167A1

PLUG

- special, 229849A1 axle

8шт.

OF THE SEAL RING, IT CAN BE USED FOR BOTH DIAMETERS OF THE

1шт.

119427A1 B/U RING IS 260.1MM O.D., 253.5MM I.D

1шт.

INFO FROM ZF PROVIDED BY BOB COX.

1шт.
