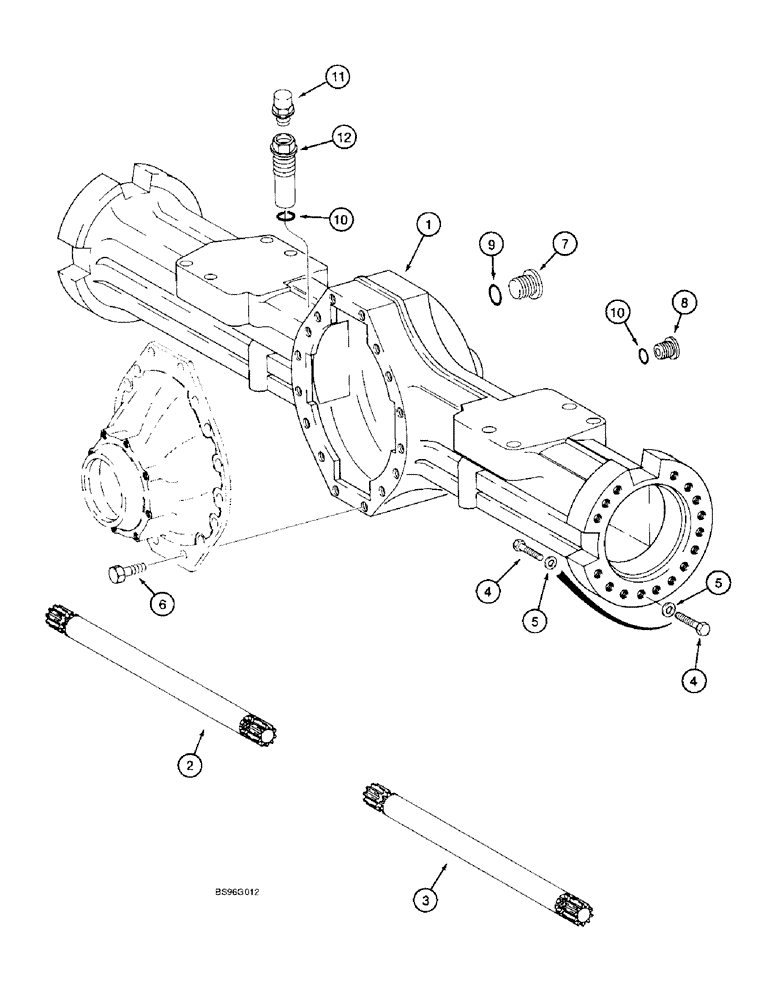

Запчасти Case 821B (6-40) - FRONT AXLE HOUSING (06) - POWER TRAIN

107934A1

4WD AXLE ASSY

AXLE ASSEMBLY - front, ZF No. 4474 006 086, parts list Figs. 6-40 - 6-48, includes: Ref. 1 - 12

1шт.

On 107934A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231369A1 and 229849A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

231369A1

4WD AXLE ASSY

AXLE ASSEMBLY - front, ZF No. 4474 006 112, parts list Figs. 6-40 - 6-48, includes: Ref. 1 - 12

1шт.

On 107934A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231369A1 and 229849A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

229849A1

AXLE

ASSEMBLY - front, ZF No. 4474 006 111, parts list Figs. 6-40 - 6-48, includes: Ref. 1 - 12

1шт.

On 107934A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231369A1 and 229849A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

1

120030A1

HOUSING

- axle, 107934A1 and 231369A1 axles

1шт.

1

242162A1

HOUSING

- axle, 229849A1 axle

1шт.

2

120031A1

SHAFT

- axle, 1049 mm long

1шт.

3

120033A1

SHAFT

- axle, 1131 mm long

1шт.

4

120034A1

BOLT

- hex, special, 107934A1 and 231369A1 axles

32шт.

On 107934A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231369A1 and 229849A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

4

242163A1

SCREW

BOLT - hex, special, 229849A1 axles

32шт.

On 107934A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231369A1 and 229849A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

5

A48948

WASHER

- cap bolt

32шт.

On 107934A1 axles, the axle hub carrier bolts to the housing from the housing side, on 231369A1 and 229849A1 axles, the axle hub carrier bolts to the housing from the hub side.

1шт.

6

A52094

FLANGE BOLT

BOLT - hex flange, special, differential to axle housing

16шт.

7

A48791

PLUG

- hex socket, 42 mm thread

1шт.

8

119349A1

PLUG

- axle housing, special

1шт.

9

A52372

O-RING,2.5mm Thk x 38mm ID

- plug, large

1шт.

10

A52097

O-RING,2mm Thk x 21mm ID

- plug, small

2шт.

11

A48855

VALVE

- breather

1шт.

12

8603256

PLUG

- axle housing, special

1шт.
