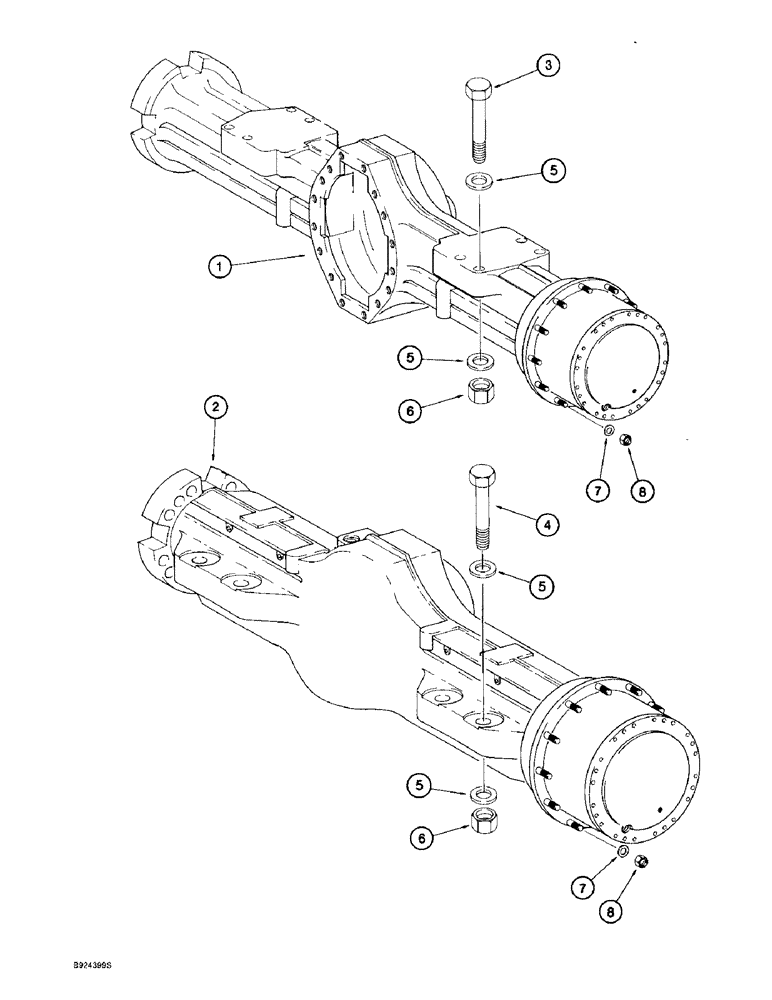

Запчасти Case 821B (6-38) - AXLE ASSEMBLIES AND MOUNTING (06) - POWER TRAIN

1

107934A1

4WD AXLE ASSY

AXLE ASSEMBLY - front, ZF No. 4474 006 086, parts list Figs. 6-40 - 6-48

1шт.

1

231369A1

4WD AXLE ASSY

AXLE ASSEMBLY - front, ZF No. 4474 006 112, parts list Figs. 6-40 - 6-48

1шт.

1

229849A1

AXLE

ASSEMBLY - front, ZF No. 4474 006 111, parts list Figs. 6-40 - 6-49A

1шт.

2

107935A1

AXLE

ASSEMBLY - rear, ZF No. 4474 005 149, parts list Figs. 6-50 - 6-58

1шт.

2

231370A1

4WD AXLE ASSY

AXLE ASSEMBLY - front, ZF No. 4474 006 111, parts list Figs. 6-40 - 6-48, includes: Ref. 1 - 12

1шт.

2

229848A1

AXLE

ASSEMBLY - rear, ZF No. 4474 005 184, parts list Figs. 6-50 - 6-59A

1шт.

3

27132R1

BOLT,Hex, 1" - 14 x 5 1/2", Gr 8

- hex, 1-14 x 5-1/2 inch, grade 8, front axle

8шт.

4

328-1696

BOLT,Hex, 1" - 14 x 6", Gr 8

8шт.

5

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

32шт.

6

232-24416

NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

16шт.

7

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened, Wheel mounting

64шт.

8

29-1714

NUT,7/8"-14, G8, Hvy

NU, , Hex, Wheel mounting 7/8"-14, G8, Hvy

64шт.
