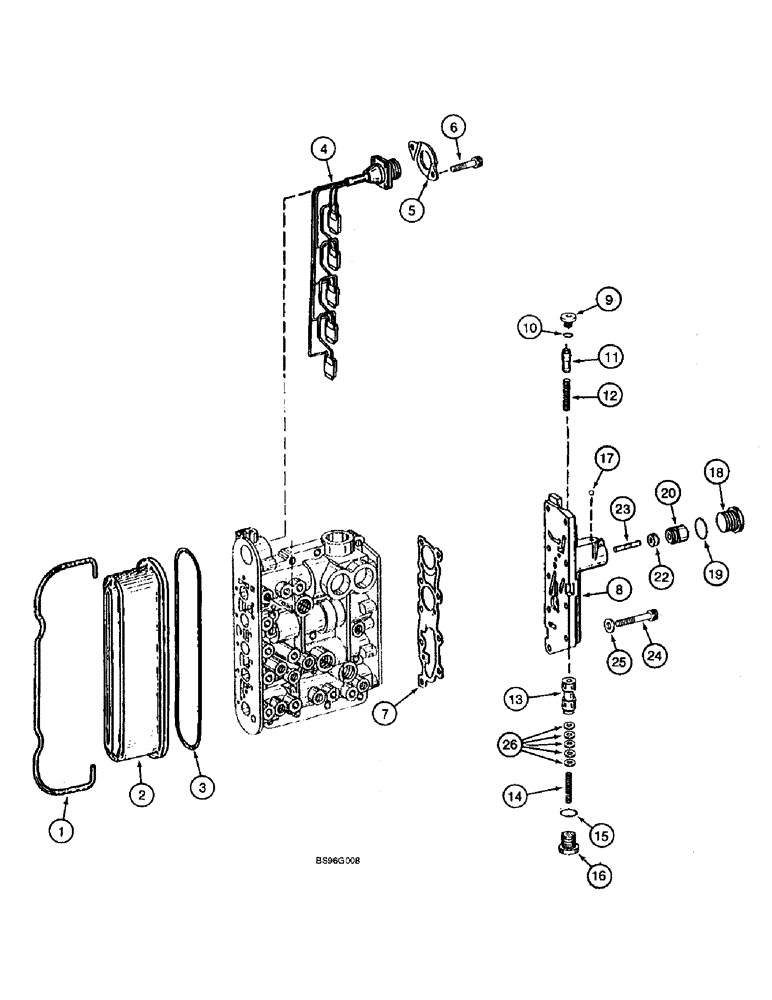

Запчасти Case 821B (6-36) - TRANSMISSION ASSEMBLY, CONTROL VALVE, COVERS AND HARNESS (06) - POWER TRAIN

L129917

TRANSMISSION

ASSEMBLY - ZF No. 4644 024 216, see Fig. 6-4 for parts list information, includes: Ref. 1 - 26

1шт.

LR129917

REMAN-TRANSMISSION

821, PIN JAK0024165 & After, Model Number 4WG200, Stock Number 4644 024 216

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

LR129917

REMAN-TRANSMISSION

821B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 065

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

183098A1

TRANSMISSION

ASSEMBLY - ZF No. 4644 024 065, see Fig. 6-4 for parts list information, includes: Ref. 1 - 26

1шт.

183098A1R

REMAN-TRANSMISSION

821B Case Wheel Loader (North America), Assembly

1шт.

183098A1C

CORE-TRANSMISSION

Return Number

1шт.

100333A1

VALVE

ASSEMBLY - transmission control, includes all items in this figure and Fig. 6-34 and page 6-35B

1шт.

1

100361A1

CLAMP

- wire, solenoid cover

1шт.

2

100360A1

COVER

- solenoid, used in 100334A1 and 178911A1 transmission control valve bodies, see Fig. 6-34

1шт.

2

129808A1

COVER

- solenoid, used in 185437A1 transmission control valve body only, see Fig. 6-34

1шт.

3

E135034

O-RING,5.7mm Thk x 164.2mm ID

SEAL - solenoid cover, used in 100334A1 and 178911A1 transmission control valve bodies, see Fig. 6-34

1шт.

3

129809A1

O-RING,159.2mm ID x 5.7mm Width

SEAL - solenoid cover, used in 185437A1 transmission control valve body only, see Fig. 6-34

1шт.

4

100357A1

HARNESS

- transmission control valve

1шт.

5

100359A1

LARGE PLATE

BRACKET - harness mounting

1шт.

6

199064A1

SCREW

- cap, replaces 100358A1 screw

2шт.

7

231128A1

GASKET,0.55mm Thk

- cover, replaces 100351A1 gasket

1шт.

8

100362A1

HOUSING

COVER - valve, front, used in 100334A1 and 178911A1 transmission control valve body only, see page 6-35

1шт.

8

129810A1

LARGE PLATE

COVER - valve, front, used in 185437A1 transmission control valve body only, see Fig. 6-34

1шт.

9

100367A1

PLUG

- hex socket, special

1шт.

10

100369A1

O-RING,9.5mm ID x 2mm Width

- plug

1шт.

11

100366A1

PISTON

SPOOL - relief

1шт.

12

100368A1

COMPRESSION SPRING

SPRING - relief spool

1шт.

13

100370A1

PISTON

SPOOL - relief

1шт.

14

N14721

SPRING

- relief spool

1шт.

15

106970A1

SEALING RING

- replaces S300495 seal

1шт.

16

129792A1

PLUG

- hex socket, special, 18 x 1.5 mm, replaces 934164R1 plug

1шт.

17

S300552

BALL

- valve

4шт.

18

S301601

PLUG

- hex, special, if used

1шт.

19

S301602

O-RING,2mm Thk x 17mm ID

O-RING - plug, if used

1шт.

20

100364A1

PISTON

- 20.5 mm, if used

1шт.

20

131082A1

PISTON

- 21.0 mm, if used

1шт.

20

100365A1

PISTON

- 21.5 mm, if used

1шт.

22

S301604

SHIM

- 2.0 mm thick, if used

1шт.

22

S301605

SHIM

- 3.0 mm thick, if used

1шт.

22

S301606

SHIM

- 4.0 mm thick, if used

1шт.

22

S301607

SHIM

- 6.0 mm thick, if used

1шт.

22

S301608

SHIM

- 8.0 mm thick, if used

1шт.

23

S301603

NEEDLE

PLUNGER - valve

1шт.

24

131080A1

SCREW,M6 x 20mm, Gr 8.8

BOLT - hex socket, special, 6 - 1.0 x 20 mm, replaces 100363A1 bolt

9шт.

25

3078026R1

WASHER,M6.4

- flat, special

9шт.

26

S301611

SHIM,0.5mm Thk

If used 0.5mm Thk

10шт.
