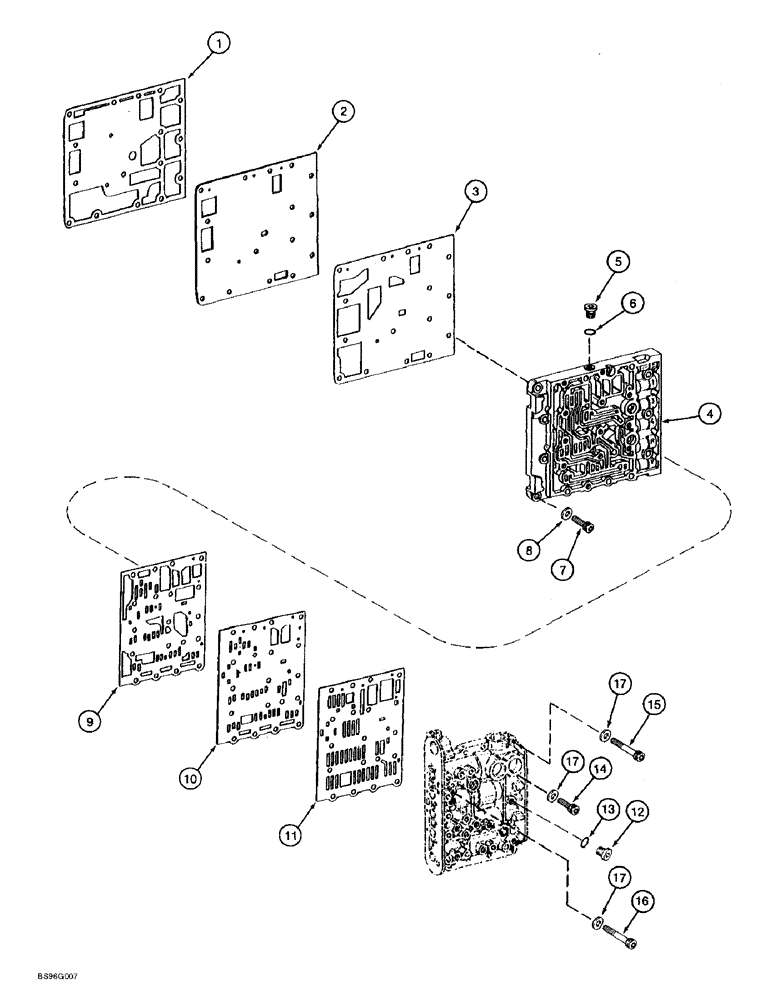

Запчасти Case 821B (6-32) - TRANSMISSION ASSEMBLY, VALVE PLATES AND HYDRAULICS (06) - POWER TRAIN

L129917

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 216, see Fig. 6-4 for parts list information, includes: Ref. 1 - 17

1шт.

LR129917

REMAN-TRANSMISSION

821, PIN JAK0024165 & After, Model Number 4WG200, Stock Number 4644 024 216

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

LR129917

REMAN-TRANSMISSION

821B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 065

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

183098A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 065, see Fig. 6-4 for parts list information, includes: Ref. 1 - 17

1шт.

183098A1R

REMAN-TRANSMISSION

821B Case Wheel Loader (North America), Transmission Assembly

1шт.

183098A1C

CORE-TRANSMISSION

Return Number

1шт.

241954A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 131, see Fig. 6-4 for parts list information, includes: Ref. 1 - 17, Start Serial: JEE0052701, Start Serial: JEE0052701

1шт.

241954A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 821B, P.I.N. JEE0052701 & After, Model Number 4WG200, Stock Number 4644 024 065

1шт.

241954A1C

CORE-TRANSMISSION

Return Number

1шт.

1

103610A1

GASKET,0.35mm Thk

GASKET - plate, at transmission housing

1шт.

2

106945A1

COVER

PLATE - valve, transmission housing to channel plate

1шт.

3

103612A1

GASKET,0.35mm Thk

GASKET - valve plate

1шт.

4

103613A1

LARGE PLATE

PLATE, LARGE PLATE - hydraulic channel

1шт.

5

A52230

PLUG

PLUG - hex socket, 10 mm - 1

1шт.

6

S300491

O-RING,8mm ID x 1.5mm Width

O-RING - special, plug

1шт.

7

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

SCREW - hex socket, 8 - 1.25 x 35 mm, 8.8

11шт.

8

934033R1

WASHER,M8 x 15 x 2

WASHER - flat, special

11шт.

9

103614A1

GASKET

GASKET - at channel plate to valve plate, L129917 transmission, no longer available, order 12790A1 and 129791A1 plate

1шт.

9

129790A1

GASKET,0.4mm Thk

GASKET - at channel plate to valve plate, L129917, 183098A1, and 241954A1 transmissions

1шт.

10

129791A1

COVER

PLATE - valve, L129917, 183098A1, and 241954A1 transmissions

1шт.

11

103616A1

GASKET,0.35mm Thk

GASKET - at control valve to valve plate

1шт.

12

A52230

PLUG

PLUG - hex socket, 10 mm - 1

1шт.

13

S300491

O-RING,8mm ID x 1.5mm Width

O-RING - special, plug

1шт.

14

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

SCREW - hex socket, 8 - 1.25 x 35 mm, 8.8

11шт.

15

100332A1

SCREW

BOLT - hex socket, special, 8 - 1.25 x 60 mm

1шт.

16

100331A1

SCREW

BOLT - hex socket, special, 8 - 1.25 x 65 mm

5шт.

17

934033R1

WASHER,M8 x 15 x 2

WASHER - flat, special

17шт.
