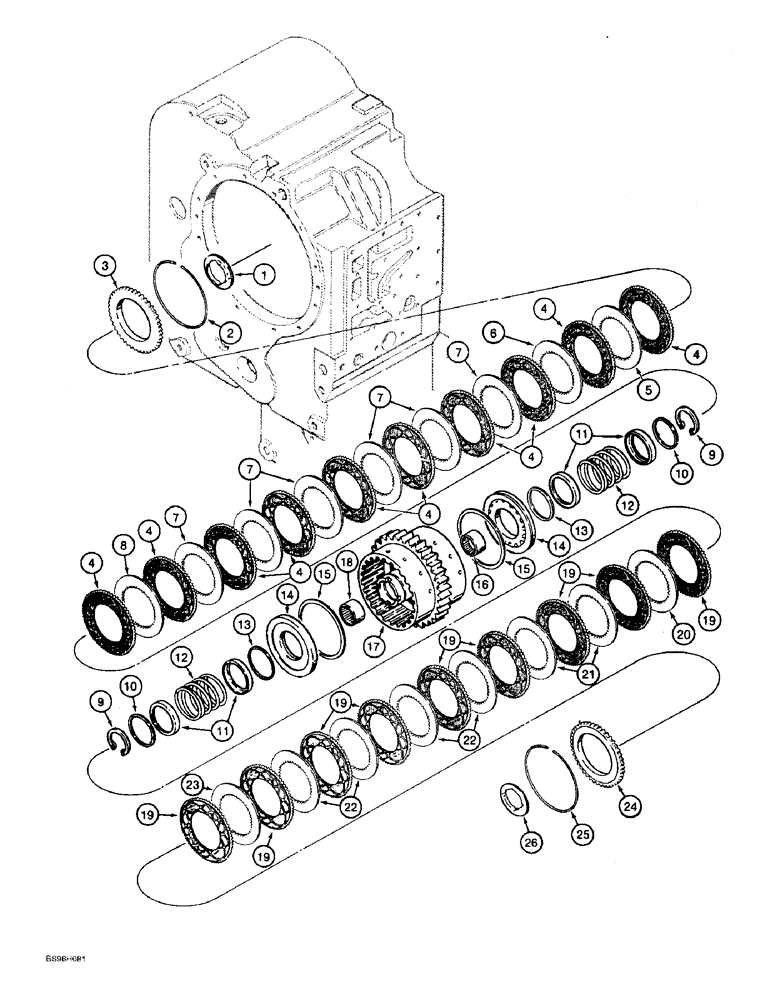

Запчасти Case 821B (6-28) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCH PACK (06) - POWER TRAIN

L129917

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 216, see Fig. 6-4 for parts list information, includes: Ref. 1 - 17

1шт.

LR129917

REMAN-TRANSMISSION

821, PIN JAK0024165 & After, Model Number 4WG200, Stock Number 4644 024 216

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

183098A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 065, see Fig. 6-4 for parts list information, includes: Ref. 1 - 17

1шт.

183098A1R

REMAN-TRANSMISSION

821B Case Wheel Loader (North America), Transmission Assembly

1шт.

183098A1C

CORE-TRANSMISSION

Return Number

1шт.

241954A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 131, see Fig. 6-4 for parts list information, includes: Ref. 1 - 17

1шт.

241954A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 821B, P.I.N. JEE0052701 & After, Model Number 4WG200, Stock Number 4644 024 065

1шт.

241954A1C

CORE-TRANSMISSION

Return number

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, third and fourth clutches, includes: Ref. 1 - 17

1шт.

1

237353A1

THRUST WASHER

WASHER - thrust, L129917 and 183098A1 transmissions, replaces E135227 and 183525A1 washers

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

1

252365A1

THRUST PLATE

WASHER - thrust, 241954A1 transmission

1шт.

2

185439A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.25 mm thick, if used

1шт.

2

185440A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.30 mm thick, if used

1шт.

2

185441A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.35 mm thick, if used

1шт.

2

185442A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.40 mm thick, if used

1шт.

2

185443A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.45 mm thick, if used

1шт.

2

187238A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.20 mm thick, if used

1шт.

2

185444A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.50 mm thick, if used

1шт.

2

185445A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.15 mm thick, if used

1шт.

2

185446A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.10 mm thick, if used

1шт.

3

E135222

NOTCHED DISK

PLATE - backing, third gear end

1шт.

4

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre, external teeth

10шт.

5

E135224

NOTCHED DISK

DISC - steel, internal teeth, 1.5 mm thick, if used

1шт.

5

E135226

NOTCHED DISK

DISC - steel, internal teeth, 2.0 mm thick, if used

1шт.

5

E135225

NOTCHED DISK

DISC - steel, internal teeth, 2.5 mm thick, if used

1шт.

6

E135224

NOTCHED DISK

DISC - steel, internal teeth, 1.5 mm thick

1шт.

7

E135226

NOTCHED DISK

DISC - steel, internal teeth, 2.0 mm thick

6шт.

8

E135225

NOTCHED DISK

DISC - steel, internal teeth, 2.5 mm thick

1шт.

9

E135219

SEALING RING

GASKET - external

2шт.

10

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

11

E135220

GUIDE RING

GUIDE - spring

4шт.

12

E135131

SPRING

SPRING - clutch

2шт.

13

106876A1

SEALING RING,60mm ID x 2.5mm Thk

SEALRING RING - seal

2шт.

14

S301540

PISTON

PISTON - clutch, L129917 transmission

2шт.

14

185168A1

PISTON

PISTON - clutch, 183098A1 and 241954A1 transmission

2шт.

15

199070A1

SEALING RING

SEALRING RING - seal, replaces E135142 ring

2шт.

16

E135044

BEARING, NEEDLE

BEARING - needle

1шт.

17

183198A1

PINION CARRIER

HOUSING - third and fourth clutches, transmissions L129917 and 183098A1, replaces 106922A1 housing

1шт.

17

237369A1

PINION CARRIER

HOUSING - 241954A1 transmission

1шт.

L129917

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 216, see Fig. 6-4 for parts list information, includes: Ref. 18 - 26

1шт.

183098A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 065, see Fig. 6-4 for parts list information, includes: Ref. 18 - 26

1шт.

241954A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 131, see Fig. 6-4 for parts list information, includes: Ref. 18 - 26, Start Serial: JEE0052701

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, third and fourth clutches, continued from previous page

1шт.

18

E135153

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 20mm W

BEARING - needle

1шт.

19

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre, external teeth

9шт.

20

E135225

NOTCHED DISK

DISC - steel, internal teeth, 2.5 mm thick

1шт.

21

E135226

NOTCHED DISK

DISC - steel, internal teeth, 2.0 mm thick

2шт.

22

E135224

NOTCHED DISK

DISC - steel, internal teeth, 1.5 mm thick

4шт.

23

E135224

NOTCHED DISK

DISC - steel, internal teeth, 1.5 mm thick, if used

1шт.

23

E135226

NOTCHED DISK

DISC - steel, internal teeth, 2.0 mm thick, if used

1шт.

23

E135225

NOTCHED DISK

DISC - steel, internal teeth, 2.5 mm thick, if used

1шт.

24

E135222

NOTCHED DISK

PLATE - backing, fourth gear end

1шт.

25

E135124

RING, SNAP

RING SNAP RING - retaining, if used

1шт.

25

185439A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.25 mm thick, if used

1шт.

25

185440A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.30 mm thick, if used

1шт.

25

185441A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.35 mm thick, if used

1шт.

25

185442A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.40 mm thick, if used

1шт.

25

185443A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.45 mm thick, if used

1шт.

25

187238A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.20 mm thick, if used

1шт.

25

185444A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.50 mm thick, if used

1шт.

25

185445A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.15 mm thick, if used

1шт.

25

185446A1

RING, SNAP

RING SNAP RING - retaining, internal, 2.10 mm thick, if used

1шт.

26

183525A1

THRUST WASHER

WASHER - thrust, transmissions L129917 and 183098A1, replaces washer E135227

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

26

252365A1

THRUST PLATE

WASHER - thrust, 241954A1 transmission

1шт.
