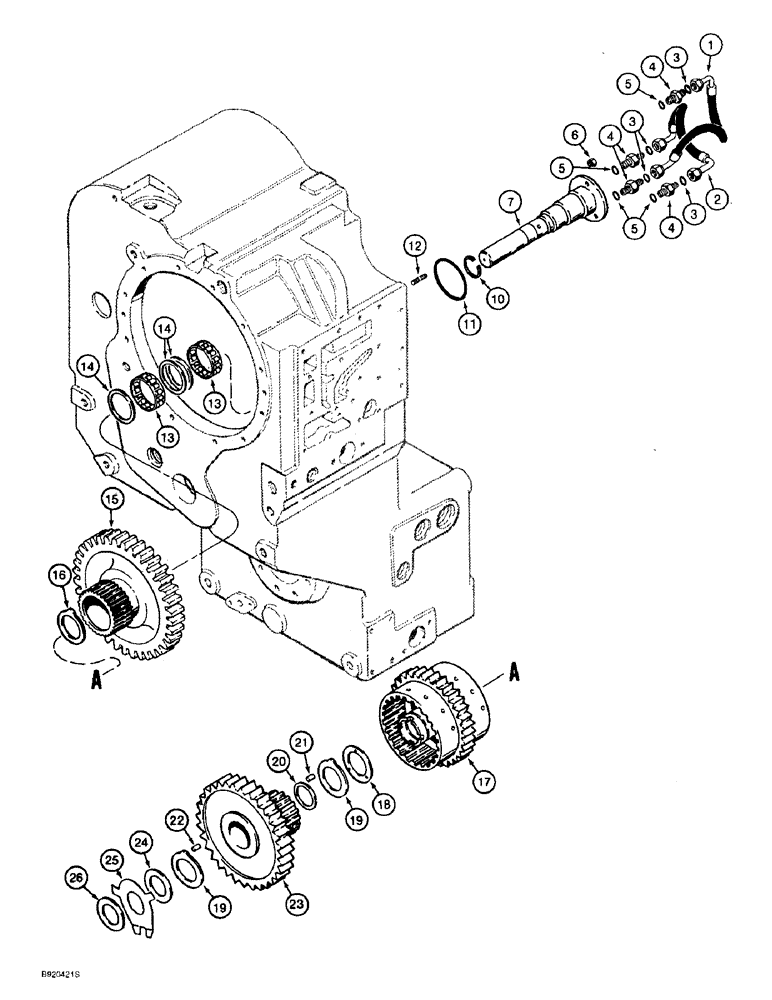

Запчасти Case 821B (6-22) - TRANSMISSION ASSEMBLY, REVERSE AND SECOND CLUTCHES (06) - POWER TRAIN

L129917

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 216, see Fig. 6-4 for parts list information, includes: Ref. 1 - 26

1шт.

LR129917

REMAN-TRANSMISSION

821, PIN JAK0024165 & After, Model Number 4WG200, Stock Number 4644 024 216

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

LR129917

REMAN-TRANSMISSION

821B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 065

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

183098A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 065, see Fig. 6-4 for parts list information, includes: Ref. 1 - 26

1шт.

183098A1R

REMAN-TRANSMISSION

821B CASE WHEEL LOADER (NORTH AMERICA), TRANSMISSION ASSEMBLY

1шт.

183098A1C

CORE-TRANSMISSION

Return Number

1шт.

241954A1

TRANSMISSION

, Start Serial: JEE0052701

1шт.

241954A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 821B, P.I.N. JEE0052701 & After, Model Number 4WG200, Stock Number 4644 024 065

1шт.

241954A1C

CORE-TRANSMISSION

Return Number

1шт.

1

S300584

HOSE

HOSE - 516 mm (20-5/16 inch) long, second clutch

1шт.

2

S300583

HOSE

HOSE - 620 mm (24-7/16 inch) long, reverse clutch, L129917 and 183098A1 transmission

1шт.

2

103619A1

HYDRAULIC HOSE,378.00 mm

Transmission

1шт.

3

S300587

O-RING,12.4mm ID x 1.78mm Width

O-RING - adapter, hose side

4шт.

4

S301961

ADAPTER

ADAPTER - straight

4шт.

5

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

O-RING - adapter, transmission side

4шт.

6

825-1408

NUT,M8, Cl 8

Nut, M8, Cl 8

3шт.

7

184558A1

SHAFT

AXLE - reverse and second clutches, replaces E136115 axle

1шт.

10

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

RING - piston, axle shaft

3шт.

11

S300460

O-RING,3mm Thk x 49mm ID

O-RING - axle

1шт.

12

E135084

STUD

STUD - 8 - 1.25 x 18 mm

3шт.

13

E135154

ROLLER CAGE BEARING,45mm ID x 75mm OD x 56.6mm W

BEARING - roller, two piece

1шт.

14

E135002

PISTON RING,69.6mm ID x 75.8mm OD x 3mm Thk

RING - retaining, internal, bearing

3шт.

15

237367A1

GEAR

GEAR - second

1шт.

15

250688A1

PINION

GEAR - second

1шт.

16

183516A1

THRUST WASHER,46.5mm ID x 65mm OD x 2.1mm Thk

WASHER - thrust, tabbed, replaces E135121 washer

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

17

NSS

NOT SOLD SEPARAT

PACK - clutch, reverse and second, parts list Fig. 6-24 or 6-25A

1шт.

18

183547A1

THRUST WASHER,35.3mm ID x 65.4mm OD x 1.5mm Thk

WASHER - thrust, replaces E135123 washer

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

19

E135267

WASHER, THRUST

WASHER - thrust, tabbed

2шт.

20

E135268

WASHER

WASHER - flat, 48 x 54.7 x 0.8 mm

1шт.

E136114

ROLLER BEARING

KIT - bearing, includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

NEEDLE - bearing

14шт.

22

NSS

NOT SOLD SEPARAT

NEEDLE - bearing

14шт.

23

S300461

GEAR

GEAR - L129917 transmission

1шт.

23

237374A1

PINION

GEAR - 183098A1 and 241954A1 gear

1шт.

24

183515A1

THRUST WASHER,35.3mm ID x 70.5mm OD x 1.5mm Thk

WASHER - thrust, 35 x 70 x 1.5 mm, replaces E135120 washer

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

25

S301949

WASHER

WASHER - thrust, notched

1шт.

26

E135098

SHIM,0.4mm Thk

SHIM, (35.1 ID x 70 OD) 0.4mm Thk

1шт.

26

E135099

SHIM,0.6mm Thk

SHIM, (35.1 ID x 70 OD) 0.6mm Thk

1шт.

26

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

SHIM, (35.1 ID x 70 OD) 0.8mm Thk

1шт.

26

E135101

SHIM,1.0mm Thk

SHIM, (35.1 ID x 70 OD) 1.0mm Thk

1шт.

26

E135102

SHIM,1.2mm Thk

SHIM, (35.1 ID x 70 OD) 1.2mm Thk

1шт.

26

199081A1

SHIM

SHIM - 1.4 mm thick, replaces E135103 shim

1шт.

26

199082A1

SHIM,35.1mm ID x 70mm OD x 1.6mm Thk

SHIM - 1.6 mm thick, replaces E135104 shim

1шт.

26

199083A1

SHIM

SHIM - 1.8 mm thick, replaces E135105 shim

1шт.

26

199084A1

SHIM,35.1mm ID x 70mm OD x 2mm Thk

SHIM - 2.0 mm thick, replaces E135106 shim

1шт.

26

199085A1

SHIM,35.1mm ID x 70mm OD x 2.2mm Thk

SHIM - 2.2 mm thick, replaces E135107 shim

1шт.

26

199086A1

SHIM

SHIM - 2.4 mm thick, replaces E135108 shim

1шт.

26

199087A1

SHIM

SHIM - 2.6 mm thick, replaces E135109 shim

1шт.

26

199088A1

SHIM,2.8mm Thk

SHIM - 2.8 mm thick, replaces E135110 shim

1шт.
