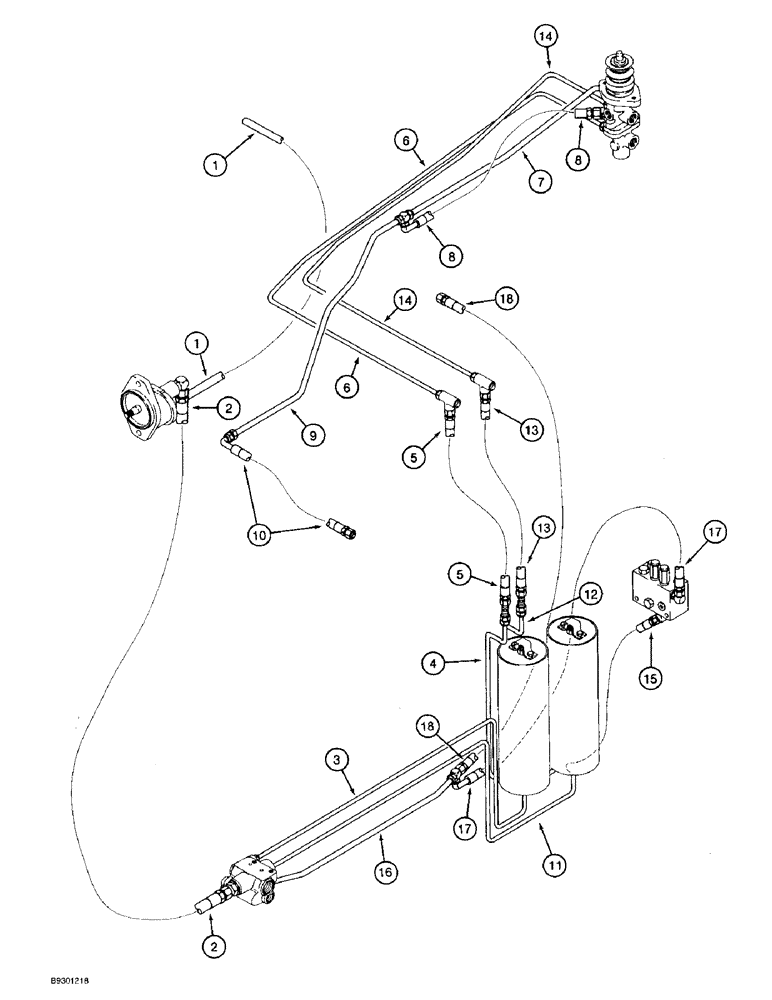

Запчасти Case 821B (1-14) - PICTORIAL INDEX, MAIN BRAKE HYDRAULIC CIRCUIT, BRAKE VALVE SUPPLY & RETURN (00) - PICTORIAL INDEX

1

Hose, at suction tube on hydraulic Pg. 7-9

1шт.

reservoir to brake pump

1шт.

2

Hose, brake pump to accumulator Pg. 7-9

1шт.

valve

1шт.

3

Tube, accumulator valve upper port Pg. 7-11

1шт.

to rear accumulator

1шт.

4

Tube, rear accumulator to hose at Pg. 7-15

1шт.

tee to tube to brake valve lower

1шт.

pressure port

1шт.

5

Hose, tee at tube to brake valve Pg. 7-15

1шт.

lower pressure port from tube at

1шт.

rear accumulator

1шт.

6

Tube, tee at hose from rear Pg. 7-15

1шт.

accumulator to brake valve lower

1шт.

pressure port

1шт.

7

Front tube, brake valve upper tank Pg. 7-15

1шт.

port to tee at rear, Start Serial: tube

1шт.

reservoir

1шт.

8

Hose, brake valve lower tank port Pg. 7-15

1шт.

to tee at front and rear, Start Serial: tubes

1шт.

reservoir

1шт.

9

Rear tube, tee at front tube and Pg. 7-15

1шт.

hose from brake valve to hose at

1шт.

reservoir

1шт.

10

Hose, rear tube from brake valve to Pg. 7-15

1шт.

reservoir

1шт.

11

Tube, accumulator valve lower port Pg. 7-11

1шт.

to front accumulator

1шт.

12

Tube, front accumulator to hose to Pg. 7-15

1шт.

brake valve upper pressure port

1шт.

13

Hose, tube at accumulator to tee at Pg. 7-15

1шт.

tube to brake valve upper pressure

1шт.

port

1шт.

14

Tube, tee at hose from front Pg. 7-15

1шт.

accumulator to brake valve upper

1шт.

pressure port

1шт.

15

Hose, tee at front accumulator to Pg. 7-11

1шт.

pressure reducing valve

1шт.

16

Tube, accumulator valve to tee at Pg. 7-13

1шт.

hoses to cooler bypass and pressure

1шт.

reducing valves

1шт.

17

Hose, tee at tube from accumulator Pg. 7-13

1шт.

valve to pressure reducing valve

1шт.

18

Hose, tee at tube from accumulator Pg. 7-13

1шт.

valve to cooler bypass valve

1шт.
