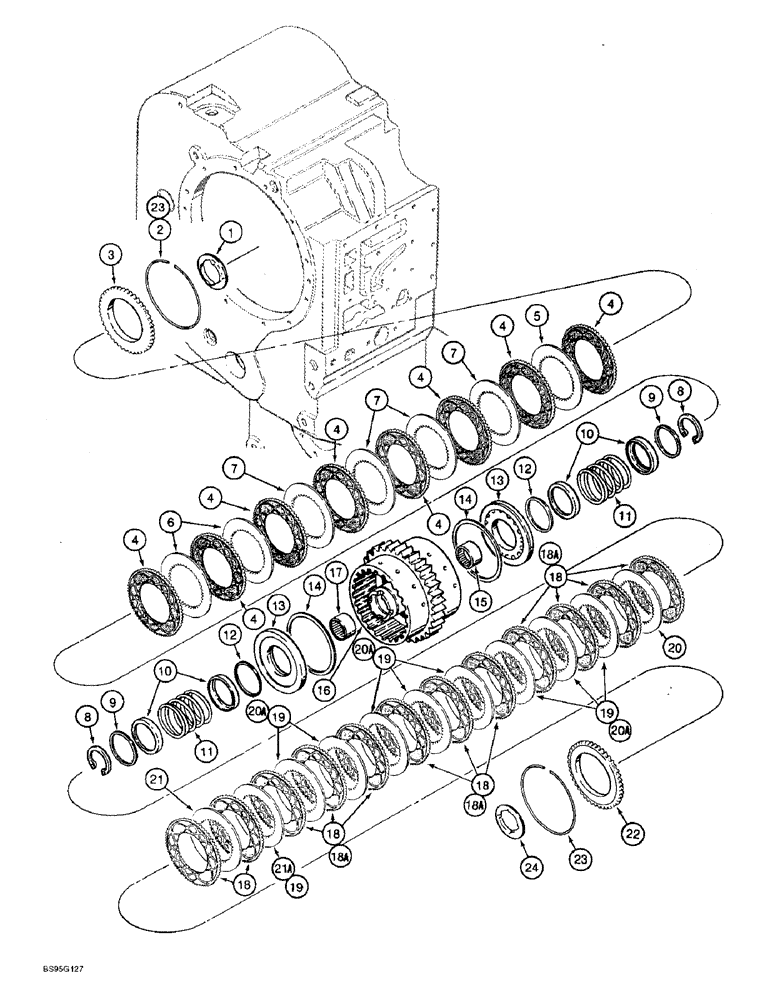

Запчасти Case 821B (6-20) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCH PACK, PRIOR TO P.I.N. JEE0052701 (06) - POWER TRAIN

L129917

TRANSMISSION

ASSEMBLY - ZF No. 4644 024 216, see Fig. 6-4 for parts list information, includes: Ref. 1 - 24

1шт.

LR129917

REMAN-TRANSMISSION

821, PIN JAK0024165 & After, Model Number 4WG200, Stock Number 4644 024 216

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

LR129917

REMAN-TRANSMISSION

821B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 065

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

183098A1

TRANSMISSION

ASSEMBLY - ZF No. 4644 024 065, see Fig. 6-4 for parts list information, includes: Ref. 1 - 24

1шт.

183098A1R

REMAN-TRANSMISSION

821B Case Wheel Loader (North America), Assembly

1шт.

183098A1C

CORE-TRANSMISSION

Return Number

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, forward and low clutches, includes: Ref. 1 - 24

1шт.

1

237353A1

THRUST WASHER

WASHER - thrust, replaces E135227 and 183525A1 washers

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

2

E135125

RING, SNAP

RING - retaining, if used

1шт.

3

E135261

NOTCHED DISK

DISC - clutch, fibre, low gear end

1шт.

4

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre, fibre

8шт.

5

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, steel, if used

1шт.

5

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel, if used

1шт.

6

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel

2шт.

7

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, steel

4шт.

8

E135019

CIRCLIP

RING - snap, external

2шт.

9

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

10

E135220

GUIDE RING

GUIDE - spring

4шт.

11

E135131

SPRING

- clutch

2шт.

12

106876A1

SEALING RING,60mm ID x 2.5mm Thk

RING - seal

2шт.

13

S301950

PISTON

- clutch, L129917 transmission

2шт.

13

183944A1

PISTON

- clutch, 183098A1 transmission

2шт.

14

199079A1

SEALING RING

RING - seal, replaces E135140 ring

2шт.

15

E135045

BEARING, NEEDLE,Needle, 40mm ID x 47mm OD x 26mm W

BEARING - needle

1шт.

16

106904A1

PINION CARRIER

HOUSING - forward and low clutch, L129917 transmission

1шт.

16

237365A1

PINION CARRIER

HOUSING - forward and low clutch, 183098A1 transmission replaces 183196A1 housing

1шт.

17

E135043

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 26mm W

BEARING - needle

1шт.

18

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre, L129917 transmission only

12шт.

18a

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre, 183098A1 transmission only

10шт.

19

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, steel

9шт.

20

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel

1шт.

20a

187236A1

DISC

- clutch, 3.0 mm thick, steel, 183098A1 transmission only

8шт.

21

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, steel, if used, L129917 or 183098A1 transmission

1шт.

21

E135272

NOTCHED DISK

DISC - clutch, 2.5 mm thick, steel, if used, L129917 or 183098A1 transmission

1шт.

21a

187236A1

DISC

- clutch, 3.0 mm thick, steel, if used, 183098A1 transmission only

1шт.

22

E135261

NOTCHED DISK

DISC - clutch, fibre, forward gear end

1шт.

23

E135125

RING, SNAP

RING - retaining, if used

1шт.

23

185413A1

RING, SNAP

RING - retaining, internal, 2.3 mm thick, if used

2шт.

23

185414A1

RING, SNAP

RING - retaining, internal, 2.4 mm thick, if used

2шт.

23

185415A1

RING, SNAP

RING - retaining, internal, 2.2 mm thick, if used

2шт.

23

185416A1

RING, SNAP

RING - retaining, internal, 2.1 mm thick, if used

2шт.

24

237353A1

THRUST WASHER

WASHER - thrust, replaces E135227 and 183525A1 washers

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.
