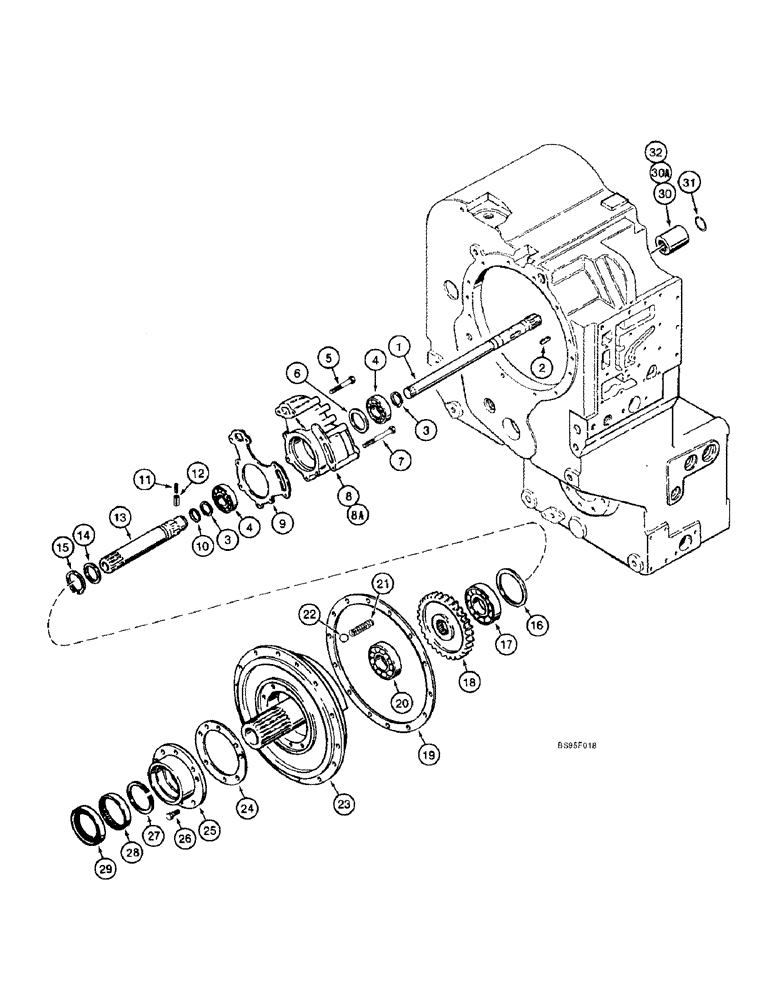

Запчасти Case 821B (6-12) - TRANSMISSION ASSEMBLY, INPUT GEAR, PUMP, AND OUTPUT SHAFT (06) - POWER TRAIN

L129917

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 216, see Fig. 6-4 for parts list information, includes: Ref. 1 - 32

1шт.

LR129917

REMAN-TRANSMISSION

821, PIN JAK0024165 & After, Model Number 4WG200, Stock Number 4644 024 216

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

LR129917

REMAN-TRANSMISSION

821B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 065

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

183098A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 065, see Fig. 6-4 for parts list information, includes: Ref. 1 - 32

1шт.

183098A1R

REMAN-TRANSMISSION

821B CASE WHEEL LOADER (NORTH AMERICA), TRANSMISSION ASSEMBLY

1шт.

183098A1C

CORE-TRANSMISSION

Return Number

1шт.

241954A1

TRANSMISSION

, Start Serial: JEE0052701

1шт.

241954A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 821B, P.I.N. JEE0052701 & After, Model Number 4WG200, Stock Number 4644 024 065

1шт.

241954A1C

CORE-TRANSMISSION

Return number

1шт.

1

106805A1

SHAFT

SHAFT - pump output

1шт.

2

E136101

KEYWAY

KEY - shaft

1шт.

3

800-1130

SNAP RING,M30, Ext

SNAP RING, - Retaining, Replaces 933086R1 snap ring M30, Ext

2шт.

4

658089R91

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING - ball, pump

2шт.

5

827-8085

BOLT,Hex, M8 x 1.25 x 85mm, Cl 10.9

BOLT - hex, 8 - 1.25 x 85 mm, class 10.9

4шт.

6

E136111

BLOCK

SHIM - 0.1 mm thick

1шт.

6

E136110

BLOCK

SHIM - 0.2 mm thick

1шт.

6

E136109

BLOCK

SHIM - 0.3 mm thick

1шт.

6

E136108

BLOCK

SHIM - 0.4 mm thick

1шт.

6

E136107

BLOCK

SHIM - 0.5 mm thick

1шт.

6

E136106

SHIM

SHIM - 0.6 mm thick

1шт.

6

E136105

BLOCK

SHIM - 0.7 mm thick

1шт.

6

E136104

BLOCK

SHIM - 0.8 mm thick

1шт.

6

E136103

BLOCK

SHIM - 0.9 mm thick

1шт.

6

E136102

BLOCK

SHIM - 1.0 mm thick

1шт.

7

813-8115

BOLT,Hex, M8 x 1.25 x 115mm, Cl 8.8

BOLT - hex, 8 - 1.25 x 115 mm

4шт.

8

E136100

PUMP

PUMP - transmission, no longer available, order Ref. 8A, 183468A1, pump

1шт.

8a

183468A1

HYDRAULIC PUMP

PUMP - transmission

1шт.

9

S301947

GASKET

GASKET - pump

1шт.

10

E135036

O-RING,Square, 2mm Thk x 30mm ID

SEAL - square section, x 2 30 mm ID

1шт.

11

E135026

PIN,1.5mm OD x 5mm L, Slotted

PIN - roll, 1.5 OD x 5 mm

1шт.

12

E135028

PIN, SPLIT (COTTER)

PIN, COTTER PIN - roll, 2.5 OD x 5 mm

1шт.

13

S301945

SHAFT

SHAFT - input, pump

1шт.

14

185388A1

SPACER, RING

RING - piston, replaces E135144 ring

1шт.

15

800-1140

SNAP RING,M40, Ext

SNAP RING, , Retaining, Replaces A48760 snap ring M40, Ext

1шт.

16

E135179

SHIM,70mm ID x 89mm OD x 0.3mm Thk

SHIM, 0.3mm Thk

1шт.

16

E135180

SHIM,0.5mm Thk

SHIM, 0.5mm Thk

1шт.

16

E135178

SHIM,70mm ID x 89mm OD x 0.6mm Thk

SHIM, 0.6mm Thk

1шт.

16

E135177

SHIM,0.7mm Thk

SHIM, 0.7mm Thk

1шт.

16

E135176

SHIM,70mm ID x 89mm OD x 0.8mm Thk

SHIM, 0.8mm Thk

1шт.

16

E135175

SHIM,70mm ID x 89mm OD x 0.9mm Thk

SHIM, 0.9mm Thk

1шт.

16

E135174

SHIM,70mm ID x 89mm OD x 1mm Thk

SHIM, 1.0mm Thk

1шт.

16

E135173

SHIM,1.1mm Thk

SHIM, 1.1mm Thk

1шт.

16

E135172

SHIM,70mm ID x 89mm OD x 1.2mm Thk

SHIM, 1.2mm Thk

1шт.

16

S300446

SHIM,1.3mm Thk

SHIM, 1.3mm Thk

1шт.

16

E135170

SHIM,70mm ID x 89mm OD x 1.4mm Thk

SHIM, 1.4mm Thk

1шт.

17

S300445

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball

1шт.

18

E135251

GEAR

GEAR - input, L129917 transmission

1шт.

18

187230A1

PINION

GEAR - input, 183098A1 and 241954A1 transmissions

1шт.

19

S301946

GASKET

GASKET - oil feed flange

1шт.

20

S300447

ROLLER BEARING,45 mm ID x 85 mm OD x 19 mm

BEARING - roller

1шт.

21

E135136

SPRING

SPRING - ball check

1шт.

22

E135051

BALL

BALL - check

1шт.

23

237370A1

FLANGE

FLANGE - oil feed, L129917 and 183098A1 transmissions, replaces E135252 flange

1шт.

23

237370A1

FLANGE

FLANGE - oil feed, 241954A1 transmission

1шт.

24

S301514

GASKET

GASKET - hub

1шт.

25

E135202

HUB

HUB - feed flange

1шт.

26

826-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

BOLT - hex, 8 - 1.25 x 30 mm, class 10.9

8шт.

27

E135143

RING,Locking, 65.4mm ID x 70mm OD x 3.5mm Thk

RING - piston

1шт.

28

E135146

NEEDLE ROLLER,Needle, 75mm ID x 83mm OD x 16mm W

BEARING - needle

1шт.

29

S300448

SEAL

SEAL - oil

1шт.

30

106837A1

COUPLING

COUPLING - drive, if used, L129917 and 241954A1transmissions

1шт.

30a

103587A1

COUPLING, BREAK AWAY

COUPLING - drive, used with PTO, if used, L129917 transmission

1шт.

31

106838A1

CIRCLIP

RING - snap, internal

1шт.

32

183827A1

COUPLING

COUPLING - drive, 183098A1 transmission

1шт.
