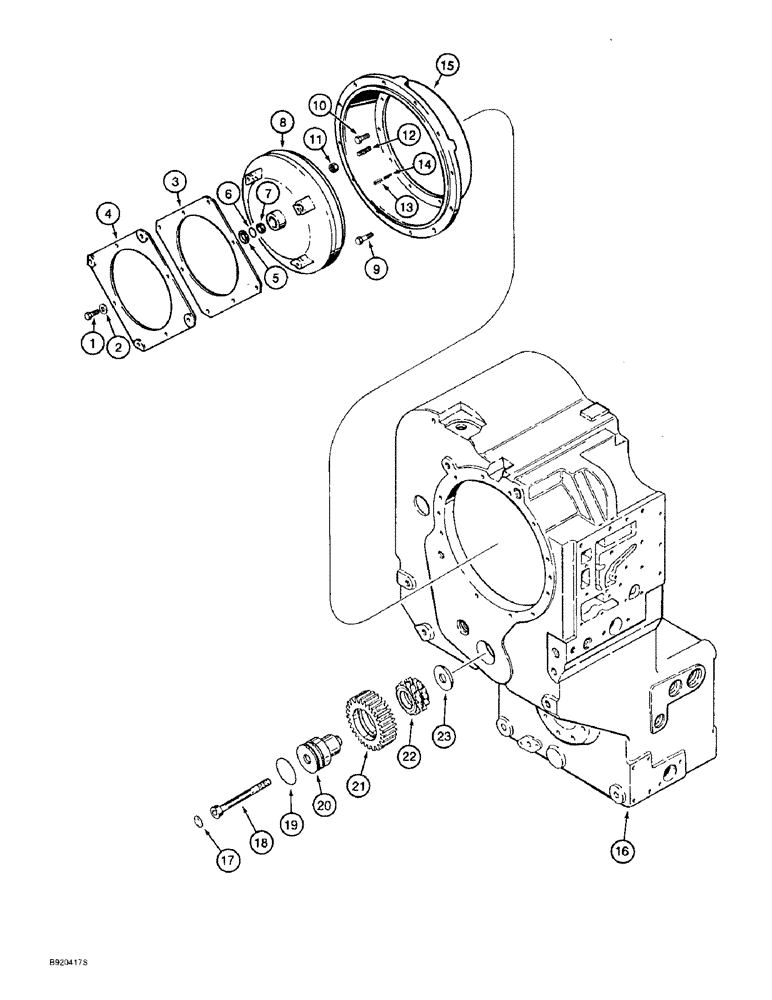

Запчасти Case 821B (6-10) - TRANSMISSION ASSEMBLY, IDLER GEAR, CONVERTER AND COVER (06) - POWER TRAIN

L129917

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 216, see Fig. 6-4 for parts list information, includes: Ref. 1 - 23

1шт.

LR129917

REMAN-TRANSMISSION

821, PIN JAK0024165 & After, Model Number 4WG200, Stock Number 4644 024 216

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

LR129917

REMAN-TRANSMISSION

821B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 065

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

183098A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 065, see Fig. 6-4 for parts list information, includes: Ref. 1 - 23

1шт.

183098A1R

REMAN-TRANSMISSION

821B Case Wheel Loader (Nort America), Transmission Assembly

1шт.

183098A1C

CORE-TRANSMISSION

Return Number

1шт.

241954A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 131, see Fig. 6-4 for parts list information, includes: Ref. 1 - 23, Start Serial: JEE0052701

1шт.

241954A1R

REMAN-TRANSMISSION

821B, P.I.N. JEE0052701 & After, Model Number 4WG200, Stock Number 4644 024 065

1шт.

241954A1C

CORE-TRANSMISSION

Return number

1шт.

1

E136098

BOLT

BOLT - hex, 12 - 1.75 x 18 mm

4шт.

2

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

WASHER - flat, 13.5 x 24 x 2.5 mm

4шт.

3

E136097

DIAPHRAGM

PLATE - flex, outer

1шт.

4

S300441

DIAPHRAGM

PLATE - flex, inner

1шт.

5

103-21106

SNAP RING,1.06", Int, #106

Ring, Snap, , Converter 1.06", Int, #106

1шт.

6

E135035

O-RING,25 mm ID

O-RING - x 3 25 mm ID

1шт.

7

E135167

WASHER

WASHER - sealing

1шт.

8

S300444

TORQUE CONVERTER

CONVERTER - transmission

1шт.

8

S300444R

REMAN-TORQUE CONVERT

821B

1шт.

8

S300444C

CORE-TORQUE CONVERTR

Return Number

1шт.

9

826-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

BOLT - hex, 10 - 1.5 x 50 mm, class 10.9

2шт.

10

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M10 x 35, 10.9, Full Thd

11шт.

11

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

1шт.

12

E135083

STUD

STUD - 10 x 1.5 x 30 mm, if used, replaced by Ref. 10, 628-10035, bolt on some models

1шт.

13

E135027

PIN, SPLIT (COTTER)

PIN, COTTER PIN - roll, 10 OD x 28 mm

2шт.

14

A52091

AXLE PIN

PIN - roll, 6 x 30 mm, replaces E135025 pin

2шт.

15

E135283

COVER

HOUSING - converter

1шт.

16

106839A1

HOUSING

HOUSING - transmission

1шт.

17

106874A1

BLOCK

PLUG - expansion, 25 mm

1шт.

18

106872A1

HEX SOC SCREW

BOLT - hex socket, 12 - 1.75 x 100 mm, class 10.9

1шт.

19

S300455

O-RING,3mm Thk x 57mm ID

O-RING - stub axle

1шт.

20

106869A1

AXLE

AXLE - stub, idler gear

1шт.

21

106871A1

PINION

GEAR - idler, L129917 transmission

1шт.

21

187233A1

PINION

GEAR - idler, 183098A1 and 241954A1 transmissions

1шт.

22

S300458

SET

KIT - needle bearing

1шт.

23

106870A1

THRUST WASHER

WASHER - thrust

1шт.
