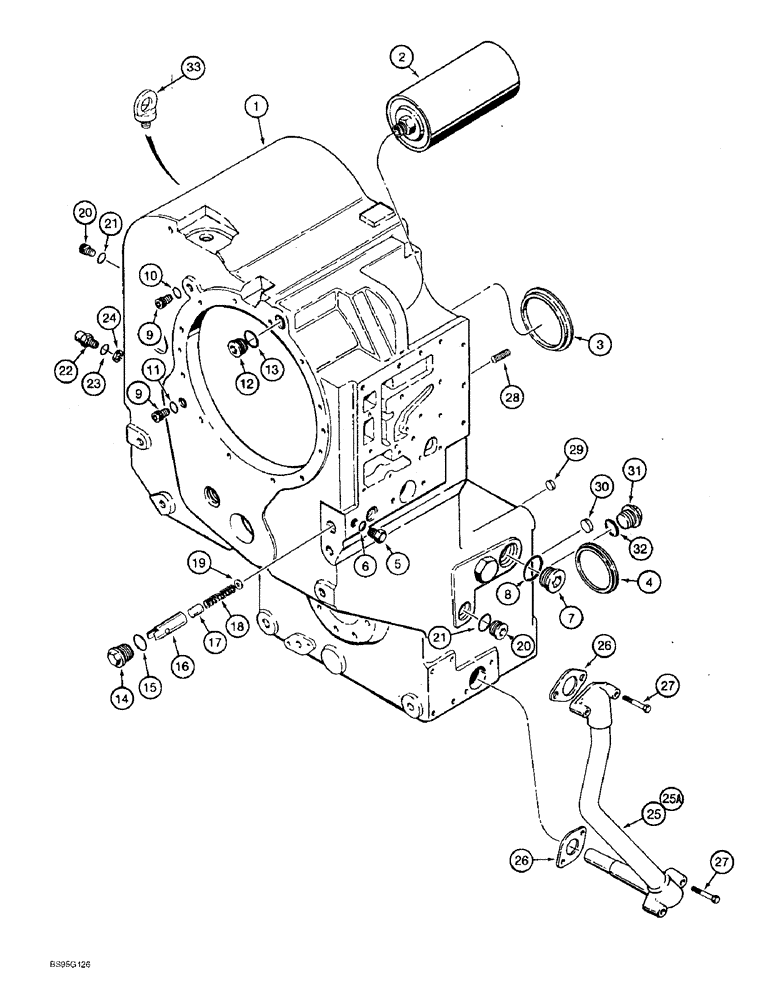

Запчасти Case 821B (6-08) - TRANSMISSION ASSEMBLY, HOUSING (06) - POWER TRAIN

L129917

TRANSMISSION

ASSEMBLY - ZF No. 4644 024 216, see Fig. 6-4 for parts list information, includes: Ref. 1 - 34

1шт.

LR129917

REMAN-TRANSMISSION

821, PIN JAK0024165 & After, Model Number 4WG200, Stock Number 4644 024 216

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

LR129917

REMAN-TRANSMISSION

821B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 065

1шт.

LC129917

CORE-TRANSMISSION

Return Number

1шт.

183098A1

TRANSMISSION

ASSEMBLY - ZF No. 4644 024 065, see Fig. 6-4 for parts list information, includes: Ref. 1 - 34

1шт.

183098A1R

REMAN-TRANSMISSION

821B Case Wheel Loader (North America), Assembly

1шт.

183098A1C

CORE-TRANSMISSION

Return Number

1шт.

1

106839A1

HOUSING

- transmission

1шт.

Use Ref. 34 to salvage 106839A1 transmission housing.

1шт.

2

299380A1

FILTER

FILTER - transmission oil, replaces S301612 and 185161A1

1шт.

3

E135201

SEAL

- expansion, 106 mm

1шт.

4

E135169

PLUG

- expansion, 80 mm

2шт.

5

237251A1

PLUG

- hex, 14 mm - 1.5, replaces E135079 plug

1шт.

6

1968430C1

O-RING

- plug

1шт.

7

E135077

PLUG,Hex, M36 x 1.5

- pipe, 36 mm - 1.5, replaces 905476R1 plug

1шт.

8

E135033

O-RING,2.2mm Thk x 33mm ID

- plug, replaces 81284C1

1шт.

9

E135075

PLUG

- hex socket, 14 mm - 1.5

2шт.

10

1968430C1

O-RING

- plug

1шт.

11

933610R1

SEALING RING,M14 x 18 x 1.8

1шт.

12

A52148

PLUG

- hex socket, 30 mm - 1.5

1шт.

13

A52368

SEAL

O-RING - plug

1шт.

14

106949A1

PLUG

- hex, 30 mm - 1.5

1шт.

15

A52368

SEAL

O-RING - plug

1шт.

16

106951A1

SLEEVE

- valve, converter pressure

1шт.

17

106953A1

PISTON

- converter pressure valve

1шт.

18

106954A1

COMPRESSION SPRING

SPRING - converter pressure valve

1шт.

19

106955A1

WASHER

- flat, 15 x 28 x 2.5 mm

1шт.

20

129792A1

PLUG

- hex socket, special, 18 x 1.5 mm

2шт.

21

106970A1

SEALING RING

- replaces S300495 O-ring

2шт.

22

315733A1

SENSOR

- transmission speed, replaces S300494

1шт.

23

106970A1

SEALING RING

- plug, if used

1шт.

24

S300506

SHIM,1.8mm Thk

1шт.

24

S300505

BLOCK

SHIM - 1.6 mm thick

1шт.

24

S300497

SHIM,1.5mm Thk

1шт.

24

S300498

SHIM,1.4mm Thk

1шт.

24

S300499

SHIM,1.2mm Thk

1шт.

24

S300500

SHIM,1mm Thk

1шт.

24

S300501

SHIM,2mm Thk

1шт.

24

S300502

SHIM,0.5mm Thk

1шт.

24

S300503

SHIM,0.3mm Thk

1шт.

24

S300504

SHIM,0.2mm Thk

1шт.

25

S301958

TUBE

- suction, if used

1шт.

25a

184327A1

TUBE,480 mm Length

- suction, if used

1шт.

26

198979A1

GASKET,0.8mm Thk

- suction tube, replaces S301959 gasket

2шт.

27

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

4шт.

28

106942A1

SCREW

- set, 16 - 2.0 x 30 mm

2шт.

29

E135010

PLUG

- expansion, 22 mm

1шт.

30

E135011

PLUG

- expansion, 30 mm

1шт.

31

E135081

PLUG

- hex, included with L129917 transmission

1-2шт.

31

E135082

PLUG

- hex, special, included with 183098a1 transmission

1шт.

32

3133948R1

O-RING,2mm Thk x 23mm ID

- included with transmission, used with E135081 plug

2шт.

32

A52368

SEAL

O-RING - included with transmission, used with E135082 plug

1шт.

33

187232A1

EYEBOLT,M20

BOLT - hex, lift eye

2шт.

34

187325A1

GUIDE RING

BUSHING - axial guide, not shown

1шт.

Use Ref. 34 to salvage 106839A1 transmission housing.

1шт.
