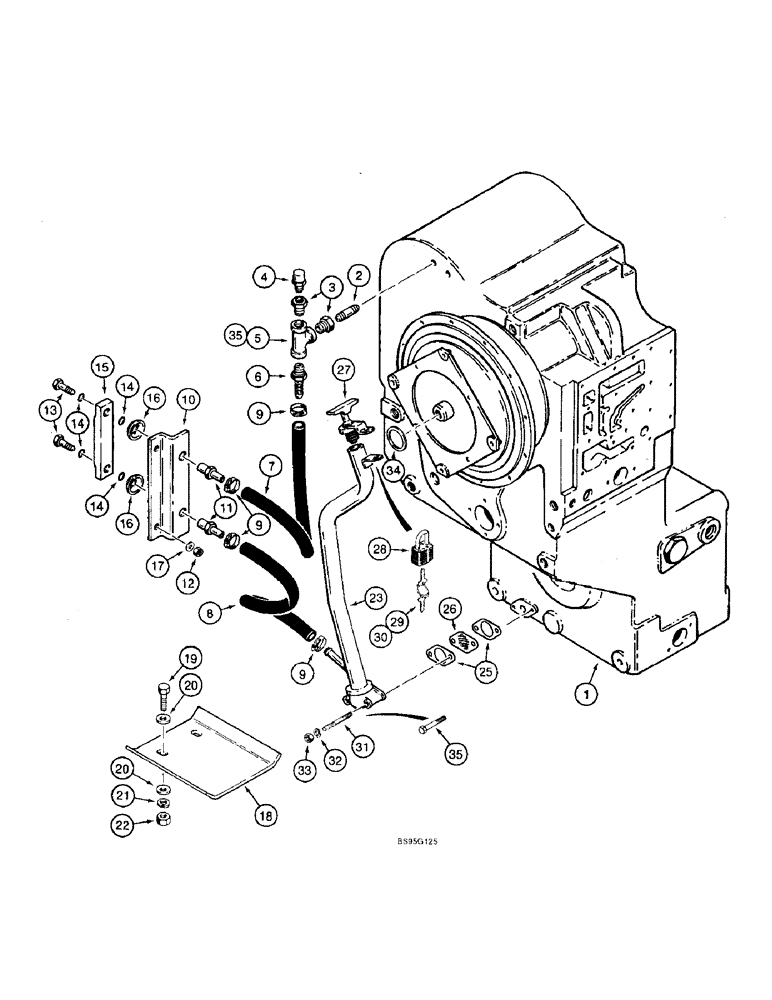

Запчасти Case 821B (6-06) - TRANSMISSION FILL TUBE MOUNTING AND SIGHT GAUGE (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see list on Fig. 6-4 for correct assembly

1шт.

2

221-103

FITTING

NIPPLE - straight, 1/8 PT x 1 inch

1шт.

3

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

- pipe, 3/8 male x 1/8 inch female

2шт.

4

N14704

BREATHER

- included with transmission

1шт.

5

221-423

TEE,3/8" NPT

- pipe, 3/8 inch

1шт.

6

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

ADAPTER - straight, 1/2 barb end x 3/8 inch PT

1шт.

7

L125876

HOSE,12.7 mm ID x 880.00 mm, SAE 100R6

Sight Gauge, Upper 12.7 mm ID x 880.00 mm, SAE 100R6

1шт.

8

L128430

RADIATOR HOSE,12.70 mm ID x 280.00, SAE 100R6

Sight gauge, Lower 12.70 mm ID x 280.00, SAE 100R6

1шт.

9

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

10

L125837

SUPPORT

BRACKET - mounting, sight gauge

1шт.

11

L125836

FITTING

ADAPTER - straight, special

2шт.

12

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

L116247

GAUGE

ASSEMBLY - sight, includes: Ref. 13 - 15

1шт.

13

N13213

BOLT

BOLT - special, sight gauge

2шт.

14

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Sight gauge -112, Cl 7, .487" ID x .103" Thk

4шт.

15

NSS

NOT SOLD SEPARAT

GAUGE - sight, order L116247 sight gauge assembly

1шт.

16

131-141

PUSH-ON NUT,.74", Push-on

2шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

18

L129940

GUARD ASSY.

GUARD - transmission fill tube

1шт.

19

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

20

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

23

L125830

TUBE,31.75 mm OD

- fill, transmission

1шт.

25

237302A1

GASKET

- replaces S300507 gasket

2шт.

26

E135229

FILTER SCREEN

SCREEN - fill tube

1шт.

27

L126498

PLUG

CAP - fill tube

1шт.

28

D93753

PADLOCK

- includes keys, if used, includes: Ref. 29 and 30

1шт.

29

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

1шт.

30

R29555

KEY

- for Master padlock only, if used

1шт.

31

L128820

STUD

- special, if used

2шт.

32

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , If used M8

2шт.

33

825-1408

NUT,M8, Cl 8

If used M8, Cl 8

2шт.

34

L128868

BLOCK

SHIM - 1.0 mm thick

1шт.

34

L128777

SPACER

SHIM - 6.7 mm thick

1шт.

35

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

If used Hex, M8 x 50, 10.9

2шт.
