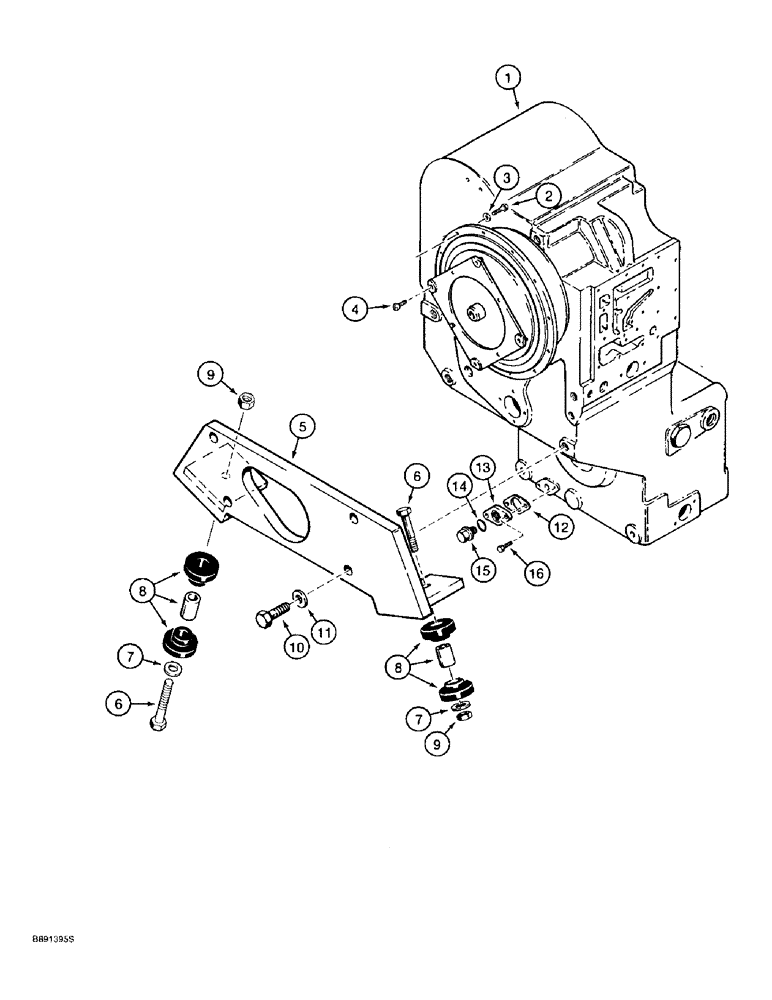

Запчасти Case 821B (6-04) - TRANSMISSION MOUNTING (06) - POWER TRAIN

1

L129917

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 216, includes Ref. 1 and 2 in Fig. 6-3, Ref. 12 - 16 in Fig 6-4 (this Fig.) , Ref. 4 in Fig. 6-6, and all Ref. in Fig. 6-8 - 6-36, no longer available, order 183098A1 transmission for service, Serial Range: -JEE0041789

1шт.

1

LR129917

REMAN-TRANSMISSION

821, PIN JAK0024165 & After, Model Number 4WG200, Stock Number 4644 024 216

1шт.

1

LC129917

CORE-TRANSMISSION

Return Number

1шт.

1

LR129917

REMAN-TRANSMISSION

821B, Prior to P.I.N. JEE0052701, Model Number 4WG200, Stock Number 4644 024 065

1шт.

1

LC129917

CORE-TRANSMISSION

Return Number

1шт.

1

183098A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 065, includes Ref. 1 and 2 in Fig. 6-3, Ref. 12 - 16 in Fig 6-4 (this Fig.) , Ref. 4 in Fig. 6-6, and all Ref. in Fig. 6-8 - 6-36, Serial Range: JEE0041789-JEE0052700

1шт.

1

183098A1R

REMAN-TRANSMISSION

821B CASE WHEEL LOADER (NORTH AMERICA), TRANSMISSION ASSEMBLY, Serial Range: JEE0041789-JEE0052700

1шт.

1

183098A1C

CORE-TRANSMISSION

Return Number

1шт.

1

241954A1

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF No. 4644 024 131, includes Ref. 1 and 2 in Fig. 6-3, Ref. 12 - 16 in Fig 6-4 (this Fig.) , Ref. 4 in Fig. 6-6, and all Ref. in Fig. 6-8 - 6-36, Start Serial: JEE0052701

1шт.

1

241954A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 821B, P.I.N. JEE0052701 & After, Model Number 4WG200, Stock Number 4644 024 065

1шт.

1

241954A1C

CORE-TRANSMISSION

Return number

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Bolt, Hex, M10 x 40, 8.8, Full Thd

12шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER - flat, 13/32 x 13/16 x 3/32", hardened

12шт.

4

L125431

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 8.8

SCREW, hex socket, special, 10 - 1.5 x 35 mm

4шт.

5

L127262

SUPPORT

BRACKET - transmission mounting

1шт.

6

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

BOLT, Hex, 3/4"-10 x 4 1/2", G8

2шт.

7

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

WASHER - flat, 25/32 x 1-3/8 x 1/8 inch, hardened

2шт.

8

L111929

SHOCK ABSORBER

MOUNT - three piece

2шт.

9

131-1400

LOCK NUT,Jam, 3/4"-16

NUT - heavy hex, self-locking, 3/4 inch NC

2шт.

10

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

BOLT - hex, 20 - 2.5 x 55 mm, class 10.9

4шт.

11

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

WASHER, , Flat 13/16" x 1 1/2" x .134", HDN

4шт.

12

S300507

GASKET

GASKET - included with L129917 and 183098A1 transmissions

1шт.

12

237302A1

GASKET

GASKET - included with 241954A1 transmission, replaces S300507 gasket

1шт.

13

S300508

COVER

PLATE - cover, included with transmission

1шт.

14

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

O-RING - included with transmission, used with E135080 plug

1шт.

14

3133948R1

O-RING,2mm Thk x 23mm ID

O-RING - included with transmission, used with E135081 plug

1шт.

15

E135080

PLUG

PLUG - hex, special, 22 x 1.5 mm, included with transmission, L129917 transmission

1шт.

15

E135081

PLUG

PLUG - hex, included with 183098A1 and 241954A1 transmissions

1шт.

16

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 16 mm, included with transmission

2шт.
