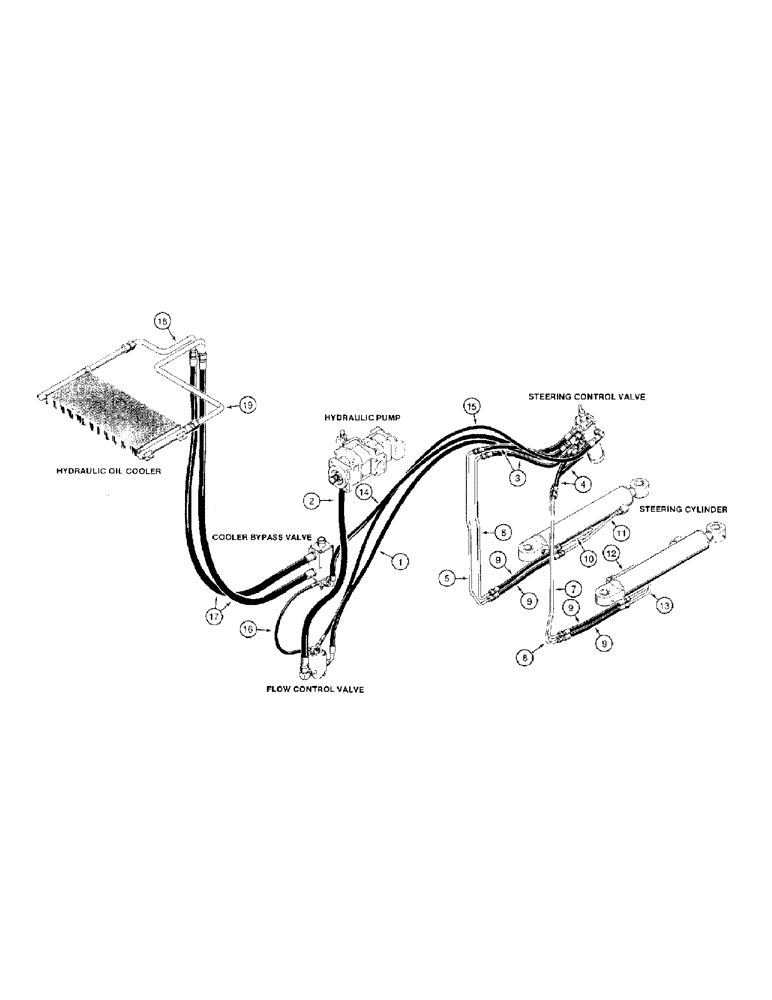

Запчасти Case 821B (1-12) - PICTORIAL INDEX, STEERING AND COOLING HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Steering supply hose, steering Pg. 5-7

1шт.

control valve to flow control valve

1шт.

2

Steering supply hose, flow control Pg. 5-7

1шт.

valve to steering and equipment

1шт.

pump

1шт.

3

Hose, from tee at right-hand upper Pg. 5-9

1шт.

and lower ports on control, Start Serial: valve

1шт.

left-hand steering tubes

1шт.

4

Hose, from tee at right-hand upper Pg. 5-9

1шт.

and lower ports on control, Start Serial: valve

1шт.

right-hand steering tubes

1шт.

5

Left-hand steering tube, from hose Pg. 5-9

1шт.

at tee at right-hand upper port on

1шт.

control valve to hose to rod end of

1шт.

left-hand cylinder

1шт.

6

Left-hand steering tube, from hose Pg. 5-9

1шт.

at tee at right-hand lower port on

1шт.

control valve to hose to closed end

1шт.

of left-hand cylinder

1шт.

7

Right-hand steering tube, from hose Pg. 5-9

1шт.

at tee at right-hand upper port on

1шт.

control valve to hose to closed end

1шт.

of right-hand cylinder

1шт.

8

Right-hand steering tube, from hose Pg. 5-9

1шт.

at tee at right-hand lower port on

1шт.

control valve to hose to rod end of

1шт.

right-hand cylinder

1шт.

9

Hose, from right and left-hand Pg. 5-9

1шт.

steering tubes to tubes at steering

1шт.

cylinders

1шт.

10

Steering tube, left-hand, from Pg. 5-9

1шт.

upper hose to closed end of

1шт.

cylinder

1шт.

11

Steering tube, left-hand, from Pg. 5-9

1шт.

lower hose to rod end of cylinder

1шт.

12

Steering tube, right-hand, from Pg. 5-9

1шт.

upper hose to closed end of

1шт.

cylinder

1шт.

13

Steering tube, right-hand, from Pg. 5-9

1шт.

lower hose to rod end of cylinder

1шт.

14

Return hose from upper left-hand Pg. 5-11

1шт.

port on steering control, Start Serial: valve

1шт.

right-hand port of manifold at

1шт.

cooler bypass valve

1шт.

15

Pilot pressure hose, from elbow at Pg. 5-11

1шт.

port on right-hand side of steering

1шт.

control valve to elbow at upper

1шт.

front port of flow control valve

1шт.

16

Return hose, from elbow at upper Pg. 5-11

1шт.

rear port on flow control, Start Serial: valve

1шт.

rear port of manifold at cooler

1шт.

bypass valve

1шт.

17

Hose, from rear ports of cooler Pg. 5-11

1шт.

bypass valve to tubes at hydraulic

1шт.

oil cooler

1шт.

18

Tube, left-hand, from hose to Pg. 5-11

1шт.

nipple at left-hand port of

1шт.

hydraulic oil cooler

1шт.

19

Tube, right-hand, from hose to Pg. 5-11

1шт.

adapter at right-hand port of

1шт.

hydraulic oil cooler

1шт.
