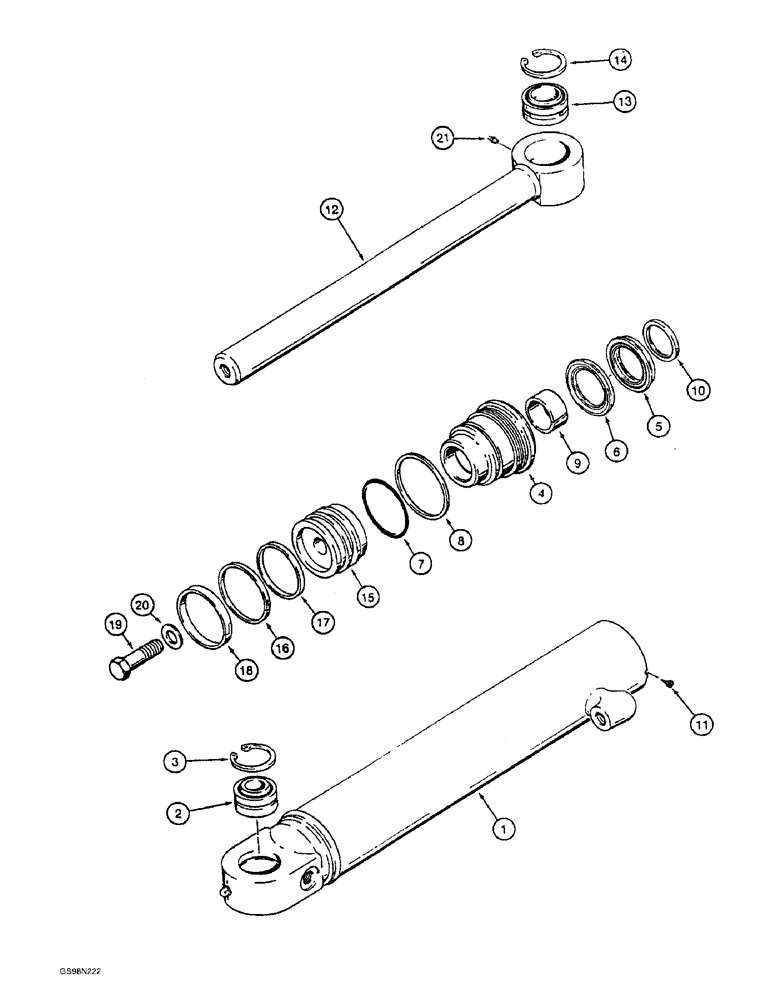

Запчасти Case 821B (5-19A) - STEERING CYLINDER (05) - STEERING

229402A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, 89 (3-1/2) ID x 437 mm (17-3/16 inch) stroke, includes: Ref. 1 - 21

2шт.

1

229871A1

HYD TUBE

TUBE ASSEMBLY - cylinder, includes: Ref. 2 and 3

1шт.

2

R55649

BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W

- self-aligning

1шт.

3

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, , Bushing 3.156", Int, #315

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, includes: Ref. 4 - 10

1шт.

4

1971707C1

CYLINDER END CAP

GLAND - cylinder

1шт.

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Incl Ref 5 and 6

1шт.

5

1542999C1

SEAL

- rod, NSS, order 15432661C seal kit below

1шт.

Part of Seal Kit P/N 1543266C1

1шт.

6

1542998C1

SEALING RING

- buffer, NSS, order 1543266C1 seal kit below

1шт.

Part of KIT, part number 1543266C1

1шт.

7

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

Part of KIT, part number 1543266C1

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup

1шт.

Part of KIT, part number 1543266C1

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of KIT, part number 1543266C1

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - dust, outer

1шт.

Part of KIT, part number 1543266C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8"

1шт.

12

229869A1

PISTON ROD

ROD ASSEMBLY - piston, 45 mm (1-3/4 inch) diameter, includes: Ref. 13 and 14

1шт.

13

R55649

BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W

- self-aligning

1шт.

14

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

2шт.

15

135259A1

PISTON

- cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of KIT, part number 1543266C1

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup

1шт.

Part of KIT, part number 1543266C1

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

Part of KIT, part number 1543266C1

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex, 1 NF x 2-1/2 grade 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, special

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, not included with cylinder

1шт.

1543266C1

SEAL KIT

KIT - seal, includes Refs. 5, 6, 7, 8, 9, 10, 16, and 18 and an instruction sheet

1шт.
