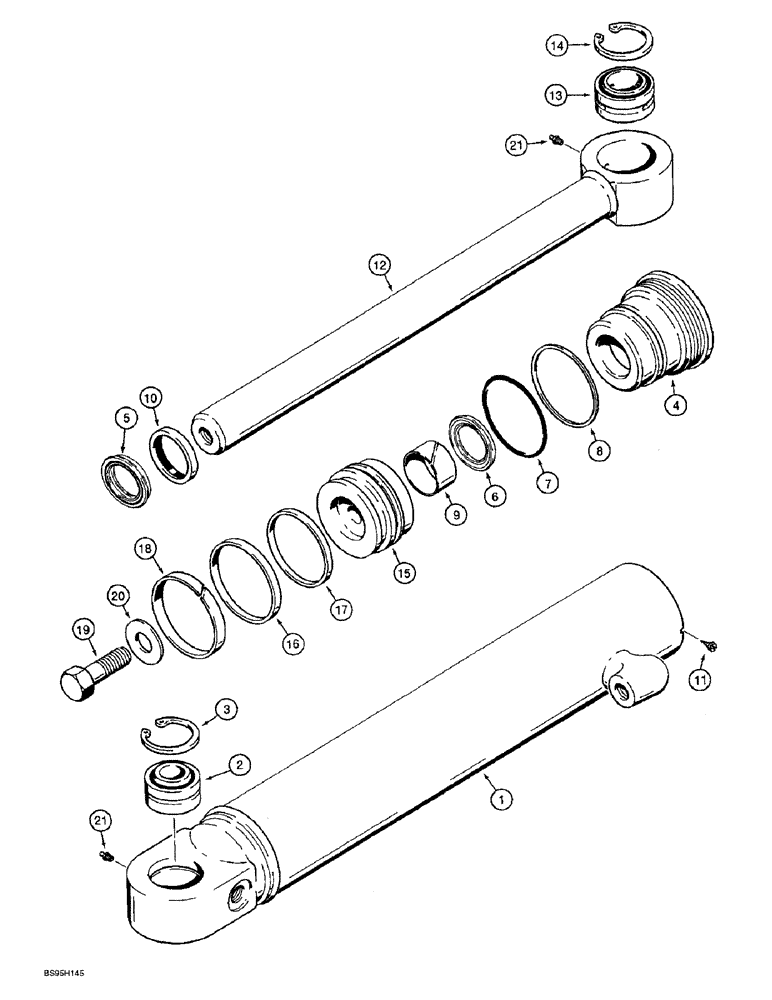

Запчасти Case 821B (5-18) - STEERING CYLINDER (05) - STEERING

1986978C1

CYLINDER

89 (3-1/2) I.D. x 437 mm (17-3/16 inch) stroke, includes: Ref. 1 - 20

2шт.

Cylinder Assy. part # for this figure should be 1986978C1, not 229402A1

1шт.

1

G110661

JACK BODY,88.77 mm ID x 660.7 mm L

TUBE - cylinder, includes: Ref. 2 and 3

1шт.

2

1343679C1

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 52.38mm W

- spherical

1шт.

3

102-23218

SNAP RING,#218, 2.321", Int, Spiral

RING - internal spiral retaining, No. 218, bushing

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder

1шт.

4

G110108

GLAND

- cylinder, includes: Ref. 4 - 10

1шт.

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Incl Ref 5 and 6

1шт.

5

1542999C1

SEAL

- rod, NSS, see below

1шт.

Part of KIT, part number 1543266C1

1шт.

6

1542998C1

SEALING RING

- buffer, NSS, see below

1шт.

Part of KIT, part number 1543266C1

1шт.

7

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

Part of KIT, part number 1543266C1

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup

1шт.

Part of KIT, part number 1543266C1

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of KIT, part number 1543266C1

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - dust, outer

1шт.

Part of KIT, part number 1543266C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 x 3/8 "

1шт.

12

1986979C1

PISTON ROD

ROD - piston, 45 mm (1-3/4) diameter, includes: Ref. 13 and 14

1шт.

13

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

- self-aligning

1шт.

14

102-23218

SNAP RING,#218, 2.321", Int, Spiral

RING - internal spiral retaining, No. 218

2шт.

15

1986982C1

PISTON

- cylinder, if used

1шт.

15

135258A1

PISTON ASSY.

PISTON - cylinder, not shown

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of KIT, part number 1543266C1

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup

1шт.

Part of KIT, part number 1543266C1

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

Part of KIT, part number 1543266C1

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex, 1 NF x 2-1/2; 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, special

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch, not included with cylinder

2шт.

1543266C1

SEAL KIT

KIT - seal, includes Refs. 5-10 and 16-18 and an instruction sheet

1шт.
