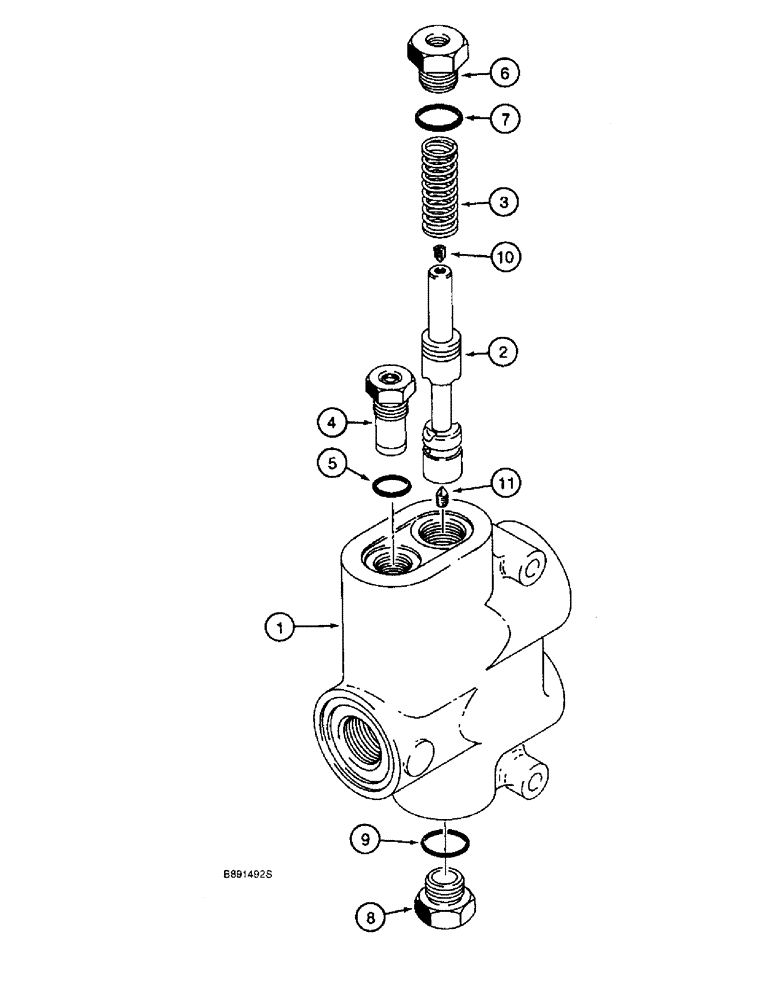

Запчасти Case 821B (5-16) - FLOW CONTROL VALVE - L126106 (05) - STEERING

L126106

VALVE

ASSEMBLY - flow control, includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - flow control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - flow control valve

1шт.

3

S114008

SPRING

- centering, spool

1шт.

S113025

CARTRIDGE

VALVE ASSEMBLY - relief, includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve, component parts not serviced separately

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

S300790

FITTING

PLUG - flow control valve

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Incl. Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

S300791

SCREW

- set, special, upper

1шт.

11

S300792

SCREW

- set, special, lower

1шт.
