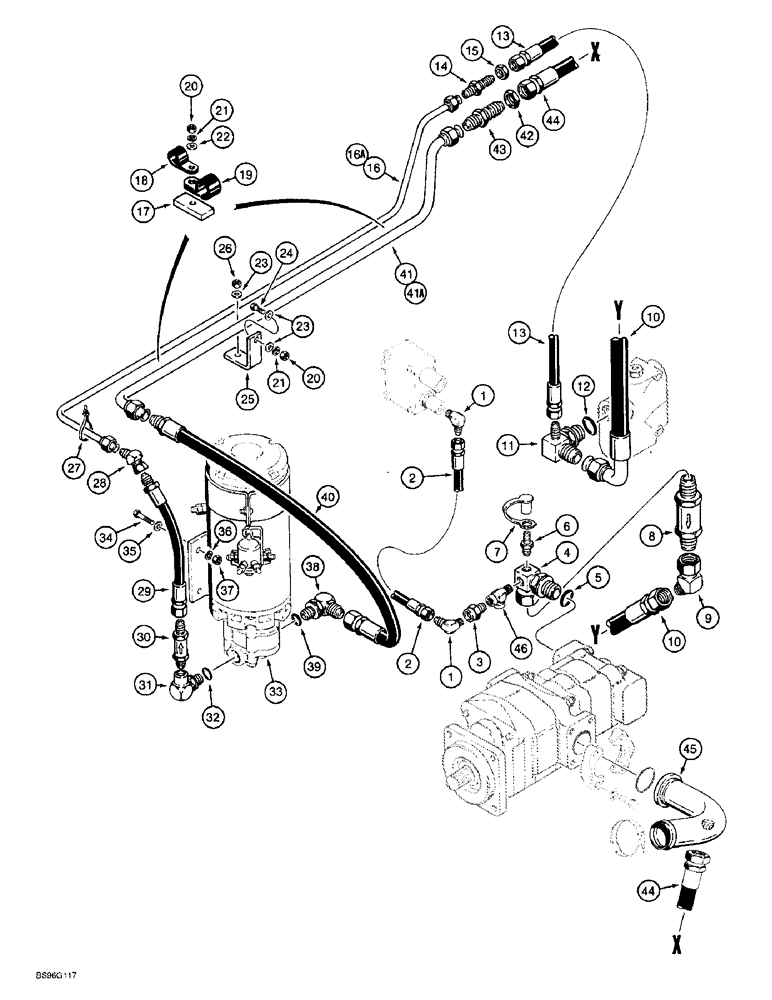

Запчасти Case 821B (5-12) - AUXILIARY STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 7/16-20 flare x 1/4 inch PT, see Fig. 4-34, Ref. 18, auxiliary steering pressure switch

2шт.

2

101501A1

HOSE ASSY.

HOSE - 1170 mm (46-1/16 inch) long, pressure, switch to hydraulic pump

1шт.

3

L129369

CONNECTOR, ELEC

SNUBBER - pressure reducing, used on models, Serial Range: -JEE0042310

1шт.

4

L129995

FITTING

MANIFOLD - special fitting, at hydraulic pump, includes: Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

H434164

COUPLING

COUPLER - quick check

1шт.

7

H434163

DUST CAP

CAP - dust

1шт.

8

L59608

LOCK VALVE

VALVE - check to JEE0053038

1шт.

8

325661A1

VALVE, CHECK

VALVE - check, Start Serial: JEE0053038

1шт.

9

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, 1-5/16-12 inch flare x swivel

1шт.

10

L129996

HOSE

- 520 mm (20-1/2 inch) long, pressure

1шт.

11

109869A1

FITTING

MANIFOLD - special fitting, includes: Ref. 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

13

W11468

HOSE

- 737 mm (29 inch) long

1шт.

14

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

1шт.

15

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

16

L129989

PIPE ASSY.

TUBE - pressure, to auxiliary steering pump, pressure to auxiliary steering pump, Serial Range: -JEE0052701

1шт.

16a

246474A1

TUBE,12.7 mm OD, 1110, 183 mm Length

- pressure, to auxiliary steering pump, Start Serial: JEE0052701

1шт.

17

L119350

SPACER

- brackets to rear frame

2шт.

18

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Pressure tube 1/2", Insul, 1/2" Bolt

2шт.

19

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Suction tube 3/4", Insul, 3/8" Bolt

2шт.

20

425-106

NUT,3/8"-16, Cl 5

3шт.

21

492-11038

LOCK WASHER,3/8"

3шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

24

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

25

L129998

SUPPORT

BRACKET - mounting

1шт.

26

425-106

NUT,3/8"-16, Cl 5

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

28

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel

1шт.

29

L129993

HOSE ASSY.

HOSE - 410 mm (16-1/8 inch) long, pressure tube, to auxiliary steering pump

1шт.

30

L70819

VALVE

- check, Serial Range: -JEE0053038

1шт.

30a

231681A1

CHECK VALVE

VALVE - check, replaces L70819 check valve on models, not shown JEE0053038 to

1шт.

30b

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, Ref 29, Ref 30C 3/4"-16, 37º x 7/8"-14, O-Ring, Start Serial: JEE0053038

1шт.

30c

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

218-5460

FITTING

ELBOW - 90 degree, 3/4-16 adj O-ring x 1/2 inch female PT, used with L116118 pump and motor assembly, includes: Ref. 32, Serial Range: -JEE0053038

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

31

231830A1

ELBOW

- 90 degree, used with 197540A1 pump and motor assembly, includes: Ref. 32, Start Serial: JEE0053038

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

L116118

PUMP, HYDRAULIC

PUMP AND MOTOR ASSEMBLY - auxiliary steering, parts list Fig. 5-14, Serial Range: -JEE0053038

1шт.

33

197540A1

PUMP, HYDRAULIC

PUMP AND MOTOR ASSEMBLY - auxiliary steering, Start Serial: JEE0053038

1шт.

34

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

4шт.

35

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

36

492-11038

LOCK WASHER,3/8"

4шт.

37

425-106

NUT,3/8"-16, Cl 5

4шт.

38

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring boss, used with L116118 pump and motor assembly, includes: Ref. 39, Serial Range: -JEE0053038

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, used with 197540A1 pump and motor assembly, Incl. Ref. 39, Start Serial: JEE0053038

1шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

40

L129992

HOSE ASSY.

HOSE - 710 mm (28 inch) long, suction, auxiliary steering pump to suction tube

1шт.

41

L129991

PIPE ASSY.

TUBE - suction, auxiliary steering pump to hydraulic pump inlet, Serial Range: -JEE005270

1шт.

41a

246475A1

HYD TUBE

TUBE - suction, auxiliary steering pump to hydraulic pump inlet, Start Serial: .JEE0052701

1шт.

42

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

43

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ

1шт.

44

L129997

HOSE

- 1000 mm (39-3/8 inch) long, suction, to hydraulic pump inlet tube

1шт.

45

L125583

TUBE

- suction, use on models with auxiliary steering

1шт.

46

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- street, 1/4 inch female PT branch x female PT x PT

1шт.
