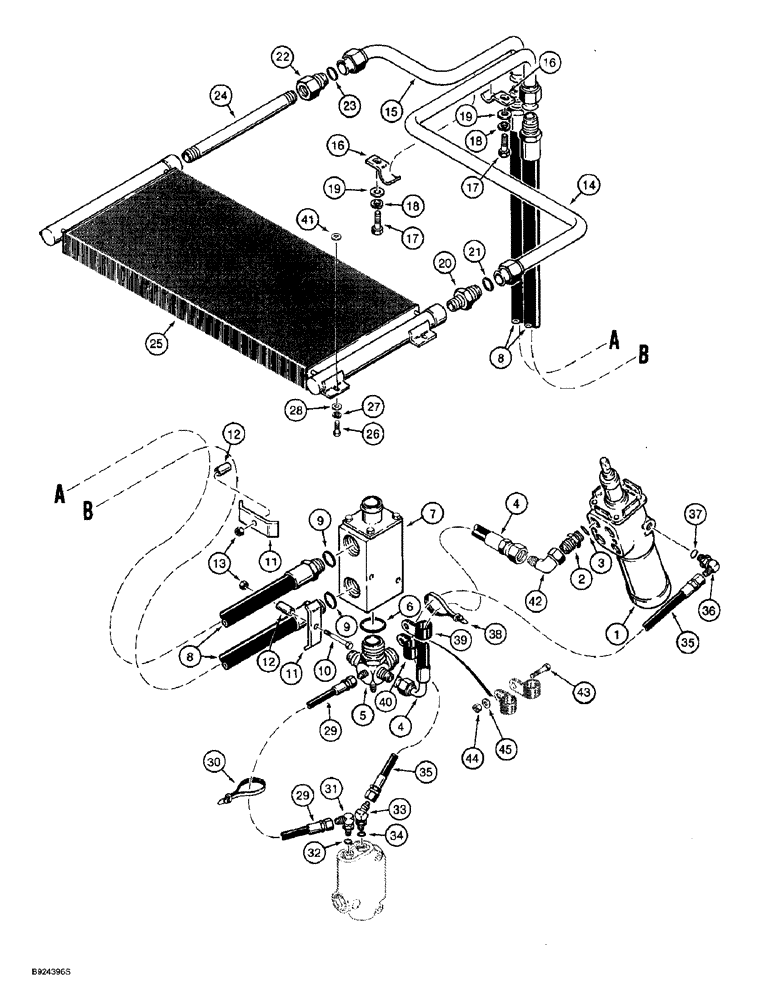

Запчасти Case 821B (5-10) - STEERING HYDRAULIC CIRCUIT, RETURN LINE AND COOLER (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, steering, for correct assembly see Fig. 5-2 and page 5-3B

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

111221A1

HOSE ASSY.

HOSE - 1090 mm (43 inch) long, return, at control valve

1шт.

5

108748A1

FITTING

MANIFOLD - special, at cooler bypass valve

1шт.

See figure 7-12, Ref. 18 for the hose and fitting that comes off the bottom of Ref. 5

1шт.

6

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

7

L110287

VALVE,1-7/8" - 12

ASSEMBLY - parts list Fig. 8-44

1шт.

8

L128005

HOSE

- 1475 mm (58 inch) long, cooler bypass valve to hydraulic oil cooler

2шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

10

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

- hex, 3/8 NC x 2-1/2 inch, grade 8

1шт.

11

R34049

CLAMP

- hose

2шт.

12

A27328

SPACER

- hose

2шт.

13

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

14

L128002

PIPE,25.4 mm OD

TUBE - hydraulic oil cooler, right-hand

1шт.

15

L128000

PIPE,25.4 mm OD

TUBE - hydraulic oil cooler, left-hand

1шт.

16

S82847

CLAMP

- tube

2шт.

17

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

19

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

20

L128003

ADAPTER

- straight, special, male

1шт.

21

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Face seal -020, 90 Duro, .864" ID x .070" Thk

1шт.

22

L128004

ADAPTER

- straight, special, female

1шт.

23

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Face seal -020, 90 Duro, .864" ID x .070" Thk

1шт.

24

221-258

PIPE,Nipple, 1" NPT x 11/2"

1шт.

25

L125999

OIL COOLER

COOLER - hydraulic oil

1шт.

26

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

27

492-11038

LOCK WASHER,3/8"

4шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

29

D95111

HOSE

- 584 mm (23 inch) long, return, flow control valve to cooler bypass valve

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

31

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss

1шт.

32

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

33

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, 7/16-20 inch flare x adj O-ring boss

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

35

111227A1

HOSE ASSY.

HOSE - 1520 mm (60 inch) long, flow control valve to steering valve

1шт.

36

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss

1шт.

37

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

39

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type, Hose 15/16", Insul, 3/8" Bolt

1шт.

40

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Hose 1 1/2", Insul, 3/8" Bolt

1шт.

41

R24323

WASHER

- flat, special, cooler

4шт.

42

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- 45 degree, 7/8-14 inch flare x swivel

1шт.

43

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

44

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.
