Запчасти Case 821B (5-08) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

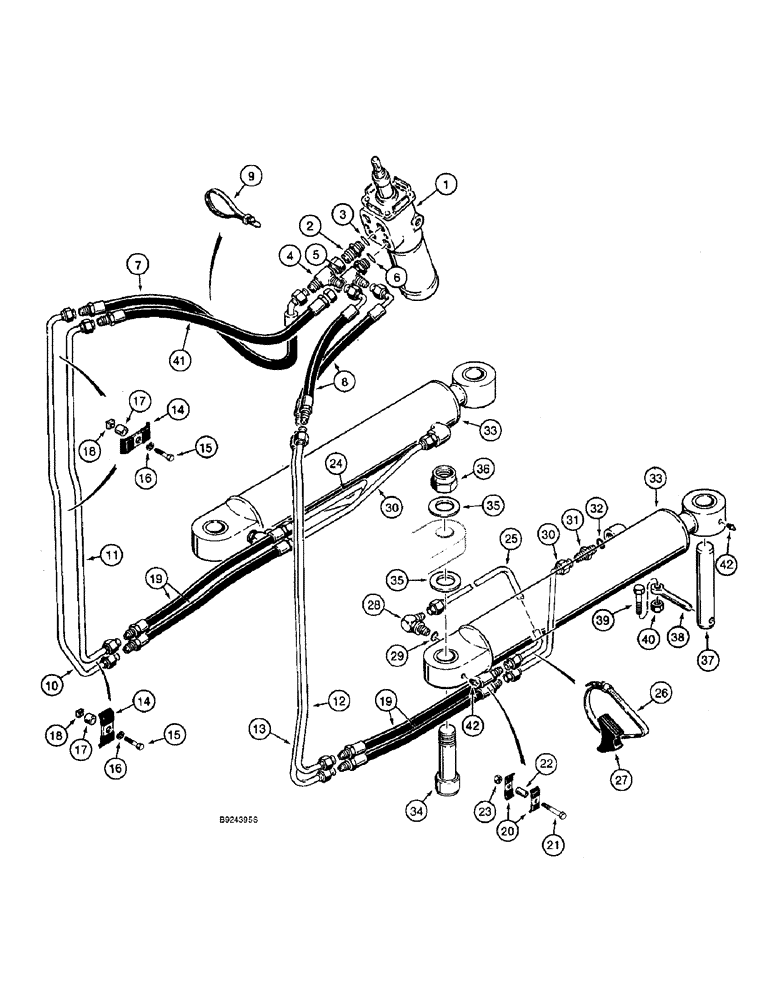

Схема запчастей Case 821B - (5-08) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING
8
12
24
3
20
4
14
17
19
22
14
26
42
35
38
35
19
42
28
1
36
27
32
29
16
13
18
39
2
40
30
31
33
18
41
7
5
37
23
33
15
10
6
11
25
17
21
9
16
30
34
15

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, steering, see Fig. 5-2 and page 5-3B

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl.: Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

5

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, includes: Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

111224A1

HOSE ASSY.

HOSE - 680 mm (26-3/4 inch) long, left-hand cylinder, valve upper, Serial Range: port-tubes.

1шт.

8

111226A1

HOSE ASSY.

HOSE - 590 mm (23-1/4 inch) long, right-hand cylinder, Serial Range: valve-tubes

2шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

10

L125316

PIPE,15.9 mm OD x 634, 513 mm L

TUBE - steering, upper left-hand, to rod end of cylinder

1шт.

11

L125318

PIPE,15.9 mm OD x 797, 168 mm L

TUBE - steering, lower left-hand, to closed end of cylinder

1шт.

12

L125322

PIPE,15.9 mm OD x 702, 329 mm L

TUBE - steering, upper right-hand, to closed end of cylinder

1шт.

13

L125320

PIPE

TUBE - steering, lower right-hand, to rod end of cylinder

1шт.

14

D40236

CLAMP

- tube

6шт.

15

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

6шт.

16

492-11038

LOCK WASHER,3/8"

6шт.

17

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- tubes

6шт.

18

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

6шт.

19

L125323

HOSE,12.7mm ID x 475mm L, SAE 100R2

- 475 mm (18-3/4 inch) long, tubes from valve to tubes at cylinders

4шт.

20

D40236

CLAMP

- hose

4шт.

21

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

22

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

- tube clamp, hose, at tubes to cylinders, if used

2шт.

22

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- split, 22 mm (7/8 inch) long, hose, at tubes to cylinders, if used

2шт.

23

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

24

L125544

PIPE,12.7 mm OD x 318, 105 mm L

TUBE - left-hand, to closed end of cylinder

1шт.

25

L125548

PIPE,12.7 mm OD

TUBE - right-hand, to closed end of cylinder

1шт.

26

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj., Tube to cylinder #72, 4.06/5.00 Type F Worm

2шт.

27

D38648

BLOCK

SPACER - rubber, clamp

2шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, includes: Ref. 29

2шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

L125325

PIPE,12.7 mm OD x 250, 141 mm L

TUBE - right-hand and left-hand cylinders, to rod end

2шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ELBOW - 90 degree, 7/16-20 inch flare x adj O-ring boss

2шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, parts list Fig. 5-18

2шт.

34

L125887

PIN

- mounting, 113 mm long, closed end, if used

2шт.

If the hole has become oval and part number L129696 no longer works, there is a substituted part. Reference 187152A1 quality comments in GPN for information. Use expander pin when cylinder bore is worn, 187152A for rear.

1шт.

34

L129696

PIN,34.92mm OD x 152mm L

- Threaded mounting, 123 mm long, closed end, if used

2шт.

If the hole has become oval and part number L129696 no longer works, there is a substituted part. Reference 187152A1 quality comments in GPN for information. Use expander pin when cylinder bore is worn, 187152A for rear.

1шт.

34

L129129

PIN,50.76mm OD x 172mm L

- steering, Tear Drop Head

1шт.

If the hole has become oval and part number L129696 no longer works, there is a substituted part. Reference 187152A1 quality comments in GPN for information. Use expander pin when cylinder bore is worn, 187152A for rear.

1шт.

35

L125890

WASHER

- flat, special, hardened

4шт.

36

L129389

LOCK NUT

NUT - hex, self-locking, 1-3/8 inch NF

2шт.

37

L125419

PIN,34.92mm OD x 195mm L

- mounting, rod end

2шт.

38

R17756

ROD,12.7mm OD x 109.54mm L

PIN - retaining, mounting pin

2шт.

39

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

40

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

41

111225A1

HOSE ASSY.

HOSE - 595 mm (23-1/2 inch) long, left-hand cylinder, valve lower, Serial Range: port-tubes

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

4шт.

Выбрано товаров: 48
