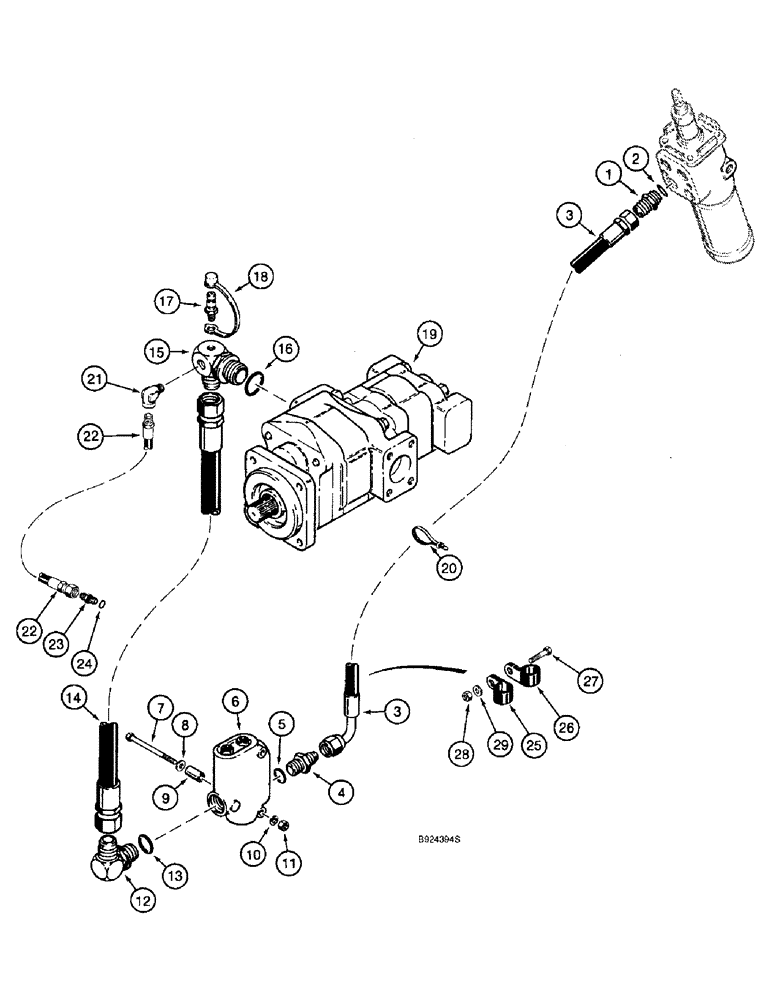

Запчасти Case 821B (5-06) - STEERING HYDRAULIC CIRCUIT, PUMP TO STEERING CONTROL VALVE & PRESSURE REDUCING VALVE (05) - STEERING

1

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

111222A1

HOSE ASSY.

HOSE - 1522 mm (60 inch) long, hose at flow control valve to steering control valve

1шт.

4

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, includes: Ref. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

L126106

VALVE

ASSEMBLY parts list Fig. 5-16

1шт.

7

426-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 8

hex, 5/16 NC x 4-1/4 inch, grade 8

4шт.

8

D41740

WASHER

- flat, special, 3/8 inch

2шт.

9

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- valve

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

12

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj. O-ring boss, Incl. Ref. 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

14

L125849

HOSE

- pressure, pump to flow control valve, 535 mm (21 inch) long

1шт.

15

111351A1

ELBOW

- 90 degree, special, includes: Ref. 16

1шт.

16

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

17

H434164

COUPLING

COUPLER - quick check

1шт.

18

H434163

DUST CAP

CAP - dust

1шт.

19

L126103

PUMP, HYDRAULIC,5.4 CC

ASSEMBLY equipment and steering, parts list Fig. 8-20

1шт.

L126103R

REMAN-HYD PUMP

821B

1шт.

L126103C

CORE-HYDRAULIC PUMP

Return Number

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

22

109057A1

HOSE ASSY.

HOSE - pump to pressure reducing valve, 1520 mm (60 inch) long

1шт.

See figure 8-68 for pressure reducing valve and return to reservoir.

1шт.

Hose only 588 mm length per print, not 1520 mm per catalog

1шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 24

1шт.

25

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Hose 1 1/2", Insul, 3/8" Bolt

1шт.

26

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type, Hose 15/16", Insul, 3/8" Bolt

1шт.

27

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

28

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
